An oversized black 8′ × 8′ single-swing aluminum gate with a clean horizontal slat design.
The ALU20 Black 8′ × 8′ Universal DIY Pedestrian Gate Kit is a large-format single-swing aluminum entry system for homeowners, contractors and designers who want a modern horizontal-slat gate without welded field fabrication. It combines a pre-engineered universal frame, 6063-T6 aluminum, ALU20 horizontal slats, architectural powder coating and a wall-to-wall installation format.
View specifications ↓ View product photos ↓
Gate size8′ wide × 8′ high
OperationSingle swing
Slat gap3/8″ or 1/2″
Standard colorBlack
See the exact frame, slat system, finish and installation details shown on this product page.
Explore the Universal DIY frame concept, ALU20 compatibility, exterior finish, hinge support and finished aluminum construction from multiple views.
Full-frame strengthUniversal DIY frame
Universal slat compatibilityALU20 horizontal system
Long-lasting powder coatExterior black finish
Reinforced hinge supportSingle-swing hardware
Premium aluminum construction6063-T6 system
Easy DIY installationPre-engineered assembly
Pre-engineered aluminum components for a large 8′ × 8′ opening, without welded field fabrication.
The Universal DIY platform is built to simplify the path from measured opening to finished pedestrian gate while maintaining the clean horizontal appearance of the ALU20 system.
Built for DIYThe frame is designed to assemble quickly and cleanly using factory-prepared aluminum components. Universal compatibilityThe wide side frame supports common U.S.-size lock hardware and coordinates with the ALU20 system. Exterior-ready aluminum6063-T6 aluminum and AAMA 2604 architectural powder coating provide a low-maintenance exterior material platform.The ALU20 Black 8′ × 8′ Universal DIY gate at a glance.
This configuration is an 8-foot-wide by 8-foot-high single-swing aluminum gate with black ALU20 horizontal slats and a choice of 3/8-inch or 1/2-inch spacing. It is designed for wall-to-wall installation and requires careful hinge-side support, accurate squaring and controlled swing clearance because of the larger leaf size.
Installation requirement: The standard Universal DIY configuration is wall-to-wall only. Concrete-footing installations require an HD post upgrade that must be requested for the project.- Product
- ALU20 Black Universal DIY Pedestrian Gate Kit
- Gate type
- Pedestrian / single-swing aluminum gate
- Finished size
- 8′ wide × 8′ high
- Slat gap
- 3/8″ or 1/2″
- Material
- USA-made 6063-T6 aluminum
- ALU20 slats
- ALU20 horizontal aluminum slats sized for the 8′ × 8′ gate configuration
- Finish
- Architectural powder coating
- Coating standard
- AAMA 2604
- Paint brands
- Cardinal Paint / TIGER
- Standard color
- Black
- Custom colors
- Available upon request
- Combustibility
- Non-combustible aluminum substrate
- Ignition behavior
- Does not burn under normal fire conditions
- Melting point
- Approximately 615–655 °C
- Smoke developed
- 0, as listed in the material specification
- Installation
- Wall-to-wall installation only
- Concrete footing
- Not included; HD post upgrade required
- DIY skill level
- Intermediate
- Tools
- Not included
A coordinated 8′ × 8′ gate package built around the Universal DIY frame.
The product configuration centers on a pre-engineered aluminum frame and black ALU20 horizontal slats. Hinge, lock, receiver and post requirements should be confirmed for the selected mounting condition before ordering.
Universal aluminum gate frame
The pre-engineered frame includes the wide lock side plus top and bottom frame components used to create the 8′ × 8′ single-swing gate structure.
Wide lock side frame
The side frame is designed around common U.S.-size lock hardware so latch and handle planning can be integrated into the gate.
Closing-side planning
Confirm the stopper, receiver and latch condition required for the finished wall-to-wall opening before assembly.
Receiver-side components
Receiver-side hardware and support should match the wall construction, latch choice and finished clearance of the 8-foot leaf.
Hinge hardware
Hinge selection must be matched to the final 8′ × 8′ leaf, mounting substrate and required swing. Confirm the correct support hardware before ordering.
Black ALU20 horizontal slats
The ALU20 infill is configured for the 8′ × 8′ gate and can be laid out with either 3/8-inch or 1/2-inch spacing, depending on the selected privacy and airflow level.
Why this 8′ × 8′ configuration
More coverage and privacy while keeping the Universal DIY assembly approach.
At eight feet wide and eight feet high, this is a large single-swing access gate with significantly more leaf area than a typical pedestrian gate. The horizontal ALU20 layout keeps the design architectural, while the selectable slat gap balances privacy and airflow. The larger size also makes opening geometry, hinge support, mounting substrate and wind exposure especially important during project planning.
8′ × 8′ large-format gate Single-swing operation 3/8″ or 1/2″ gap Black architectural finish 6063-T6 aluminum Non-combustible substrate DIY-oriented assembly Large-leaf support planning Low routine maintenanceAdditional views of the ALU20 8′ × 8′ gate system.
Open any image to inspect the gate system in the built-in lightbox without leaving the product page.

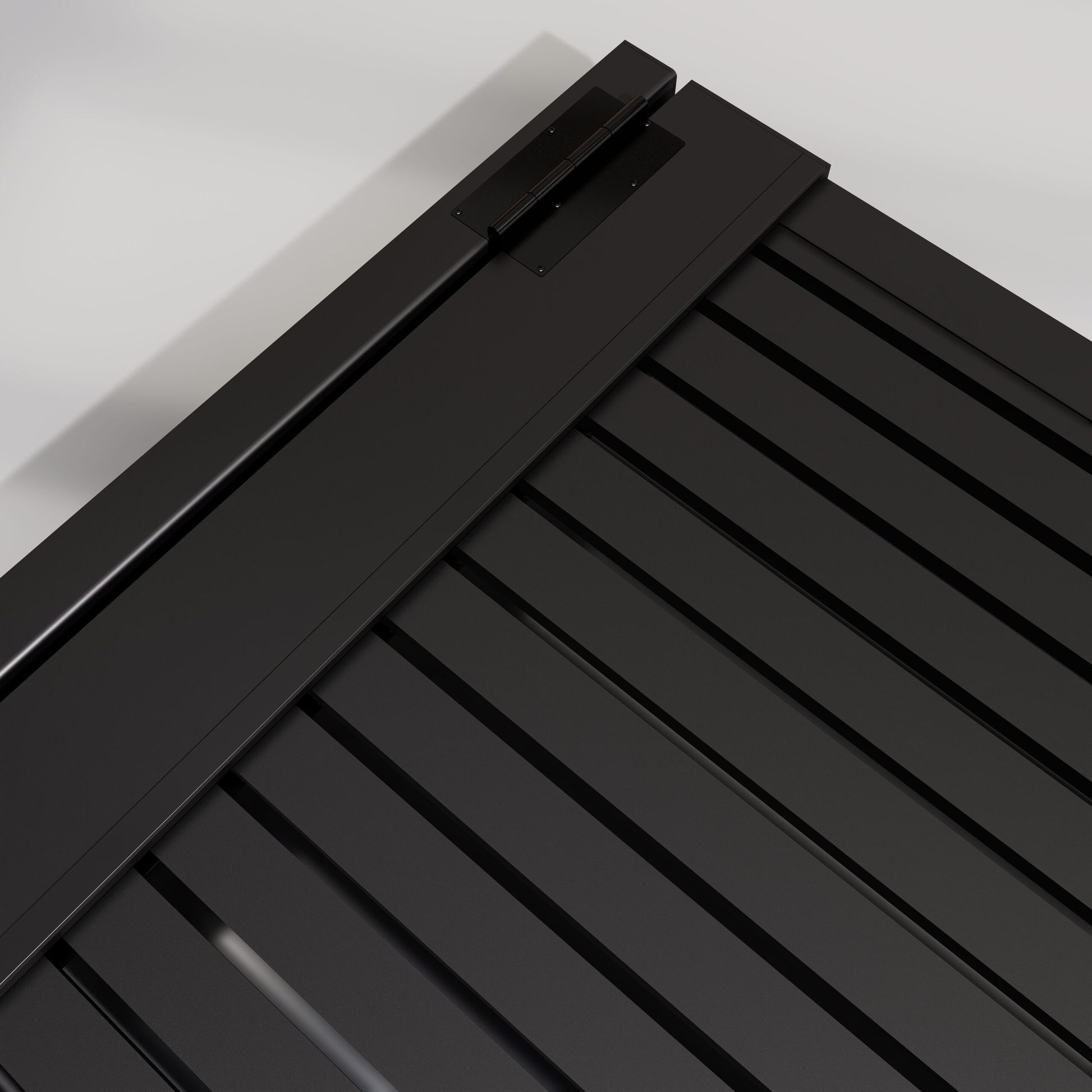

ALU20 8′ × 8′ gate view 01Product view
ALU20 8′ × 8′ gate view 02Product view
ALU20 8′ × 8′ gate view 03Product view
ALU20 8′ × 8′ gate view 04Product view
ALU20 8′ × 8′ gate view 05Product view
ALU20 8′ × 8′ gate view 06Product view
ALU20 profile details and installation reference.
Use the profile drawings to understand the ALU20 geometry and component relationship. Final gate measurements, hinge placement and site conditions should be confirmed for the specific ordered configuration before assembly.
ALU20 profile2D and 3D technical view
ALU20 constructionExploded component render
Installation referenceConfirm ordered dimensions before assemblyBuilt for pedestrian openings where privacy, width and modern curb appeal all matter.
The 8′ × 8′ format is intended for projects that need a wide, tall single-swing opening and have a wall-to-wall mounting condition capable of supporting the larger gate leaf.
Wide residential entries
Create a tall, wide modern entrance with an eight-foot profile and a clean horizontal aluminum rhythm.
Large side-yard access
Use the wide eight-foot opening where larger pedestrian access, equipment movement or broader clearance is required.
Courtyards and garden access
Coordinate the black gate with contemporary landscape walls, fencing and exterior architecture.
Multi-unit properties
Use a low-maintenance aluminum pedestrian gate where clean appearance and regular access are priorities.
Light-commercial access
A wide architectural access gate for suitable wall-to-wall openings where the supporting structure and hardware are engineered for the larger leaf.
Coastal and humid climates
Aluminum avoids iron-oxide rust and is well suited to environments where steel maintenance can become a recurring issue.
Aluminum performance without the rust, rot and repainting cycle of many traditional gate materials.
The frame and slats use 6063-T6 architectural aluminum with an AAMA 2604 powder-coated finish. The black finish is intended for exterior exposure, while the aluminum substrate does not rust like iron-based metal and will not rot, swell or splinter like wood.
6063-T6 aluminumA strong, workable architectural aluminum alloy used throughout the gate system. AAMA 2604 finishArchitectural powder-coating performance for long-term exterior color and surface protection. Non-combustible substrateThe aluminum itself does not ignite or sustain flame under normal fire exposure.A clear six-step path from measured opening to aligned single-swing gate.
DIY does not mean guesswork. Confirm the opening and mounting condition first, then keep the frame square throughout assembly and hardware installation.
Verify the opening
Measure the opening at the top, middle and bottom and confirm wall-to-wall mounting surfaces are plumb, solid and suitable for the selected hardware.
Assemble the frame
Lay out the universal frame components on a protected flat surface and assemble the structure while checking diagonals for square.
Install ALU20 slats
Place the horizontal slats consistently using the selected 3/8-inch or 1/2-inch spacing and secure them according to the gate system hardware.
Set hinge hardware
Position the heavy-duty hinge system for the required swing direction and verify that the mounting side can carry the assembled gate.
Set the receiver side
Install and align the receiver-side components, latch or lock hardware, T-stopper and L-stopper for clean closure.
Align and test
Check clearances, fasteners, latch engagement and smooth swing through the full arc before putting the gate into regular service.
Confirm the opening, gap, swing and hardware before the gate arrives.
The Universal DIY system simplifies fabrication, but an 8′ × 8′ single-swing leaf demands especially accurate site measurements, strong mounting surfaces, appropriate hinge hardware and enough clear swing area.
Measure wall to wall
Confirm the finished opening at multiple heights and account for hinge, latch and receiver-side clearances.
Select the gap
Choose 3/8-inch for a tighter visual rhythm or 1/2-inch for slightly more openness and airflow.
Confirm swing direction
Plan whether the gate swings in or out based on available clearance, traffic flow and local requirements.
Plan lock hardware
Confirm the latch or lock body, handle clearance and backset before final assembly of the wide side frame.
Account for leaf size and wind
An 8′ × 8′ single-swing gate has substantial surface area. Verify hinge capacity, substrate strength, swing clearance and expected wind exposure before installation.
Confirm mounting condition
The standard configuration is wall-to-wall. Concrete-footing projects require the HD post upgrade and should be specified before ordering.
See the Universal DIY gate system in motion.
Watch the Universal DIY gate system and additional Aluglobus gate footage for a closer look at the aluminum profiles, assembly approach and finished design language.
An 8′ × 8′ black single-swing gate for customers who want to assemble the system, not fabricate it.
Confirm the wall-to-wall opening, 3/8-inch or 1/2-inch slat gap, swing direction, lock hardware and hinge requirements before ordering. For concrete-footing or nonstandard conditions, request the correct HD post configuration.
Request project support ↗Call (888) 876-3006Answers before you assemble the 8′ × 8′ gate.
Common questions about the package, aluminum construction, installation, finish, gap options and ALU20 compatibility.
What is included in the ALU20 Universal DIY 8′ × 8′ kit?
The Elementor product content identifies a pre-engineered aluminum frame and ALU20 horizontal slats as the core kit components. Hinge, lock, receiver and post hardware should be confirmed for the selected installation condition before ordering.Is the aluminum gate rust-proof?
The 6063-T6 aluminum does not develop iron-oxide rust like steel. The architectural powder coating adds exterior surface protection. Routine cleaning is still recommended, especially in coastal environments.Can I install the gate myself?
Yes. The system is designed for DIY assembly and is listed at an intermediate DIY skill level. Accurate measurement, frame squaring, drilling, fastening and hinge alignment are still important.What is the difference between the 3/8-inch and 1/2-inch gap?
The 3/8-inch option creates a tighter slat rhythm with slightly more visual coverage. The 1/2-inch option creates a little more openness and airflow. Choose based on privacy and design preference.How long will the powder-coated finish last?
The gate uses an AAMA 2604 architectural powder-coated finish intended for long-term exterior exposure. Actual appearance over time depends on climate, cleaning, physical wear and site conditions.Does this gate match other ALU20 products?
Yes. The ALU20 horizontal slat language is designed to coordinate across compatible Aluglobus aluminum fence and gate systems for a consistent property-wide appearance.What should I check because this is an 8′ × 8′ single-swing gate?
Confirm that the hinge-side wall or support is capable of carrying the large leaf, that the full swing path is clear, and that wind exposure and latch-side alignment have been considered. Large single-swing gates place more demand on mounting hardware than smaller pedestrian gates.Can this standard gate be installed with posts set in concrete?
The standard Universal DIY specification is wall-to-wall only. A concrete-footing condition requires the HD post upgrade and should be requested before ordering.Can the gate be self-closing?
Self-closing hardware must be selected for the actual 8′ × 8′ leaf weight, geometry and mounting condition. Confirm the appropriate closer or hinge solution with the project requirements before purchase.Send the opening dimensions and photos. Confirm the correct 8′ × 8′ DIY gate package before ordering.
