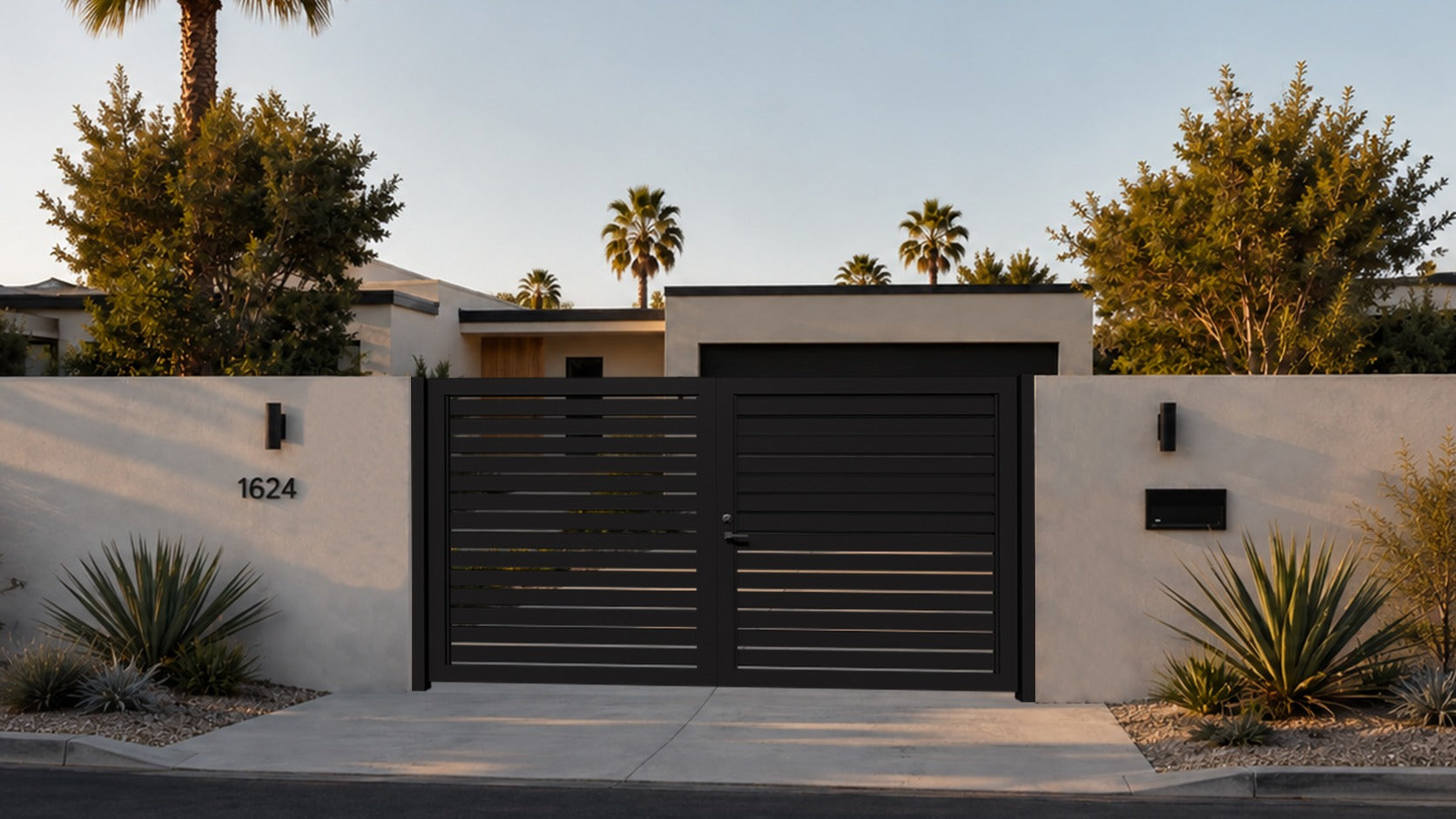

A 12′ × 6′ black ALU40 double-swing gate built around a 4″ heavy-duty contractor frame.
The ALU40 Contractor Line 12′ × 6′ Double Swing Black gate kit is a heavy-duty aluminum system for wide residential, estate, driveway and light-commercial openings. It combines a 4-inch HD USA aluminum gate frame, 4-inch ALU40 horizontal slats, inner corner reinforcement, a channel kit, a 6-foot L-shape stopper, 5-inch two-way support hinge hardware, a basic cane bolt and listed assembly fasteners in a two-leaf swing configuration.
View specifications ↓ View product media ↓
Overall size12′ wide × 6′ high
ConfigurationDouble swing · two leaves
Frame4″ HD aluminum
Slat profileALU40 · 4″ × 3/4″ × 6′
Heavy-duty 4″ framing, 4″ ALU40 horizontal infill and contractor-focused double-swing hardware.
Explore the actual black ALU40 Contractor Line media from the current product page, including the heavy-duty frame, horizontal slat layout, finish and gate-system details. Open any image for a larger look without leaving the product page.
Full-frame strength4″ HD contractor frame
ALU40 horizontal slats4″ × 3/4″ profile
Architectural powder coatAAMA 2604 finish
Reinforced hinge support5″ two-way hardware
Aluminum construction6063-T6 system
Contractor-ready systemHeavy-Duty gate kit
A wide double-swing opening needs more than attractive slats. The frame, hinges, posts and alignment all have to work as one system.
The heavy-duty Contractor Line is organized around a 4-inch HD aluminum gate frame, inner corner reinforcement, channel components, ALU40 infill, a center closing condition and two-way hinge support for professional installation.
4″ HD gate frameThe contractor frame is designed for the structural demands of a wide two-leaf swing gate. ALU40 horizontal infillThe 4″ × 3/4″ × 6′ aluminum profile creates the wider horizontal rhythm associated with the ALU40 system, with a 3/8″ or 1/2″ gap on this listing. Manual or automation planningSwing-gate automation can be planned when the selected operator, 3″ HD support posts, footing, safety devices, attachment points and site geometry are appropriate.The ALU40 Contractor Line 12′ × 6′ Double Swing Black gate at a glance.
This black 12′ × 6′ configuration uses two swing leaves, a 4-inch heavy-duty USA aluminum frame and ALU40 4″ × 3/4″ × 6′ horizontal slats with a 3/8″ or 1/2″ gap option.
Installation planning: Confirm opening dimensions, swing clearance, post selection, footing conditions and any automation requirements before ordering or assembly. Post selection should reflect the actual site and gate operator requirements.- Product
- ALU40 Black 12′ × 6′ Heavy-Duty Contractor Line Double Swing Gate Kit
- Line
- Contractor Line · Heavy-Duty double swing
- Overall size
- 12′ wide × 6′ high
- Leaf layout
- Double swing · two approximately 6′ leaves
- Frame
- 4″ heavy-duty USA aluminum gate frame
- Frame stock listed
- 24′ gate frame
- Material
- USA-made 6063-T6 aluminum
- Characteristics
- Lightweight · excellent corrosion resistance
- Slat profile
- ALU40 · 4″ × 3/4″ × 6′ horizontal aluminum slat
- Corner reinforcement
- Inner corner bracket system
- Slat support
- Channel kit
- Gate stopper
- 6′ L-shape gate stopper
- Hinge system
- Heavy-duty 5″ two-way support hinge
- Fasteners listed
- #10 × 1″ · #12 × 2″ black · #10 × 3/4″ screws
- Center hardware listed
- Basic cane bolt
- Cap listed
- 2″ aluminum cap
- Slat gap
- 3/8″ or 1/2″
- Standard color
- Black
- Optional support posts
- 3″ × 3″ HD posts in 8′ and 12′ listing options
- Finish
- Architectural powder coating
- Coating standard
- AAMA 2604
- Customization
- Custom colors and custom sizes available
- Combustibility
- Non-combustible aluminum substrate
- Automation
- Can be configured for compatible swing-gate automation
- Installer profile
- Professional contractor or experienced installer
The structural pieces that make this a Contractor Line gate kit.
The live product listing identifies the 24′ 4″ HD USA aluminum gate-frame stock, inner corner bracket, channel kit, 6′ L-shape gate stopper, heavy-duty 5″ two-way support hinge, basic cane bolt, listed screws, 2″ aluminum cap and black 6′ ALU40 slat profile used for the double-swing assembly.
4″ HD gate frame
The listing specifies 24′ of 4-inch heavy-duty USA aluminum gate-frame material for the Contractor Line assembly.
Inner corner brackets
Corner reinforcement helps maintain a square, rigid frame as the two gate leaves are assembled.
Channel kit
The channel system supports the horizontal ALU40 infill and creates a controlled, finished relationship between slats and frame.
6′ L-shape gate stopper
The listed L-shape stopper is part of the closing and alignment hardware for the double-swing system.
5″ two-way support hinge
The heavy-duty hinge system is selected for contractor-grade swing support and proper leaf alignment.
Fastener set
The product listing identifies #10 × 1″, #12 × 2″ black and #10 × 3/4″ screws for the gate assembly.

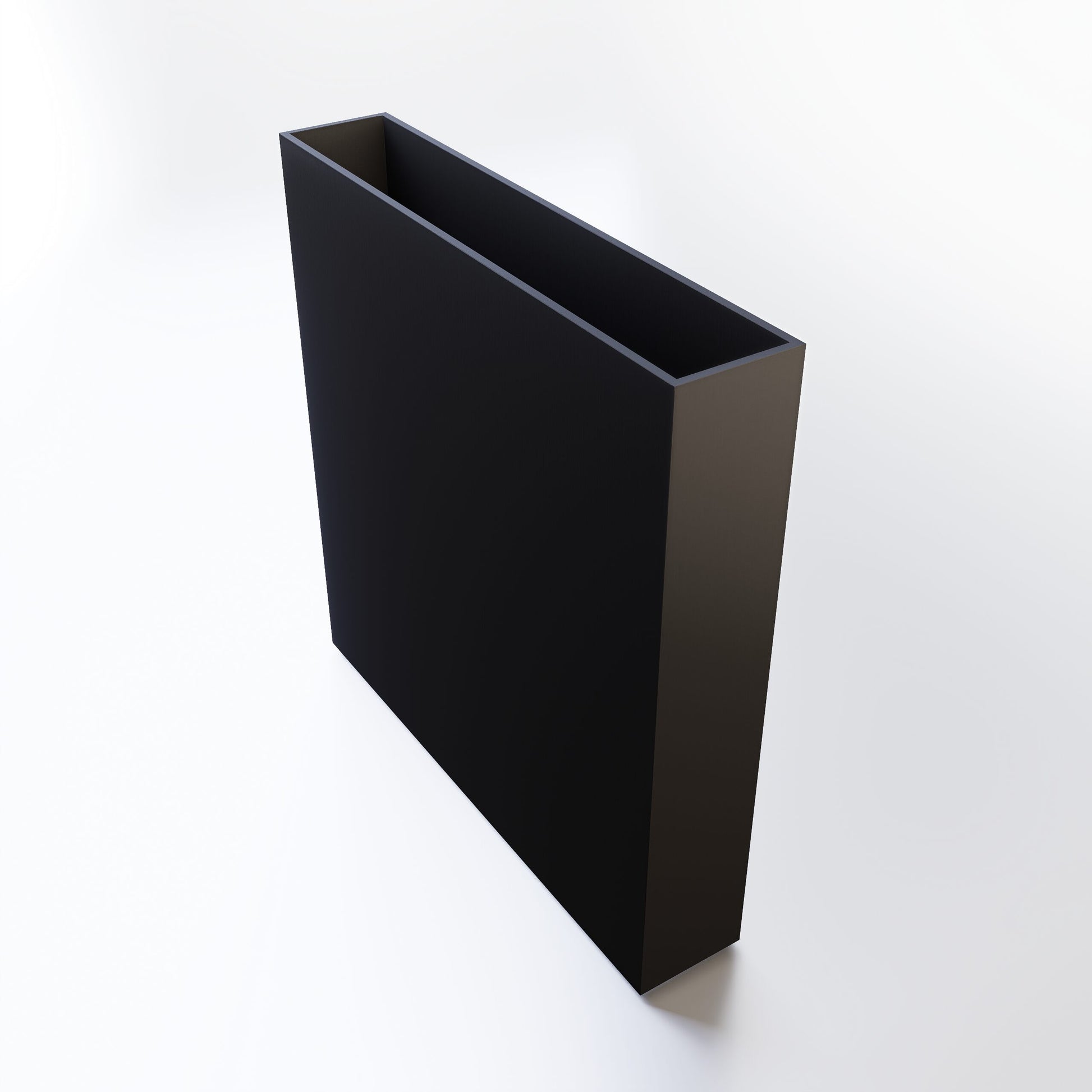

ALU40 horizontal slats
The listed black infill is the ALU40 6′ profile. The matching ALU40 product specification identifies a 4″ × 3/4″ × 6′ profile, and this gate is offered with a 3/8″ or 1/2″ gap.
3″ HD post options
Optional additions on the live product listing include 3″ × 3″ HD support posts in 8′ and 12′ options, plus matching 3″ aluminum caps. Final support selection depends on the site, footing, exposure and operator plan.
Basic cane bolt
A basic cane bolt is listed with the gate kit for the double-swing closing and hold-open / hold-closed condition as appropriate to the installation.
2″ aluminum cap
A 2-inch aluminum cap is included in the current gate-kit parts list.
Custom project options
Custom gate colors, sizes and slat spacing are available for project-specific orders, with optional HD posts and caps selected separately.
Why this 12′ × 6′ configuration
A wide opening divided into two controlled swing leaves instead of one oversized panel.
The 12-foot overall gate is configured as a double swing, creating two leaves that meet at the center. This format is suited to driveways and broad access points where there is enough clear swing area on the property. The 6-foot height provides substantial coverage, while the 4-inch HD frame is intended to maintain structural stability across frequent use and the wider 4-inch ALU40 profile gives the opening a stronger horizontal architectural rhythm.
12′ × 6′ overall format Two-leaf double swing 4″ heavy-duty frame ALU40 4″ horizontal slats 3/8″ or 1/2″ gap Black standard finish 6063-T6 aluminum AAMA 2604 finish Contractor Line · Heavy-Duty Automation planning availableAdditional views of the black ALU40 Contractor Line gate system.

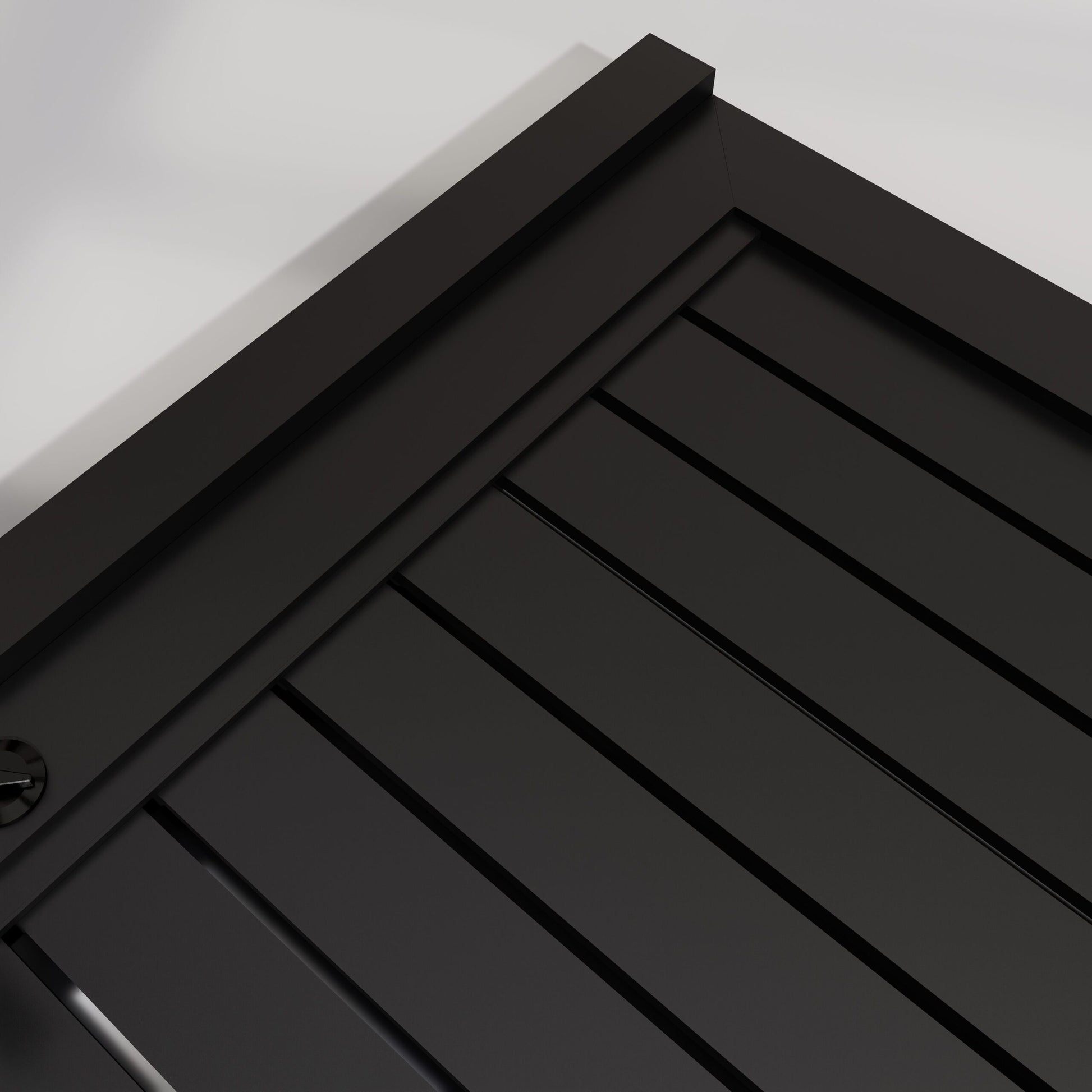

Use the additional views to inspect the aluminum system, horizontal slat language and exterior finish in more detail.

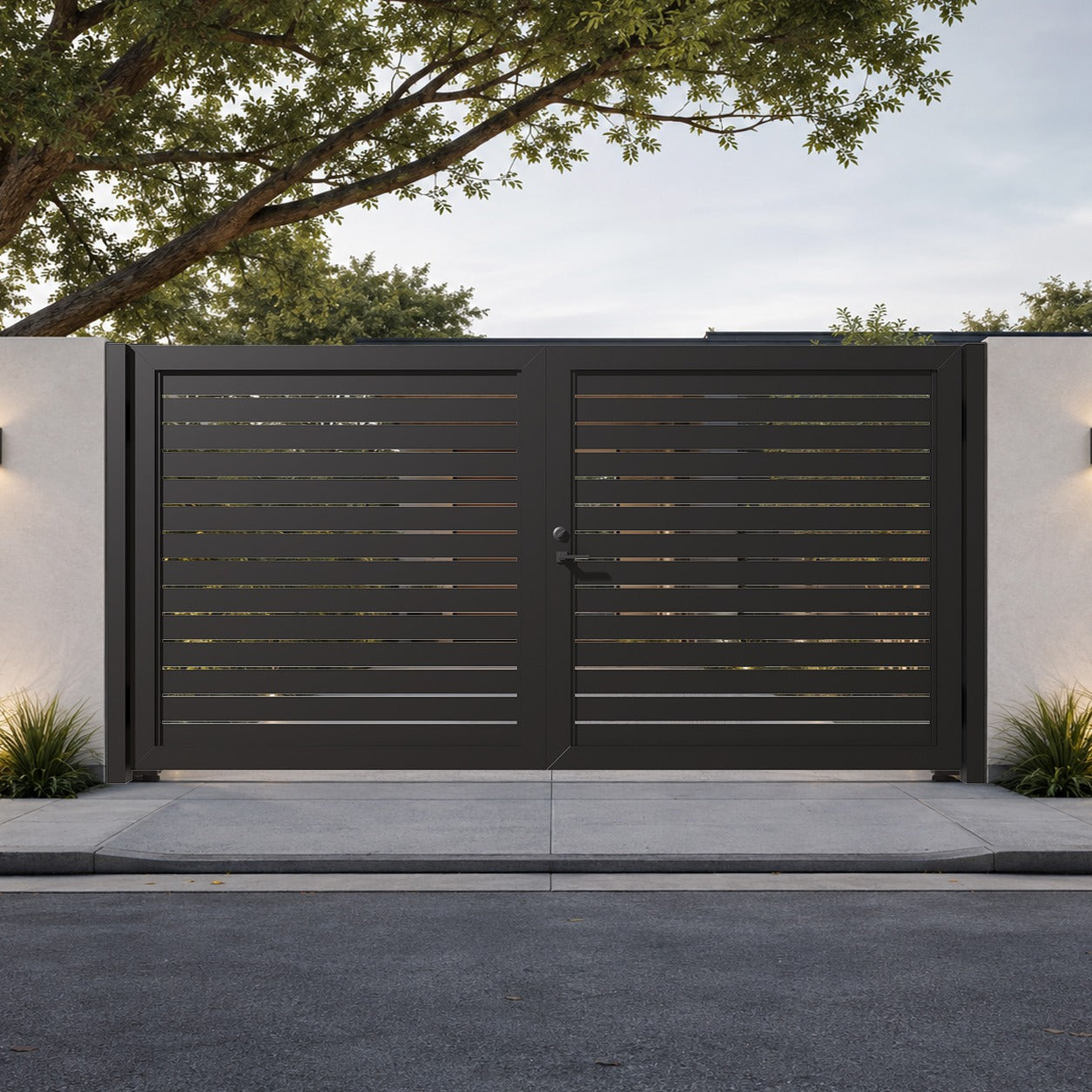

Gate system view 01Black ALU40 gate system
Gate system view 02Black ALU40 gate system
Gate system view 03Black ALU40 gate system
Gate system view 04Black ALU40 gate system
Gate system view 05Black ALU40 gate systemALU40 profile geometry and the 4″ contractor-frame relationship.
Use the ALU40 profile reference to understand the 4-inch horizontal infill, then compare it with actual black Contractor Line product media. Final gate dimensions, post conditions, center meeting condition and hardware placement should be confirmed for the actual project.
ALU40 profile2D and 3D technical view
ALU40 gate systemBlack Contractor Line media
Contractor gate referenceContractor gate reference
Frame strength is only part of the gate. Post, footing, hinge and operator choices control how the system performs after installation.
The product is designed as a heavy-duty Contractor Line kit, but the site still determines the correct support condition. Contractors should treat the post and footing selection as part of the gate system rather than an afterthought.
4″ HD frame
This Contractor Line configuration uses a 4-inch heavy-duty gate-frame platform for the 12-foot double-swing opening.
5″ two-way hinge support
Heavy-duty two-way hinge hardware is listed for the gate. Alignment and structural attachment remain critical across both leaves.
Post selection
The live listing offers 3″ × 3″ HD post options in 8′ and 12′ lengths, with black and custom-color choices. Selection should match the actual opening, load, exposure, footing and operator plan.
Concrete and footing conditions
Posts must be installed plumb and securely supported. Footing design and embedment depend on project conditions and applicable requirements.
Automation planning
The gate can be planned for compatible swing automation, but operator capacity, attachment location, safety devices and site geometry must be confirmed as a complete system.
Center closing condition
Both leaves must align correctly at the center, with the stopper, latch or access-control hardware planned before final adjustment.
Access-control and installation components shown on the current product page.
These items are shown as additional elements on the current page. Treat them as project options rather than assuming they are included with the base gate kit, and confirm compatibility before ordering.
KeypadAdditional element
LatchAdditional element
Bar handleAdditional element
C-channelAdditional element
Base plateAdditional element
A contractor-grade aluminum gate for driveways and wide access points where two swing leaves make sense.
The 12′ × 6′ format is intended for wide residential and light-commercial openings with enough clear area for the double-swing arc and suitable structural support.
Residential driveways
Create a modern two-leaf driveway entrance with wider 4-inch ALU40 horizontal lines and contractor-grade aluminum framing.
Estate entrances
The broad 12-foot format works well where the entrance needs architectural presence as well as vehicle access.
Gated communities and HOA projects
Use the repeatable aluminum system where consistent appearance and durable gate construction matter across multiple access points.
Commercial access
A practical option for office, mixed-use and light-commercial entries when the opening and use cycle suit a double-swing system.
Pool and perimeter openings
The horizontal aluminum system can be used at pool or perimeter access points when the complete installation, latch, clearance and local safety requirements are satisfied.
Light-industrial and mixed-use access
The reinforced Contractor Line can serve appropriate light-industrial and mixed-use openings where the site conditions suit a double-swing gate.
Matching fence-and-gate packages
Coordinate the ALU40 horizontal language with compatible aluminum fence systems for a more continuous property design.
Coastal and humid climates
Aluminum avoids iron-oxide rust and is well suited to environments where steel corrosion maintenance can become a recurring issue.
6063-T6 aluminum with an AAMA 2604 architectural finish for exterior gate applications.
The current product content identifies 6063-T6 aluminum and an architectural powder-coated exterior finish. The matching black ALU40 slat specification identifies AAMA 2604 super-durable powder coating. Aluminum does not develop iron-oxide rust like steel, and the metal substrate is non-combustible.
6063-T6 aluminum6063-T6 architectural aluminum provides the material platform identified by the current product content for the frame and ALU40 system. AAMA 2604 powder coatAn architectural exterior finish supports long-term color and surface protection with routine cleaning. Non-combustible substrateThe aluminum itself does not ignite or sustain flame under normal fire exposure. Final code compliance always depends on the complete project assembly and jurisdiction.A six-step contractor workflow from verified opening to synchronized double-swing operation.
Start with the site and support conditions, then assemble the two heavy-duty leaves square, install the 4″ ALU40 infill and complete hinge, stop and access-control alignment before regular use.
Verify the finished opening
Confirm the 12-foot overall opening, 6-foot gate height, grade, swing path and center meeting condition before setting support hardware.
Confirm posts and footings
Select the appropriate post configuration for the site, then install structural supports plumb, aligned and adequately founded for the gate and any operator loads.
Assemble the 4″ HD frames
Lay out the heavy-duty frame sections, inner corner brackets and channel components on a protected flat surface and keep both leaves square during assembly.
Install ALU40 4″ horizontal slats
Install the 4″ × 3/4″ × 6′ ALU40 slats consistently using the ordered 3/8″ or 1/2″ gap and secure the system with the specified channel and fastener components.
Set the 5″ two-way hinges
Hang and align both leaves so they swing freely, maintain clearances and meet correctly at the center without forcing the frame.
Set stops, access hardware and automation
Complete the L-shape stopper, latch or access-control condition, then test both leaves. If automated, commission the operator and required safety devices as a complete gate system.
Confirm more than the width. A 12-foot double swing depends on support, swing geometry and hardware selection.
The listed gate size gives you the overall target, but the installation succeeds only when the two leaves, supports and access hardware are planned around the real site.
Measure the opening
Measure width and height at multiple points and confirm the finished dimension that the installed gate must serve.
Check the swing arc
Confirm both leaves have clear travel and will not conflict with vehicles, walls, landscaping, slope or required access paths.
Select the support posts
Choose the optional 3″ × 3″ HD support-post configuration based on actual structure, footing, exposure and gate-operator requirements rather than appearance alone.
Plan automation early
If a swing operator will be used, select it before final hardware layout so attachment points, power, safety equipment and travel geometry are coordinated.
Confirm slat spacing and privacy
Choose the listed 3/8″ or 1/2″ ALU40 gap based on the desired visual coverage and openness, then confirm that configuration before assembly.
Confirm finish and custom sizing
The black ALU40 slat specification identifies AAMA 2604 super-durable powder coating. Custom colors, sizes and slat spacing are available for project-specific orders.
See the Aluglobus gate system in motion.
Watch the requested Aluglobus Aluminum Systems gate video for a closer look at the aluminum system and finished gate design. The YouTube player loads only after the visitor clicks the poster, reducing unnecessary page-load work.
Answers before you order or install the 12′ × 6′ black ALU40 Contractor Line gate.
Common questions about the 4″ HD frame, double-swing layout, 4″ ALU40 slats, 3/8″ or 1/2″ gap, 3″ HD posts, automation and black finish.
What is the ALU40 Contractor Line 12′ × 6′ Double Swing Black gate?
It is a heavy-duty Contractor Line aluminum gate kit configured as a 12-foot-wide by 6-foot-high double swing system. It uses a 4-inch HD USA aluminum gate frame with black 4-inch ALU40 horizontal slats and the listed reinforced gate hardware.What size opening is this gate designed around?
The listed configuration is 12′ wide × 6′ high overall. Final installed clearances depend on the selected posts, hinges, center condition and project measurements, so the site opening should be verified before ordering.What components are specified with the gate kit?
The live listing identifies 24′ of 4-inch HD USA aluminum gate-frame material, inner corner bracket, channel kit, 6′ L-shape gate stopper, heavy-duty 5-inch two-way support hinge, basic cane bolt, #10 × 1″, #12 × 2″ black and #10 × 3/4″ screws, a 2″ aluminum cap and black 6′ ALU40 slats.What gap options are listed for the ALU40 slats?
The product title lists a 3/8″ or 1/2″ gap. The tighter 3/8″ rhythm provides slightly more visual coverage, while 1/2″ creates a little more openness. Confirm the selected gap before assembly.Can the double-swing gate be automated?
The product description states that the gate can be configured to support swing-gate automation. The operator must be selected for the actual leaf size and weight, and the post, footing, attachment, power and safety-device requirements must be coordinated for the installation.What post sizes are shown for this Contractor Line gate?
The live product options show 3″ × 3″ HD support posts in 8′ and 12′ lengths, plus 3″ aluminum caps. Black and custom-color post options are listed. The correct support condition still depends on footing, exposure, gate use and automation.Is it suitable for residential and commercial projects?
Yes. The current page positions this gate for residential driveways, estate entrances, gated communities, commercial properties and other wide access points where the double-swing layout is appropriate.Does the aluminum gate develop iron-oxide rust like steel?
6063-T6 aluminum does not form iron-oxide rust like steel. The black ALU40 slat specification identifies AAMA 2604 super-durable powder coating for exterior protection. Routine cleaning is still recommended, especially in coastal or high-salt environments.How long does an aluminum horizontal swing gate last?
The current listing does not publish a fixed service-life number. Long-term performance depends on correct structural installation, hinge and operator setup, exposure, use cycle and maintenance. Aluminum avoids the rust and rot mechanisms that commonly shorten the life of steel and wood gates.Can I order a custom color or custom size?
Yes. The product listing states that custom colors and custom sizes are available. Confirm the required opening, finish and hardware conditions with Aluglobus before ordering a nonstandard configuration.Is the aluminum non-combustible?
The aluminum substrate is non-combustible and does not sustain flame like combustible materials. That material characteristic does not by itself certify the complete installed gate for every fire-code or defensible-space requirement, so project-specific compliance should still be confirmed.Confirm the 12′ × 6′ opening, supports and swing plan before the kit arrives.
For a standard manual installation, verify the finished opening, post condition and double-swing clearance. For automation or custom sizing, send the project information first so the gate, support and operator plan can be coordinated.
Request project support ↗ Back to product options ↑A 12-foot double swing is a system decision, not just a gate-size decision.
Before ordering, make sure the gate configuration matches the opening, supports, swing geometry and access-control plan.
Finished opening width + height Post size and support condition Footing / base condition Inside or outside swing direction Clear swing area for both leaves Manual or automated operation Latch / lock / access-control requirement 3/8″ or 1/2″ ALU40 gap Finish / custom color Photos from both sides of the opening Project city / state Choose your next stepSend the opening before you commit to posts, hinges or an operator.
For a standard 12′ × 6′ gate, verify the real opening and swing area. For custom sizes, custom colors, automation or difficult support conditions, send the project measurements and photos so the configuration can be reviewed first.
