A 12′ × 6′ woodgrain double-swing aluminum gate built around a 4″ heavy-duty contractor frame.
The ALU40 Woodgrain Contractor Line 12′ × 6′ Horizontal Double Swing Gate combines a heavy-duty aluminum frame with horizontal ALU40 woodgrain infill for projects that want the warmth of wood without using a wood gate structure. The current product package lists 24′ of 4″ HD USA aluminum gate frame stock, inner corner reinforcement, a channel kit, a 2.5″ aluminum cap, ALU40 teak woodgrain material, a 6′ L-shape gate stopper, heavy-duty 5″ two-way support hinge hardware, a basic cane bolt and the listed assembly fasteners.
View specifications ↓ View product media ↓
Overall size12′ wide × 6′ high
ConfigurationDouble swing · two leaves
Frame4″ HD aluminum
FinishALU40 woodgrain
Heavy-duty framing, horizontal wood-look aluminum and contractor-focused double-swing hardware.
These views come from the current Elementor content attached for this product. The captions have been rewritten around the verified Contractor Line configuration so the media, hardware and product positioning stay consistent. Open any image in the built-in lightbox.
Full-frame strength4″ HD contractor frame
Woodgrain horizontal infillALU40 aluminum profile
Wood-look aluminum finishArchitectural exterior system
Heavy-duty hinge support5″ two-way hardware
Aluminum construction6063-T6 system
Contractor-ready packageHeavy-Duty gate system
The visual warmth comes from the finish. The structural work is still handled by the aluminum frame, hinges, posts and hardware.
The Contractor Line is organized around a 4-inch HD aluminum gate frame, inner corner reinforcement, channel components, ALU40 woodgrain infill, a center closing condition and two-way hinge support for professional gate installation.
4″ HD gate frameThe contractor frame is built for the structural demands of a wide two-leaf swing gate. ALU40 woodgrain infillThe current package identifies ALU40 teak woodgrain material, giving the gate a natural visual texture while retaining an aluminum substrate. Automation planningMotorization can be planned when the selected operator, HD support posts, footing design, safety devices, attachment points and site geometry are appropriate.The ALU40 Woodgrain Contractor Line 12′ × 6′ double-swing gate at a glance.
The current live listing describes this product as the ALU40 Woodgrain 12×6 ft. Heavy-Duty double-swing gate with either a 3/8″ or 1/2″ gap configuration.
Installation planning: Confirm the finished opening, selected gap, swing clearance, post and footing condition, lock or latch choice, and any automation requirements before ordering or cutting material. The live listing now offers HD 3″ and 4″ post families as optional additions.- Product
- ALU40 Woodgrain 12′ × 6′ Heavy-Duty Contractor Line Double Swing Gate Kit
- Line
- Contractor Line · Heavy-Duty double swing
- Overall size
- 12′ wide × 6′ high
- Leaf layout
- Double swing · two leaves
- Frame
- 4″ heavy-duty USA aluminum gate frame
- Frame stock listed
- 24′ gate frame stock
- Material
- USA-made 6063-T6 aluminum
- Characteristics
- Lightweight · excellent corrosion resistance
- Infill
- ALU40 horizontal woodgrain aluminum
- Woodgrain reference
- Current package identifies ALU40 TEAK material in 19′ stock
- Gap options
- 3/8″ or 1/2″, as listed for the current SKU
- Corner reinforcement
- Inner corner bracket system
- Slat support
- Channel kit
- Gate stopper
- 6′ L-shape gate stopper
- Hinge system
- Heavy-duty 5″ two-way support hinge
- Hold-open / center hardware
- Basic cane bolt
- Included cap
- 2.5″ aluminum cap, as listed in the gate kit parts
- Fasteners
- #10×1″ · #12×2″ BK · #10×3/4″ screws
- Coating standard
- AAMA 2604 · Cardinal Paint / TIGER
- Coating process
- Architectural powder coating
- Combustibility
- Non-combustible aluminum substrate
- Ignition
- Does not burn under normal fire conditions
- Melting point
- Approximately 615–655 °C
- Smoke developed
- 0, as listed in the product material specification
- Custom options
- Custom colors and custom sizes available
- Country of origin
- USA Made
The heavy-duty frame and woodgrain infill are supported by a contractor-focused hardware package.
This section follows the current live product package and the verified Heavy-Duty Contractor Line parts list.
24′ of 4″ HD gate frame stock
Heavy-duty USA aluminum frame stock for the two-leaf 12′ × 6′ Contractor Line configuration.

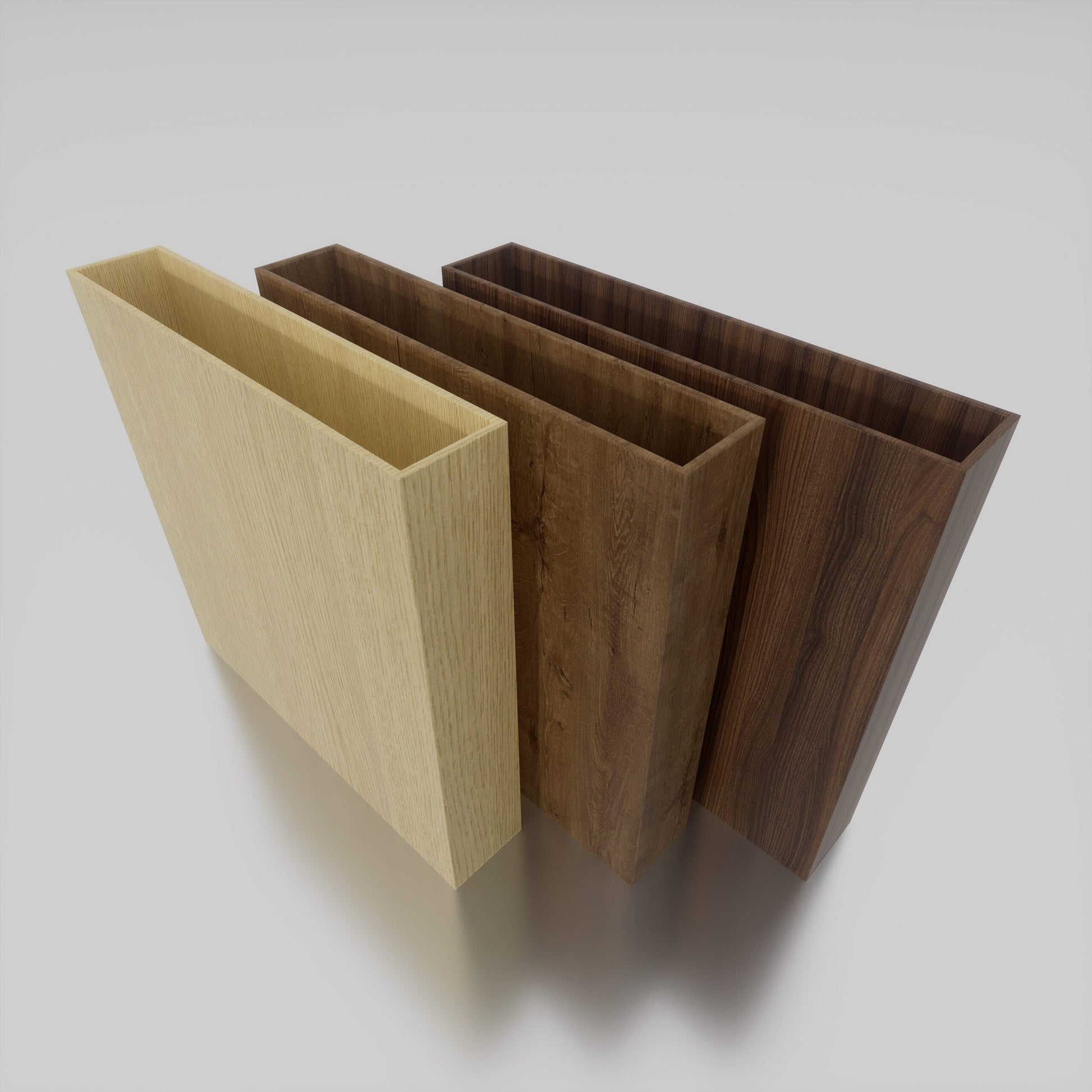

ALU40 woodgrain infill
The current package identifies ALU40 TEAK material in 19′ stock. Final cutting and layout should follow the selected 3/8″ or 1/2″ gap.
Inner corner bracket
Corner reinforcement used to support the heavy-duty frame geometry and maintain square gate leaves during assembly.
Channel kit
Matched channel components support the ALU40 horizontal infill inside the contractor frame.
2.5″ aluminum cap
The gate kit parts list includes a 2.5-inch aluminum cap. Optional 3-inch and 4-inch post caps are separate site-support additions.
6′ L-shape gate stopper
The L-shaped stopper helps establish the closed position and center condition for the double-swing leaves.
5″ two-way support hinge
Heavy-duty hinge hardware is listed for the gate system. Final quantity and placement should match the project package and installation plan.
Basic cane bolt
The listed cane bolt helps secure the passive leaf when the gate is closed or when one side needs to remain stationary.
Assembly fasteners
The current parts list specifies #10×1″ screws, #12×2″ BK screws and #10×3/4″ screws.
Why woodgrain aluminum
The architectural warmth of wood, without making the gate structure out of timber.
Woodgrain aluminum works well when the project needs a warmer, more residential or hospitality-focused appearance but still calls for a non-combustible aluminum gate system. The finish delivers visual texture while the 6063-T6 frame and infill avoid the swelling, splitting and biological decay associated with natural wood.
12′ × 6′ double swing 4″ HD frame stock ALU40 woodgrain infill 3/8″ or 1/2″ gap 6063-T6 aluminum AAMA 2604 coating Non-combustible substrate Contractor Line hardwareAdditional woodgrain gate imagery retained from the current Elementor page.
These images remain on the redesigned page because they are part of the current product content. Their captions are intentionally neutral where the old Elementor did not provide exact product-specific alt text.

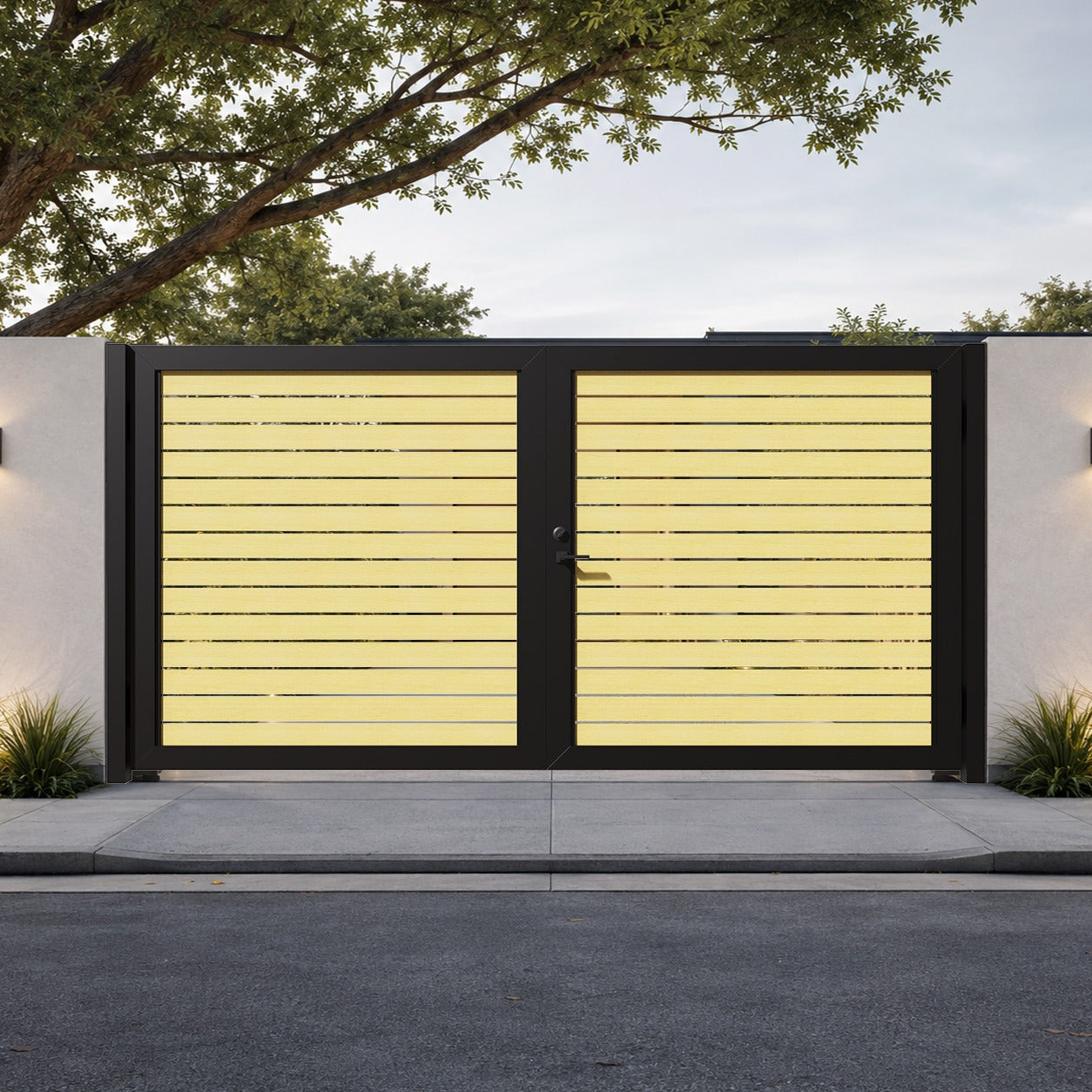

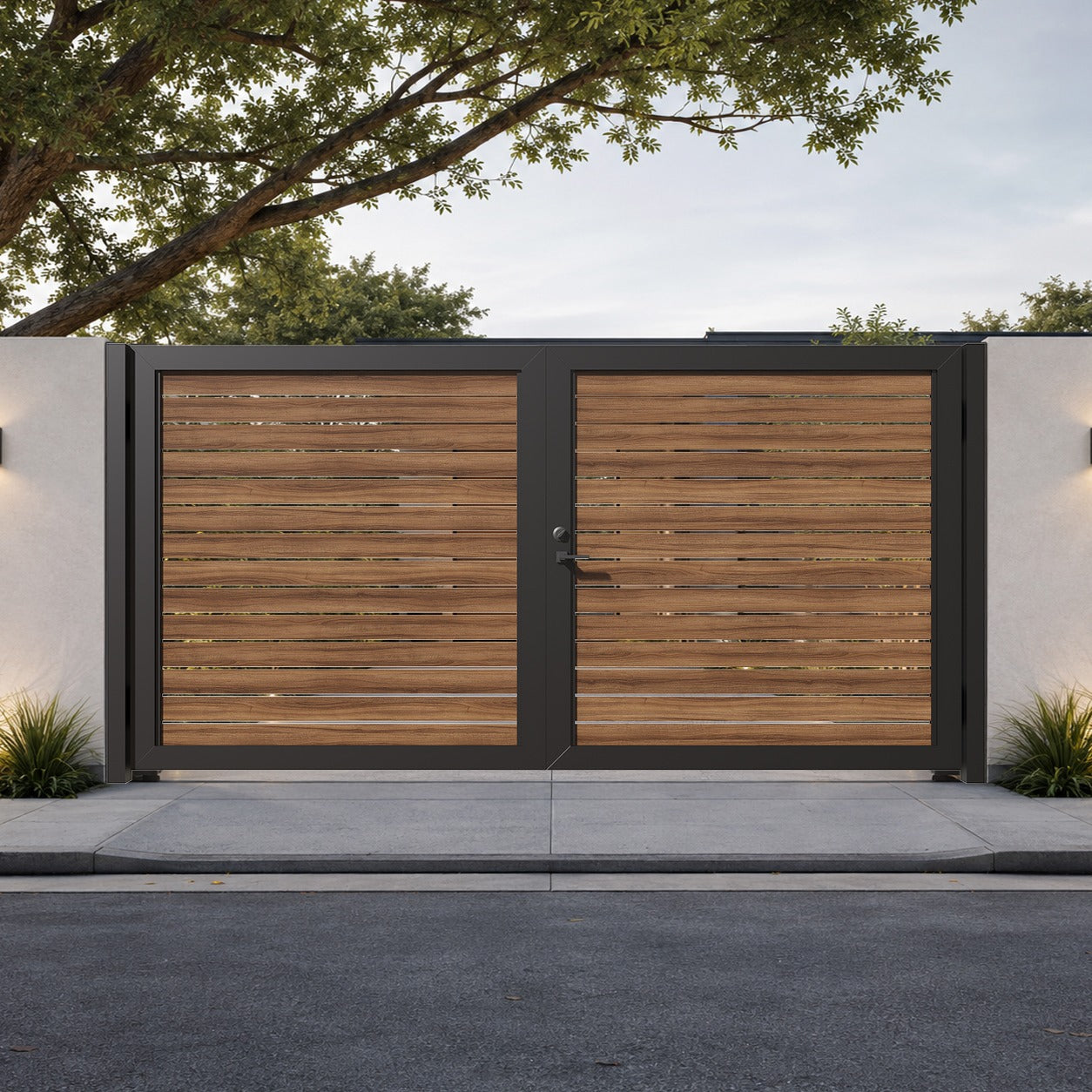

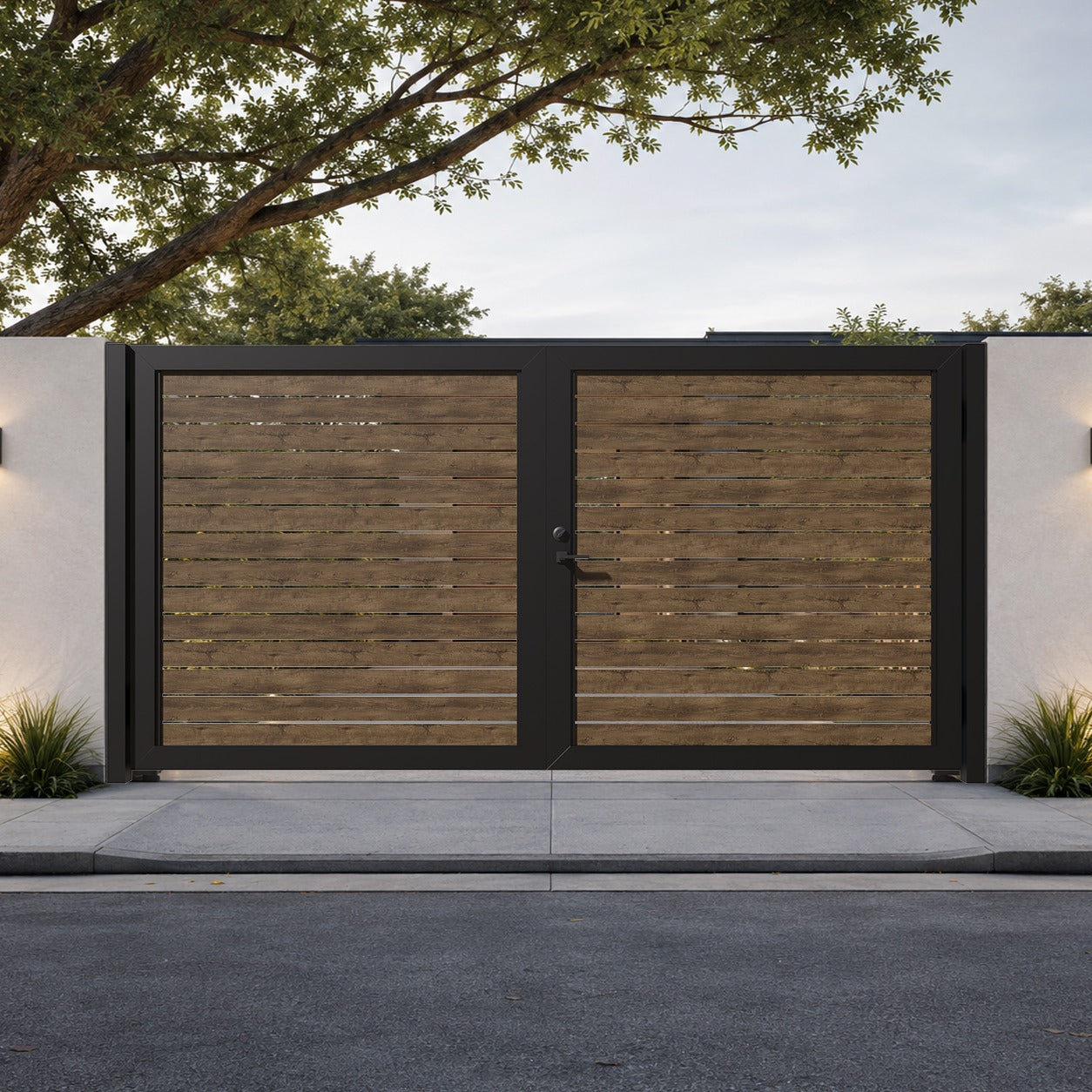

Woodgrain gate viewCurrent product media
Gate-system viewCurrent product media

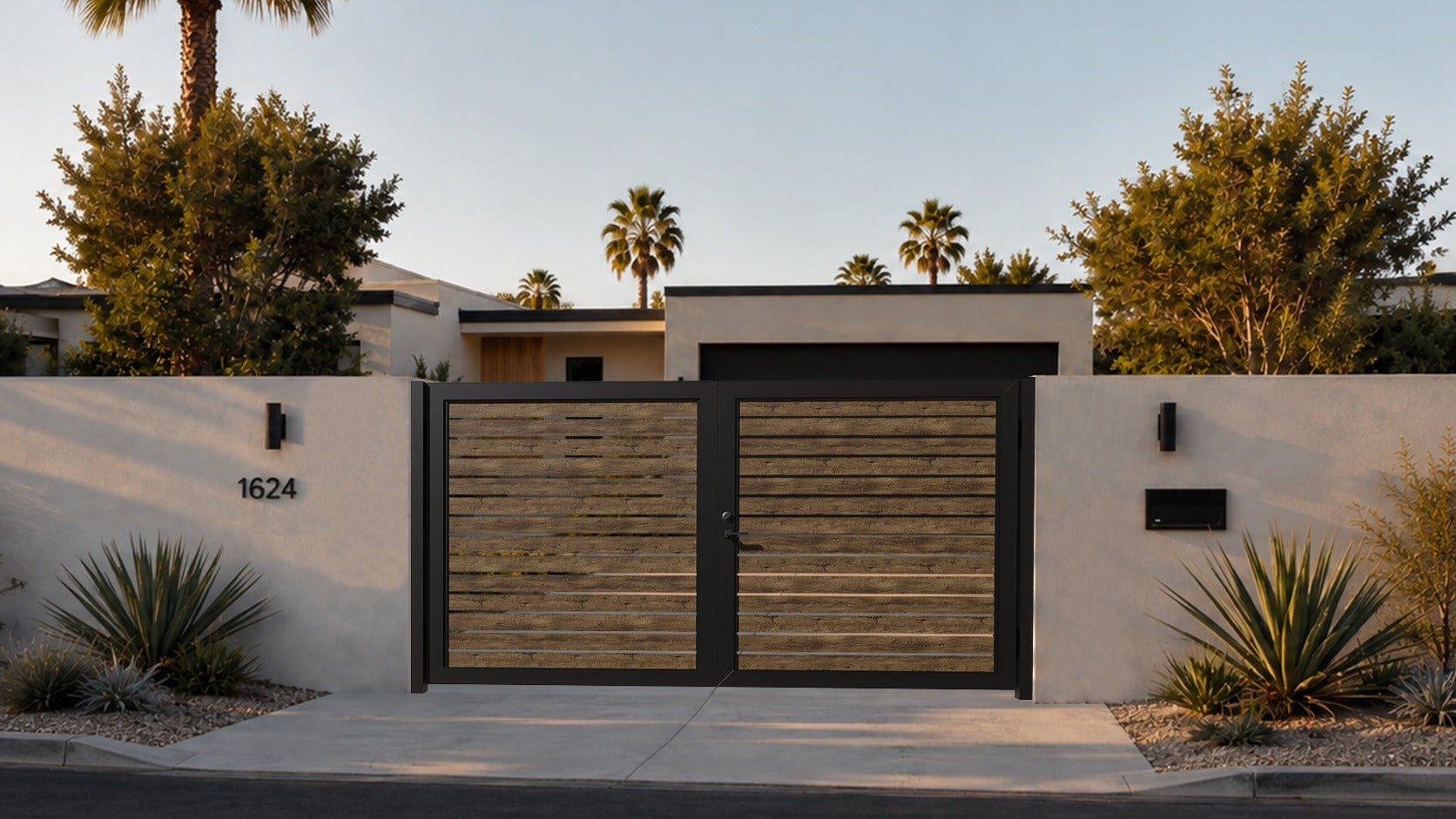

Installed referenceCurrent product media
Architectural detailCurrent product media
Wood-look aluminumCurrent product media
Installed referenceCurrent product media
Use the gate-system drawing to understand the frame relationship, then verify the real project opening before fabrication.
The current Elementor includes this ALU40 Heavy-Duty pedestrian-gate graphic. It is retained as a system reference, not as a finish sample or a substitute for project-specific dimensions.
Heavy-Duty gate systemConfiguration reference
Two-leaf alignment
Both gate leaves need to finish in the same plane with a controlled center reveal, consistent bottom clearance and properly aligned hinge axes.
Woodgrain course alignment
Horizontal infill is most convincing when the woodgrain slat courses line up visually from one leaf to the other across the full 12-foot opening.
The gate package is only one part of a successful wide double-swing installation.
The live product now offers optional HD 3-inch and 4-inch post families and matching caps. Choose the support system around the actual gate loads, footing, operator plan, attachment condition and applicable project requirements.
HD 3″ post family
The current listing offers 3″ × 3″ HD post options in multiple lengths and finish choices.
HD 4″ post family
4″ post options are also available for projects that need a larger support section or different site engineering.
Optional post caps
3″ and 4″ aluminum post caps are listed separately from the 2.5″ cap included in the gate-parts description.
Lock and latch selection
Confirm the actual latch, receiver, handle or lock body before final drilling so the center condition is planned correctly.
Footing and anchorage
Wide swing gates transfer significant loads into their supports. Footing size and anchorage should match the site, gate, hardware and applicable engineering requirements.
Automation coordination
When motorizing, coordinate the rated dual-leaf operator, attachment points, post stiffness, gate stops, power, entrapment protection and required safety devices before installation.
A wood-look aluminum entrance for projects that want warmth, width and contractor-grade gate framing.
The 12′ × 6′ format is intended for wide residential and light-commercial openings with enough clear area for the double-swing arc and suitable structural support.
Residential driveways
Use the two-leaf woodgrain gate to soften modern architecture while retaining a heavy-duty aluminum gate structure.
Luxury homes and villas
The warm finish creates a premium visual connection to wood doors, cladding, soffits and landscape materials.
Gated communities and HOAs
Wood-look aluminum provides a repeatable exterior appearance without relying on natural timber gate panels.
Courtyards and architectural entries
Horizontal ALU40 lines can coordinate with contemporary fences, wall cladding and other aluminum systems.
Light-commercial access
Suitable where the gate geometry, support and operating cycle match a two-leaf aluminum swing system.
Coastal and humid climates
The aluminum substrate does not develop iron-oxide rust like steel, making it useful where humidity and salt exposure are ongoing design concerns.
The look is woodgrain. The underlying gate remains an architectural aluminum system.
The live listing specifies USA-made 6063-T6 aluminum, architectural powder coating to AAMA 2604, Cardinal Paint / TIGER, non-combustible material characteristics, custom color availability and custom sizing.
6063-T6 aluminumA lightweight architectural aluminum alloy with excellent corrosion resistance. Woodgrain visual textureThe finish provides a natural look without making the gate frame or infill out of wood. Non-combustible substrateThe live material table identifies the aluminum as non-combustible, with approximately 615–655 °C melting behavior and zero smoke developed. Finish note: The woodgrain appearance avoids the staining and sealing routine associated with natural wood, but exterior aluminum still benefits from periodic washing and normal hardware inspection.A contractor-focused path from measured opening to aligned woodgrain double swing.
Pre-engineered components can reduce fabrication time, but the gate still requires accurate measurement, square frame assembly, consistent infill layout, solid hinge support and careful final alignment.
Verify the opening
Measure the finished width and height, check grade, confirm both swing arcs and identify the final post or wall support condition.
Assemble the HD frames
Lay out both heavy-duty leaves on a protected flat surface, use the inner corner hardware and confirm diagonal measurements before tightening.
Lay out the woodgrain infill
Cut and install the ALU40 woodgrain material to the selected 3/8″ or 1/2″ gap while keeping horizontal courses aligned across both leaves.
Install hinge and support hardware
Set the two-way support hinges to the correct axes and verify the supporting posts or walls are plumb, rigid and properly anchored.
Set the center condition
Align both leaves, install the L-shape stopper and cane bolt, then coordinate the selected lock or latch hardware.
Cycle and inspect
Open and close both leaves through their full swing, confirm clearances, tighten hardware and clean the woodgrain aluminum finish.
Confirm the opening and support package before the woodgrain material is cut.
A 12-foot double-swing gate is large enough that post stiffness, center alignment and operator planning should be resolved early, not after assembly.
Measure the finished opening
Record width and height at multiple points and identify any slope, taper or out-of-plumb conditions.
Select 3/8″ or 1/2″ gap
The live SKU offers both spacing options. Confirm the desired privacy and visual rhythm before calculating infill.
Confirm the woodgrain finish
The current package identifies teak woodgrain material. If another wood tone or custom color is desired, verify availability before production.
Choose posts and footings
Select the appropriate HD 3″ or 4″ support family based on site conditions, engineering and any gate-operator requirements.
Choose center hardware
Coordinate cane bolt, stopper, latch or lock hardware so the two leaves close into a deliberate, repeatable center condition.
Plan automation as a system
If motorizing, review the operator, brackets, power, safety devices, stops, post stiffness and footing before installation begins.
See the Aluglobus gate system in motion.
The existing Vimeo gate video is preserved and your requested YouTube video is added beside it. Both external players load only when clicked.
What to confirm before ordering the 12′ × 6′ ALU40 woodgrain Contractor Line gate.
Questions about the finish, frame, gap options, included hardware, support posts, corrosion behavior and automation planning.
What is this exact gate?
It is a 12-foot-wide by 6-foot-high ALU40 woodgrain Heavy-Duty Contractor Line gate configured as two horizontal swing leaves.Is the gate actually made from wood?
No. The current listing identifies USA-made 6063-T6 aluminum with a woodgrain visual finish. The goal is to create a wood-like appearance while retaining an aluminum gate structure.What woodgrain is listed with the package?
The gate-parts copy identifies ALU40 TEAK material in 19-foot stock. The broader listing also notes custom color availability, so verify the exact wood tone before production if the project requires something other than the listed teak reference.What gap options are available?
The current live product title lists 3/8-inch or 1/2-inch gap configurations. Confirm the selected gap before the infill is cut and laid out.What comes with the heavy-duty gate package?
The current package lists 24 feet of 4-inch HD USA aluminum gate-frame stock, an inner corner bracket, channel kit, 2.5-inch aluminum cap, ALU40 teak woodgrain material, 6-foot L-shape gate stopper, heavy-duty 5-inch two-way support hinge, basic cane bolt and the listed screw package.Which posts are currently offered for this gate?
The live product page currently offers optional HD 3-inch and 4-inch post families in different lengths and finishes, with matching cap options. Choose the support system around the site and gate-operating requirements.Can this gate be automated?
Automation can be planned with the Heavy-Duty gate platform, but the operator should not be selected in isolation. The posts, footings, brackets, swing geometry, stops, power and required safety devices all need to match the operator and site.Does woodgrain aluminum rust?
The 6063-T6 aluminum substrate does not develop iron-oxide rust like steel. The exterior finish still benefits from routine washing, especially in coastal or high-contamination environments.Does the woodgrain finish require staining?
No staining or wood sealer is required because the gate is aluminum rather than natural timber. Clean the exterior surface periodically and inspect gate hardware as part of normal maintenance.Is the aluminum non-combustible?
The live material table identifies the aluminum substrate as non-combustible, with no normal ignition behavior, approximately 615–655 °C melting behavior and zero smoke developed. Final project compliance depends on the complete installation and applicable local requirements.Can I order another size or finish?
The current listing states that custom sizes and custom colors are available. Confirm the required dimensions and finish before production rather than assuming the listed 12′ × 6′ package can simply be modified in the field.Confirm the woodgrain, gap, opening and support package before fabrication.
Send the finished opening dimensions and site photos if there is any uncertainty about post sizing, footing conditions, double-swing clearance, center hardware or motorization.
Request project support ↗ Review specifications ↑Do not let the woodgrain finish distract from the structural decisions behind a 12-foot double swing.
Before ordering, confirm that the Contractor Line frame, selected gap, support posts, swing geometry and hardware plan match the actual opening.
Finished opening width + height 3/8″ or 1/2″ gap selection Woodgrain / teak finish confirmation Inside or outside swing direction Clear swing area for both leaves HD 3″ or 4″ post requirement Footing / anchorage condition Latch / lock requirement Cane bolt / center-stop plan Manual or automated operation Photos from both sides of opening Project city / state Choose your next stepSend the opening and operating requirements before production.
We can review the gate size, woodgrain choice, post family, center hardware and automation requirements before the project moves into assembly or installation.
