Full privacy. Heavy-duty frame. Woodgrain aluminum.
The ALU 50-60 T&G Woodgrain 4×6 ft Heavy-Duty Pedestrian Gate Kit is a single-swing, no-gap aluminum gate built around a 4-inch heavy-duty frame and tongue-and-groove privacy infill. It combines a warm wood appearance with 6063-T6 aluminum, corrosion resistance, contractor-grade hardware and a non-combustible metal substrate.
Technical details ↓ Watch gate video ↓
Gate size4 ft × 6 ft
ConfigurationHeavy-duty · single swing
PrivacyT&G · no designed gap
FinishWoodgrain aluminum
What is actually behind the woodgrain finish.
The system is built around the parts that matter most to long-term gate performance: 6063-T6 aluminum, a 4-inch heavy-duty perimeter frame, interlocking tongue-and-groove privacy infill, heavy-duty hinge support and an architectural exterior finish.
Structural material6063-T6 aluminum6063-T6 USA-made aluminum provides a strong, corrosion-resistant base for exterior gate construction. Gate frame4″ heavy-duty frameA 20′ 4″ HD USA aluminum frame member forms the structural perimeter of the pedestrian gate. Privacy infill6.3″ ALU50 T>ongue-and-groove boards interlock without a designed open gap between profiles. Hinge support5″ heavy-duty 2-way hingeIncluded as the heavy-duty pivot hardware for the single-swing pedestrian leaf. Finish standardAAMA 2604Architectural coating specification references AAMA 2604 with Cardinal Paint / TIGER finish systems. CombustibilityNon-combustible aluminumMetal substrate does not ignite or sustain flame under normal fire exposure. Thermal reference~615–655°CApproximate aluminum melting range: 615–655°C (1,139–1,211°F). Post options2″ · 2.75″ · 2″×3″Choose the support condition to match the opening and installation design. Zone 0 / defensible-space material note: The aluminum substrate is non-combustible and does not create burning embers. Project-specific compliance depends on the complete assembly, surrounding materials, clearances, local code requirements and the authority having jurisdiction.See the frame, finish, hinge support and assembly details.
Review the woodgrain T&G infill, heavy-duty frame, hinge support, coating quality and installed gate details from multiple angles.
Full-frame strengthHeavy-duty gate frame
T&G system compatibilityPrivacy infill detail
Long-lasting finishAAMA 2604 reference
Reinforced hinge supportHeavy-duty hardware
Premium aluminum construction6063-T6 platform
Contractor-ready assemblyField installationALU 50-60 T&G Woodgrain Heavy-Duty 4×6 at a glance.
A contractor-line pedestrian gate designed around a full perimeter frame, no-gap T&G privacy infill and heavy-duty hinge support.
Measure before ordering: Confirm the finished opening, hinge side, swing direction, support/post condition, latch or lock requirements and any access-control hardware before final assembly.- Product
- ALU 50-60 T&G Woodgrain Heavy-Duty Pedestrian Gate Kit
- Gate type
- Single-swing pedestrian gate
- Nominal size
- 4 ft × 6 ft
- System
- Heavy-Duty Contractor Line
- Privacy
- Tongue-and-groove infill · no designed gap
- Material
- 6063-T6 architectural aluminum
- Frame
- 4″ HD USA aluminum gate frame
- Infill
- 6.3″ ALU50 T&G · 6 ft · teak/woodgrain listing
- Hinge
- Heavy-duty 5″ 2-way support hinge
- Finish
- Woodgrain architectural finish
- Coating
- AAMA 2604 · Cardinal Paint / TIGER reference
- Corrosion behavior
- Excellent corrosion resistance
- Combustibility
- Non-combustible aluminum substrate
- Ignition
- Does not burn under normal fire conditions
- Smoke developed
- 0
- Melting range
- Approximately 615–655°C (1,139–1,211°F)
- Post options
- 2″ · 2.75″ · 2″×3″
- Customization
- Custom colors and custom sizes available
The gate-kit components, organized by function.
20′ 4″ HD gate frame
Heavy-duty USA aluminum frame stock forms the structural perimeter of the single-swing gate.
Inner corner brackets
Internal corner hardware supports square frame assembly and clean exterior lines.
Channel kit
Channel components capture and organize the privacy infill within the framed gate system.

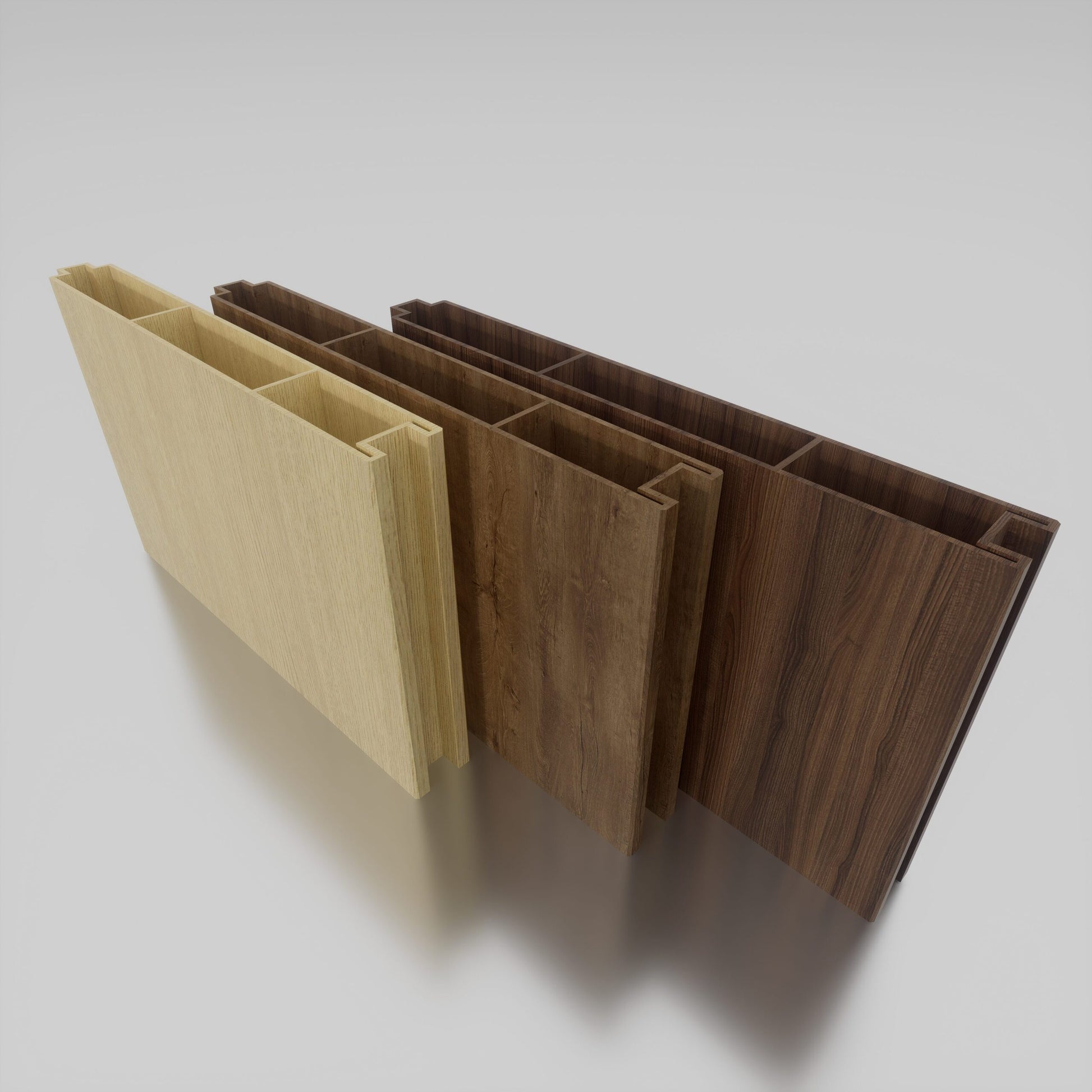

6.3″ ALU50 T&G profile
Six-foot teak/woodgrain tongue-and-groove aluminum infill creates the no-gap privacy field.
5″ 2-way support hinge
Heavy-duty hinge hardware supports the pedestrian leaf and provides the pivot point for single-swing operation.
Stopper, cap and fasteners
The listed hardware includes a 2.5″ aluminum cap, 6′ L-shape gate stopper, #12×2″ black screws, #10×3/4″ screws and #10×1″ screws.
Privacy comes from the profile geometry, not loose boards pushed together.
Tongue-and-groove aluminum uses mating profile edges to create a continuous infill field. For this SKU, there is no intentionally designed spacing between the privacy boards, giving the pedestrian gate a more solid architectural face than an open-slat gate.
No designed slat gapBuilt for a continuous privacy appearance rather than 3/8″ or 1/2″ open spacing. Aluminum instead of structural woodThe woodgrain appearance is carried by an aluminum profile, so the gate does not rely on wood boards for its primary privacy field. Cleaner edge alignmentThe interlocking profile geometry helps the infill read as one continuous plane across the gate. Lower recurring upkeepNo routine wood staining or sealing is required for the aluminum substrate.A gate should be a framed system, not fence material with hinges attached.
This product uses a dedicated 4-inch heavy-duty aluminum gate frame, internal corner hardware, channel components and a heavy-duty hinge system. That frame-first approach is what separates a purpose-built pedestrian gate from a loose infill assembly.
Full perimeter frameThe frame carries the gate geometry and provides a structural boundary around the T&G infill. Heavy-duty hinge supportA 5-inch heavy-duty 2-way support hinge is included for the single-swing pedestrian leaf. Contractor-repeatable assemblyStandardized components reduce field improvisation and help crews reproduce a cleaner installation. Corrosion-resistant metal platform6063-T6 aluminum avoids the red-rust mechanism of ferrous gate materials and is suited to exterior exposure.A full-privacy pedestrian gate for residential and light-commercial access points.
Side-yard entrances
Create a more private transition between front and rear property areas.
Pedestrian walkways
Use the 4×6 single-swing configuration where a dedicated framed walk gate is required.
Gated communities
Repeat the same framed T&G architecture across multiple homes or controlled-access points.
Outdoor living areas
Coordinate the woodgrain gate with fences, patios, landscape materials and contemporary exterior finishes.
Coastal and humid regions
Aluminum’s corrosion resistance makes it a practical alternative to untreated ferrous or wood gate materials.
Light-commercial projects
Use the contractor-line system where repeatability, clean alignment and low recurring maintenance matter.

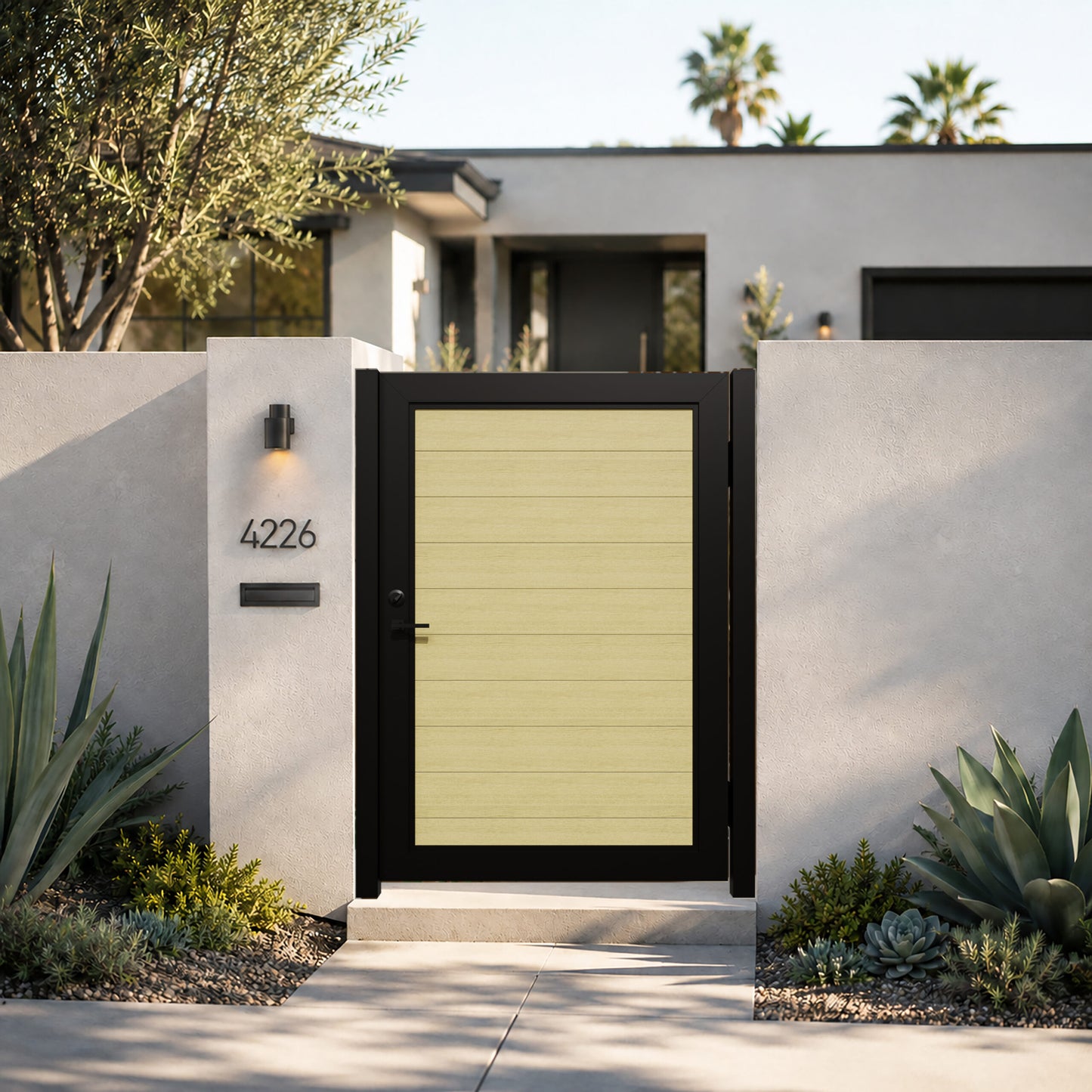

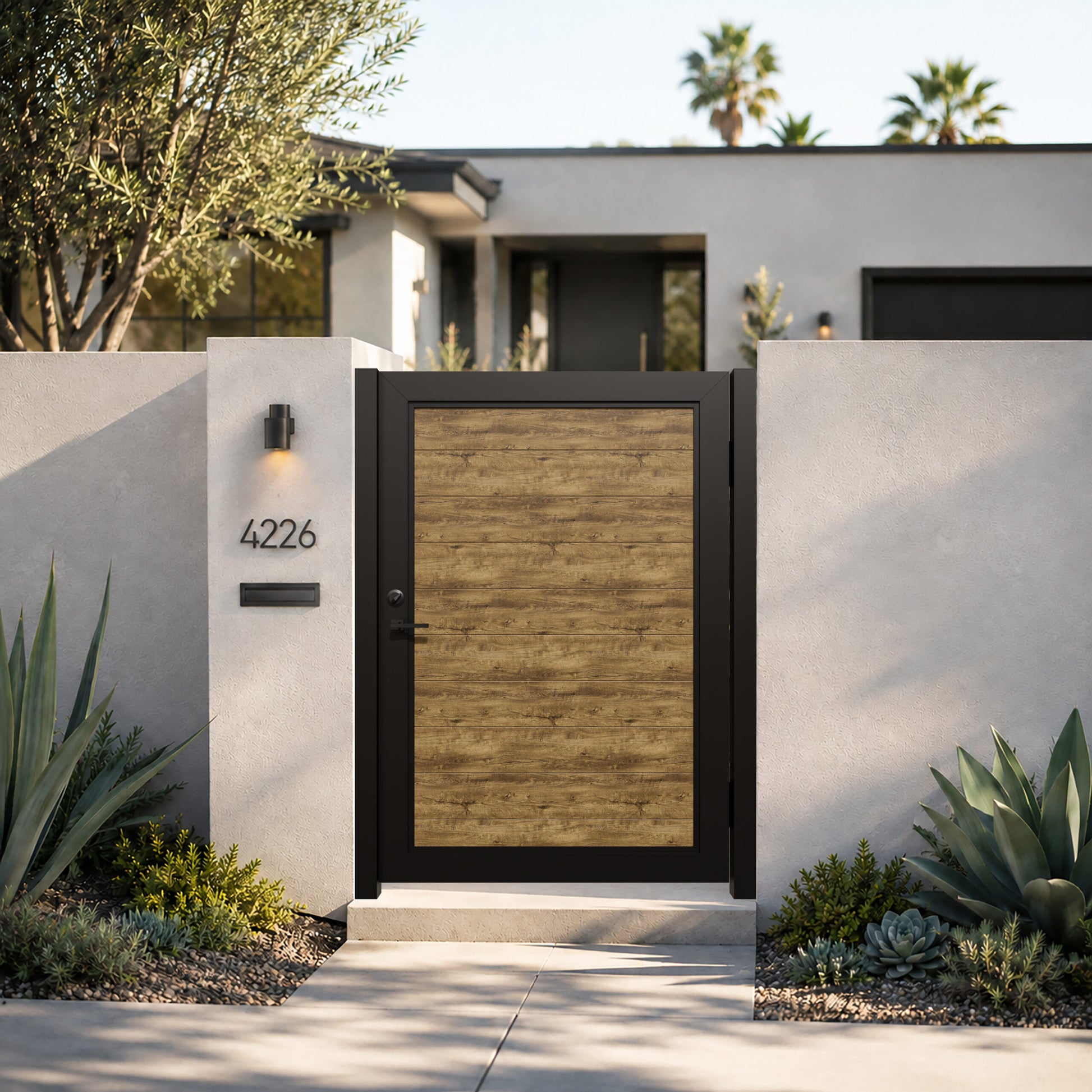

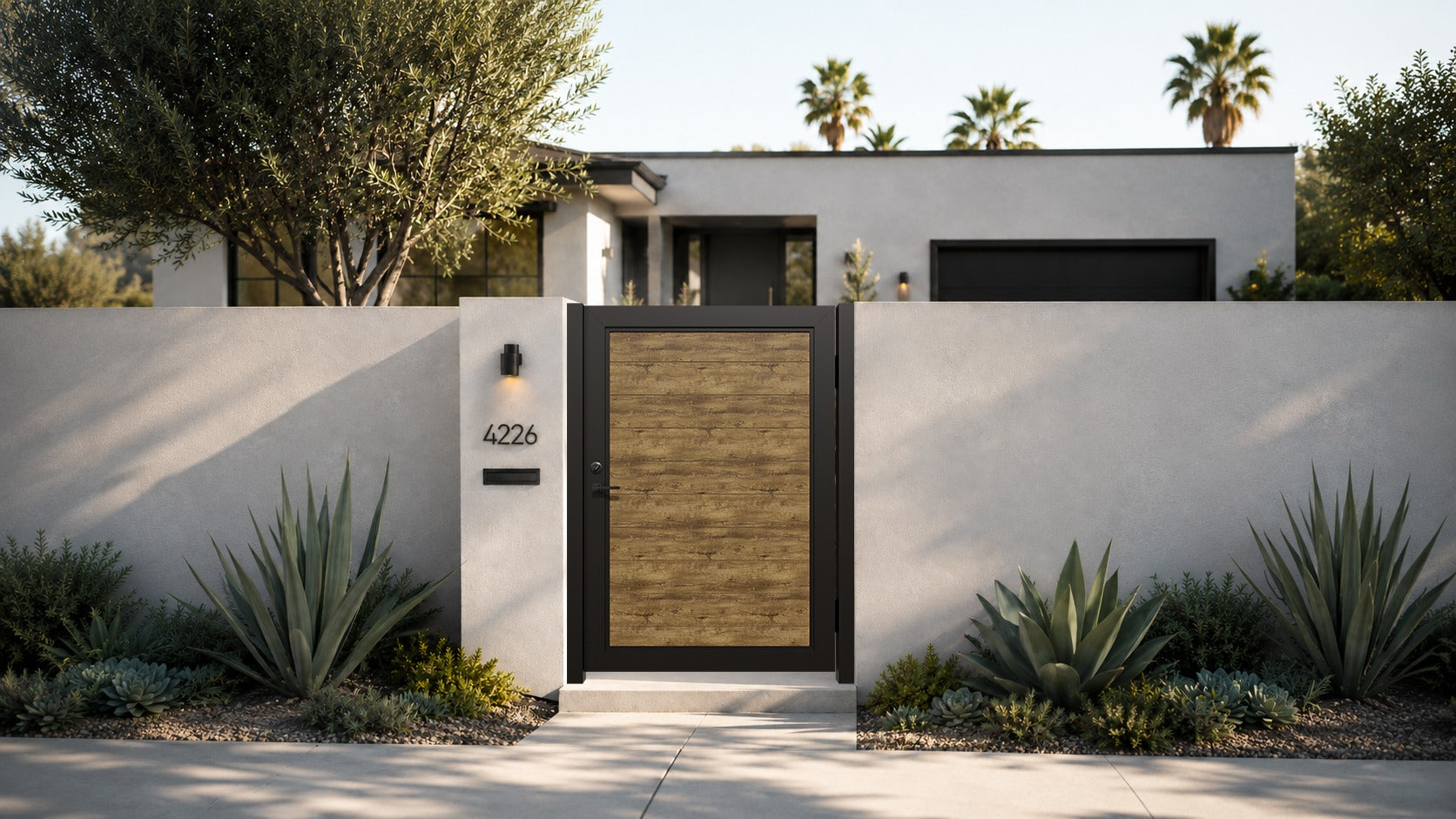

A closer look at the finished gate system.
Use these views to examine the finished woodgrain surface, privacy field, frame proportions and overall installed appearance.
Gate system detailFrame + infill
Project detailInstalled viewSix checkpoints from opening verification to final adjustment.
For a clean result, keep the frame square, seat the T&G profiles correctly in the channel system, align the hinge hardware and verify the finished swing before placing the gate into service.
Verify the opening
Confirm the finished width and height, support surfaces, hinge side, latch side and required clearances before assembly.
Assemble the HD frame
Use the supplied frame and internal corner hardware, keeping the gate square before the infill is fully secured.
Install T&G infill
Insert the ALU50 T&G privacy profiles into the channel system so mating edges interlock with no designed open gap.
Mount hinge hardware
Install and align the heavy-duty 5-inch 2-way support hinge according to the selected post or structural support condition.
Install stopper and access hardware
Position the L-shape stopper and coordinate the latch, lock or access-control hardware with the finished swing path.
Final alignment
Check squareness, swing, closure, fastener tightness and finish condition before placing the gate into service.
The gate kit is only one part of a correct opening.
Confirm finished dimensions
Measure the clear opening and determine whether the listed 4×6 configuration fits the completed site condition.
Select the support system
Choose the appropriate 2″, 2.75″ or 2″×3″ post/support condition based on the project design and mounting substrate.
Choose swing direction
Verify hinge side and swing path so the gate clears walls, landscaping, steps and adjacent circulation.
Coordinate latch or lock
Plan the selected latch, key lock or access hardware before finalizing frame and post positions.
Confirm privacy intent
This SKU is a no-gap T&G privacy gate. Select an open-slat model if airflow or intentional spacing is required.
Verify local requirements
Pool, egress, fire-zone and access-control projects can have additional requirements beyond the gate material itself.
See Aluglobus gate construction in motion.
Watch the Heavy-Duty gate system and Aluglobus construction approach in motion.
Full privacy without building the gate from wood.
Send the opening dimensions, photos and preferred swing direction before ordering. Aluglobus Aluminum Systems can help coordinate the correct frame, T&G infill, post and hardware package for the project.
Request project support ↗Call (888) 876-3006Technical answers before you order the ALU 50-60 T&G gate.
The questions below focus on the heavy-duty frame, no-gap T&G privacy, finish, fire behavior and installation planning.
What makes this different from a Universal DIY gate?
This SKU is the Heavy-Duty Contractor Line version. It uses a 4-inch HD USA aluminum gate frame and a heavy-duty 5-inch 2-way support hinge, giving the pedestrian leaf a dedicated heavy-duty frame and hardware package.What does “T&G NO GAP” mean?
T&G means tongue and groove. The mating edges of the aluminum privacy profiles interlock, so the design does not use the intentional 3/8-inch or 1/2-inch open spacing found on slat-style gate models.What aluminum alloy is used?
The gate system specifies 6063-T6 USA-made aluminum with an architectural exterior coating system.Is the gate non-combustible?
The aluminum substrate is identified as non-combustible, with no sustained ignition under normal fire exposure, smoke developed of 0 and an approximate melting range of 615–655°C. Complete project compliance still depends on the full assembly and local requirements.What finish is used on the woodgrain gate?
The product information references an architectural powder-coating process, AAMA 2604 finish materials and Cardinal Paint / TIGER. The visible surface is a woodgrain architectural finish over the aluminum gate system.Which posts can be used with the gate?
Available post options include 2-inch, 2.75-inch and 2-inch by 3-inch configurations. Final post selection should match the opening, substrate, hinge arrangement and project requirements.Can this gate be used with access-control hardware?
Latch, key-lock and low-voltage access-control configurations can be coordinated with the gate. Confirm hardware dimensions, clearances and loading requirements before ordering or drilling the frame.Send the opening dimensions and project photos. Build the gate package around the actual site.
