A 12′ × 6′ no-gap aluminum gate built for privacy and daily use.
This ALU50-60 T&G Heavy-Duty Double Swing Gate combines a contractor-grade 4-inch aluminum frame with horizontal tongue-and-groove infill for a continuous privacy surface. The interlocking T&G profile removes the open slat gap used on ALU20 and ALU40 designs, while 6063-T6 aluminum and the listed AAMA-2604 coating system are built for exterior performance.
Buy this gate ↗ View specifications ↓
NO GAP T&G PRIVACY SYSTEM · DOUBLE SWING
Nominal size12′ × 6′
ConfigurationHeavy-duty double swing
InfillALU50-60 T&G · no gap
Material6063-T6 aluminum
The same heavy-duty double gate in multiple woodgrain expressions.
Explore Ipe, Walnut and Yellow Oak wood-look finishes, plus an ALU60 woodgrain reference. Open any image for a larger view.

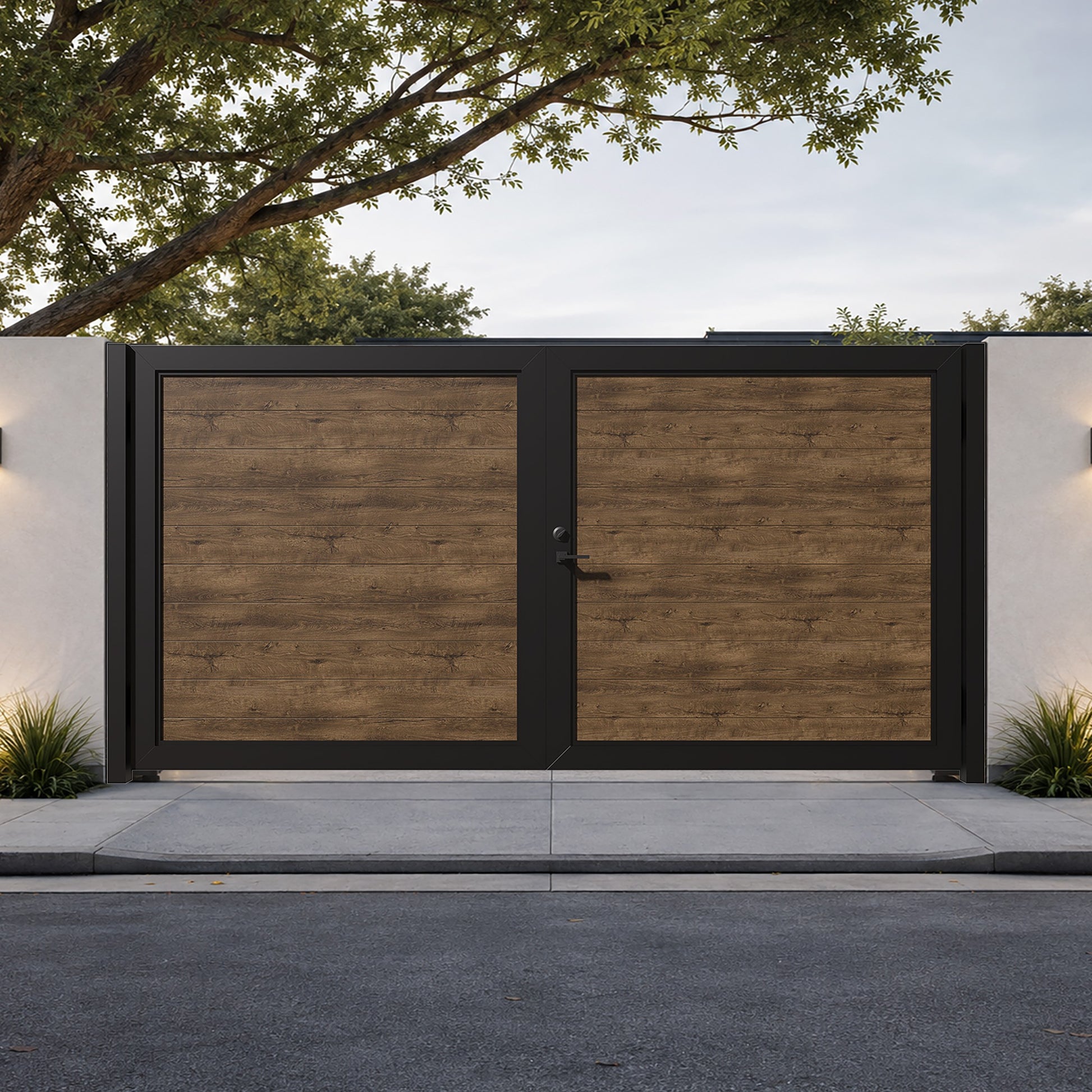

Ipe woodgrain12′ × 6′ double swing

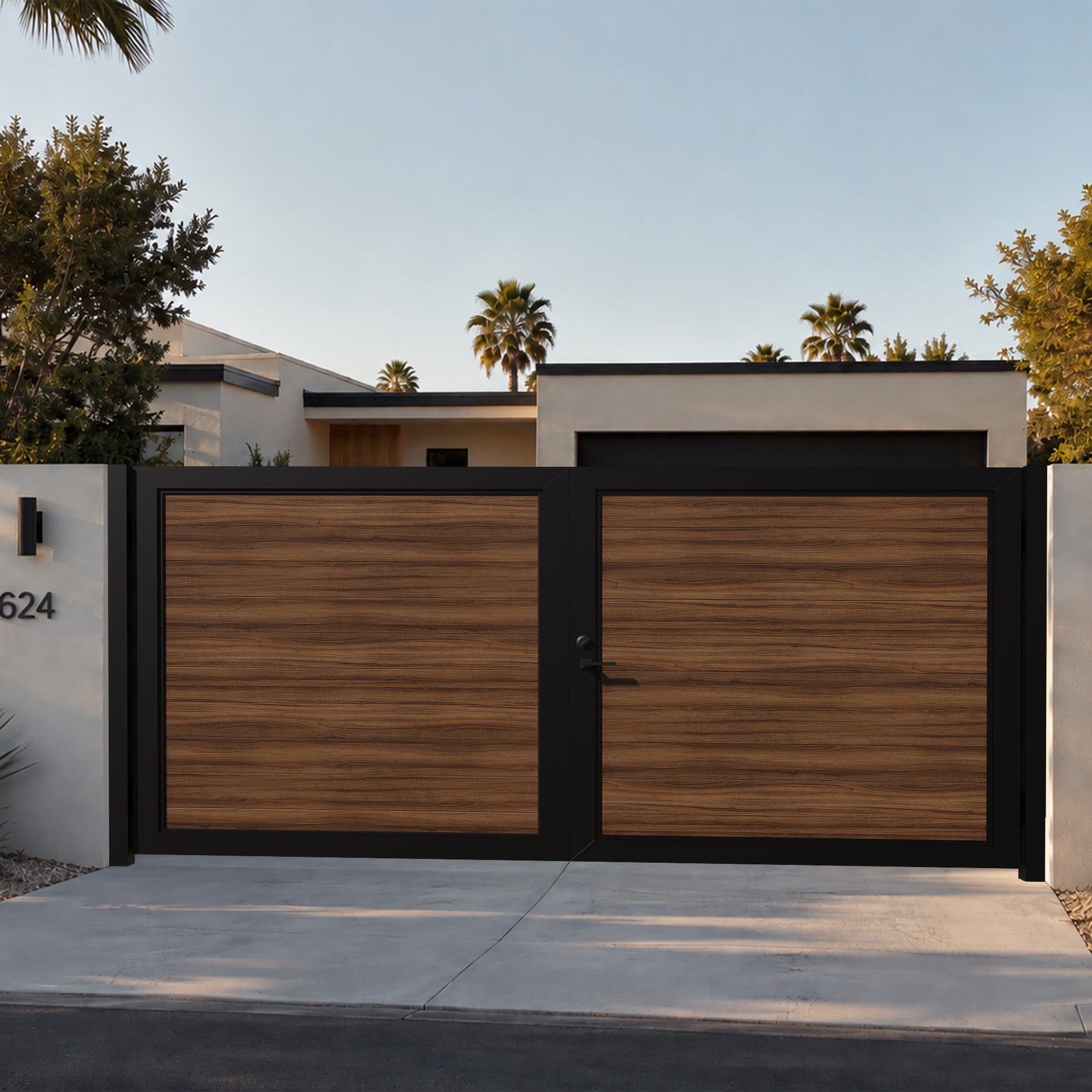

Walnut woodgrain12′ × 6′ double swing

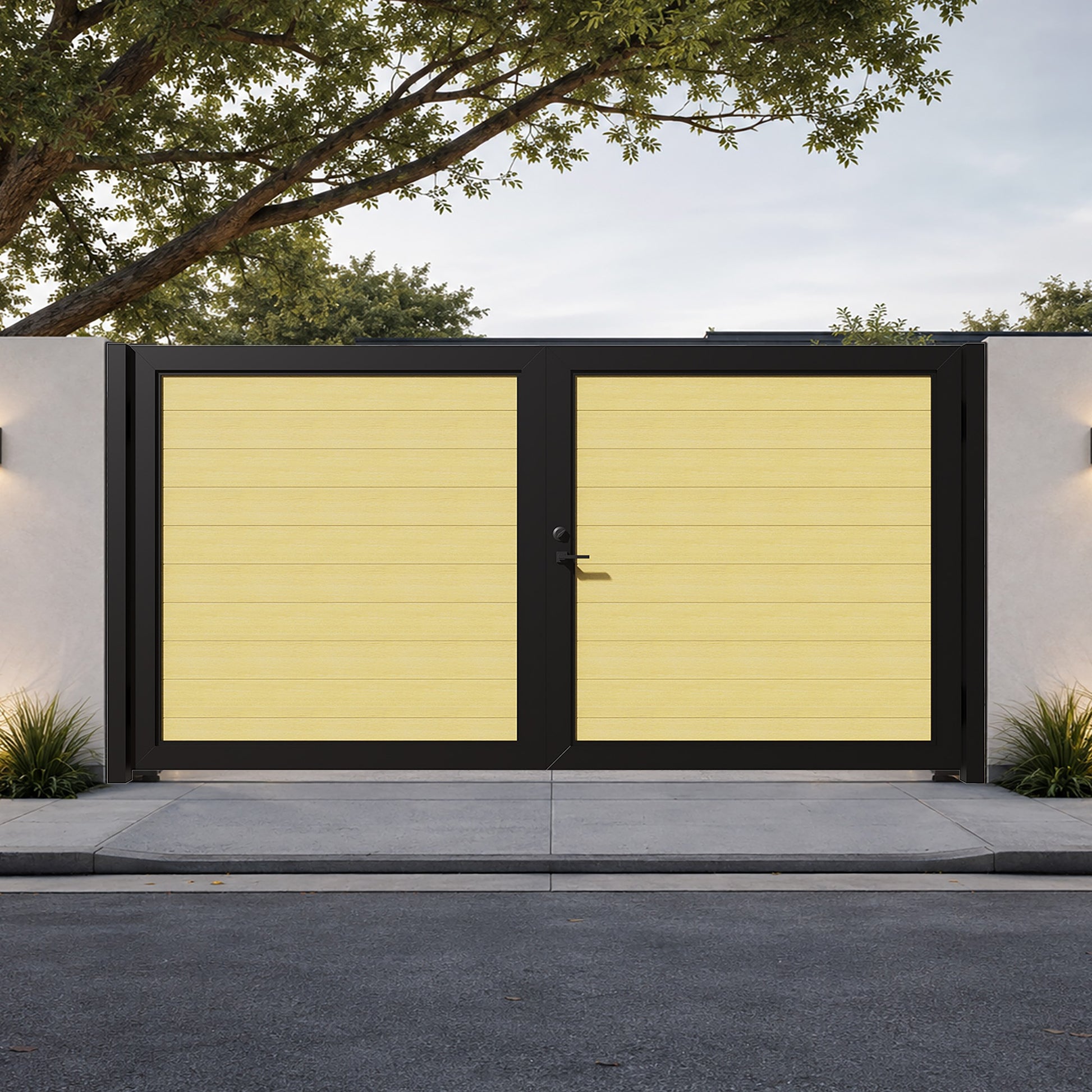

Yellow Oak woodgrain12′ × 6′ double swing

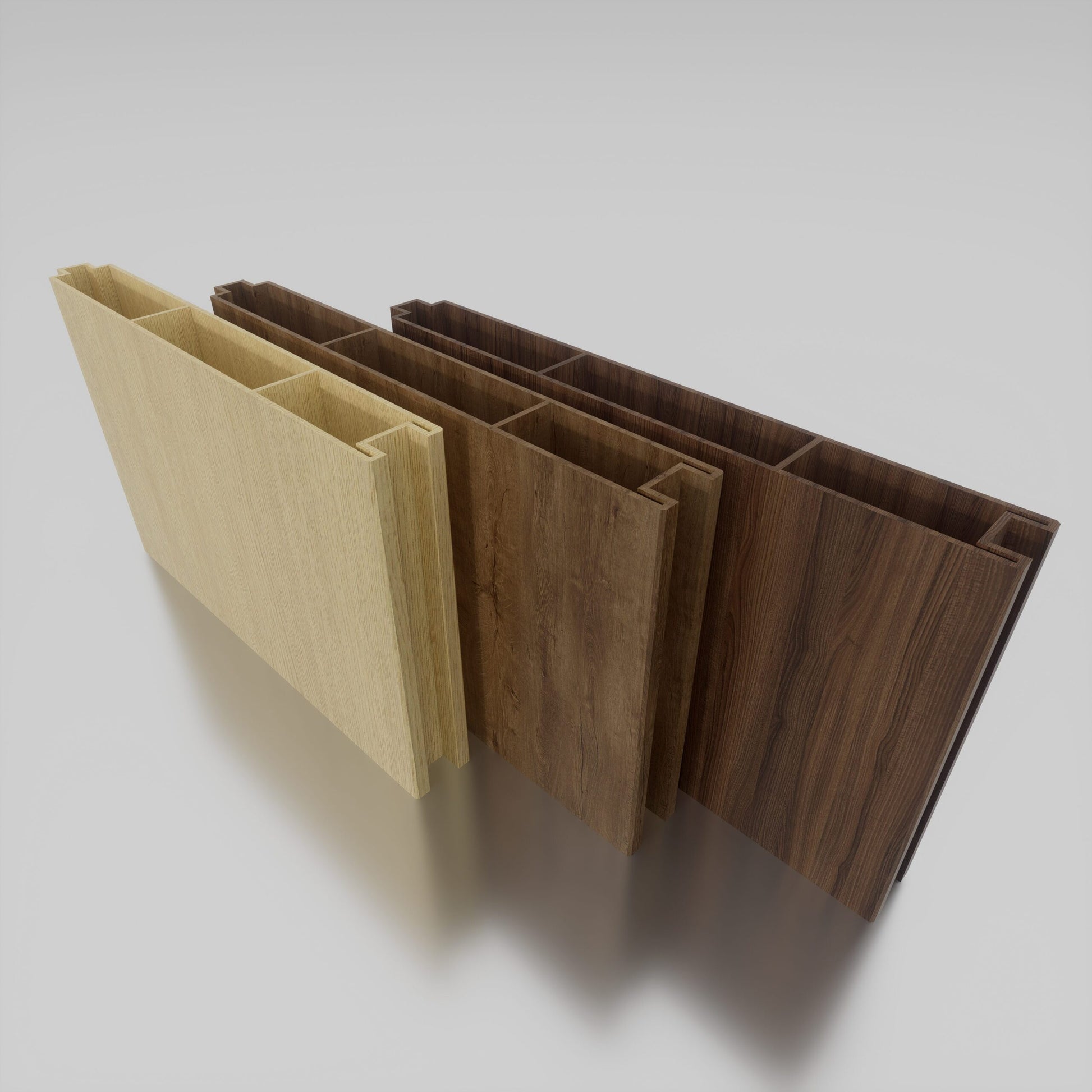

Woodgrain rangeT&G finish reference
The infill locks together instead of spacing apart.
Tongue-and-groove aluminum profiles interlock edge-to-edge, creating a more continuous surface across both leaves. That is the defining difference of this T&G gate. The privacy effect is designed into the profile itself rather than created by adjustable spaces between separate slats.
No-gap horizontal privacy The tongue-and-groove infill creates a NO-GAP privacy surface across the double-swing gate. Contractor-grade frame The system uses a 24-foot, 4-inch heavy-duty USA aluminum gate frame with inner corner brackets and channel support. Double-swing access Two gate leaves split the 12-foot nominal opening and provide a wide entry configuration for driveways and larger access points.Heavy-duty ALU50-60 T&G construction, 12′ × 6′ double swing.
This Contractor Line gate combines a heavy-duty frame with interlocking T&G infill for a full-privacy horizontal double-swing system.
NO-GAP T&G: The tongue-and-groove panels interlock edge-to-edge to create a continuous privacy surface without open slat spacing.- Product
- ALU50-60 T&G Woodgrain Heavy-Duty Pedestrian Gate
- Configuration
- Horizontal double swing
- Nominal size
- 12′ wide × 6′ high
- Category
- Contractor Line / heavy-duty gate
- Privacy system
- Tongue-and-groove aluminum · NO GAP
- Material
- 6063-T6 aluminum · USA made listing
- Characteristics
- Lightweight · excellent corrosion resistance
- Paint
- AAMA-2604 Cardinal Paint / TIGER
- Coating
- Architectural powder coating process
- Combustibility
- Non-combustible aluminum
- Ignition
- Does not burn under normal fire conditions
- Melting point
- Approximately 615-655 °C
- Smoke developed
- 0
- Colors
- Custom colors available
- Sizes
- Custom sizes available
Frame strength, hinges, finish and contractor-line assembly details.
Explore frame strength, hinge support, finish quality and contractor-line assembly details.
Full-frame strengthHeavy-duty gate frame
Panel compatibilityT&G system reference
Exterior finishArchitectural coating
Reinforced hinge supportDouble-swing hardware
Aluminum construction6063-T6 platform
On-site assemblyContractor-line kit
The core gate-frame, T&G panel and hardware package.
The 6.3 ALU50 T&G horizontal double-swing gate kit is built around the following frame, panel and hardware components. Finish and post selections should be confirmed for the order.
24′ 4″ HD gate frame
Heavy-duty USA aluminum gate-frame material used to build the two-leaf double-swing structure.
Inner corner brackets
Structural corner hardware used to keep the frame connections rigid and square during assembly.
Channel kit
Support channel components used as part of the gate-frame and panel assembly.
6.3 ALU50 T&G panels
Interlocking tongue-and-groove aluminum infill available in wood-look and solid-color finish options.
Heavy-duty support hardware
Includes the listed 5″ 2-way support hinge system, 6′ L-shape gate stopper and basic cane bolt.
Fasteners and finishing pieces
Includes #10 × 1″, #12 × 2″ BK and #10 × 3/4″ screw sizes. Confirm post and cap selection for the final opening.
Contractor-line hardware and components in one clear view.
Review the key frame, panel, post and fastener components used throughout the gate system.
Channel kit
Support channel components used within the gate-frame and panel assembly.
6.3 ALU50 T&G panel
Tongue-and-groove panel profile shown in a wood-look finish.
Black T&G panel option
Tongue-and-groove panel profile shown in a black finish.
2.5″ HD aluminum post
8-foot heavy-duty aluminum post with flat press cap. Confirm the post selection required for the site.
6′ L-shape gate stopper
Stop component used to help define the closed position of the double-swing system.
5″ 2-way support hinge
Heavy-duty hinge hardware listed for the two-leaf gate system.
24′ 4″ HD gate frame
Heavy-duty USA aluminum frame material for the double-swing gate structure.
#10 × 3/4″ screws
Fastener size used within the gate assembly.
A cleaner panel look because the horizontal profiles interlock.
The T&G system is the NO-GAP privacy option in this product family. Interlocking horizontal profiles create a more continuous surface across both leaves, giving the gate a cleaner, more unified architectural appearance.
Continuous horizontal face
Interlocking profiles create a more unified surface with fewer visual interruptions across each leaf.
Wood-look aluminum
Woodgrain finishes bring warmth to the gate while the underlying structural material remains aluminum.
Contractor-line support
A 4″ heavy-duty frame, support channel, corner hardware and 5″ 2-way hinges are built around regular gate operation.
Corrosion-resistant material
Aluminum avoids iron-oxide rust and provides excellent corrosion resistance for exterior gate applications.
Non-combustible aluminum
The structural material is non-combustible aluminum with smoke developed listed as 0.
Custom project options
Custom colors and custom sizes are available for non-standard project requirements.
See the horizontal T&G layout at full gate scale.
See the horizontal T&G layout, proportions and finish at full installed gate scale.

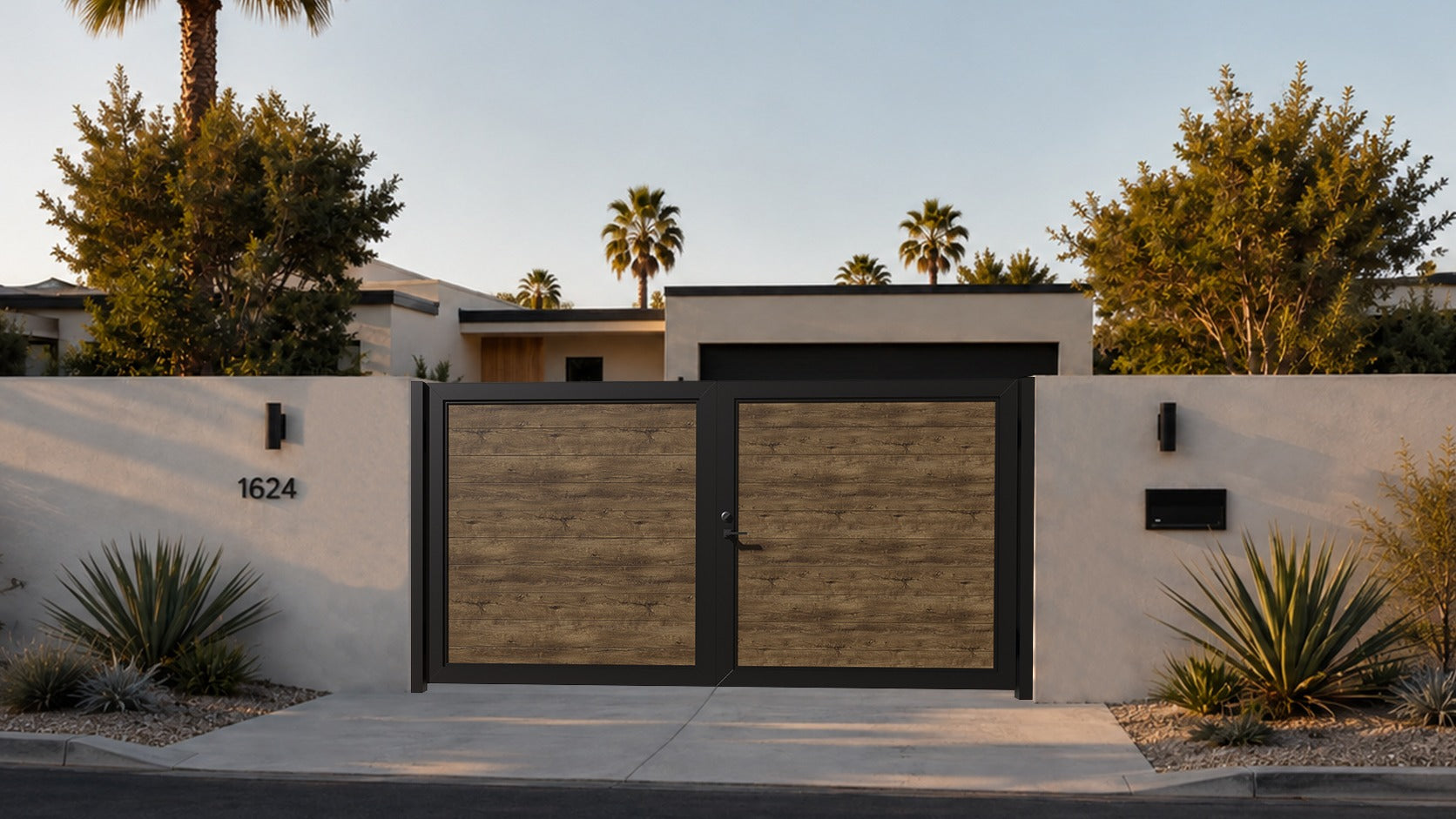

Installed gate viewHorizontal double swing
Installation detailT&G contractor-line gate
Build the heavy-duty frame first, then lock in the T&G privacy surface.
The installation sequence focuses on the heavy-duty Contractor Line frame and the interlocking NO-GAP T&G infill used by this gate.
Confirm the opening
Verify finished width, height, post or column conditions, swing direction, grade and required operating clearances before assembling either leaf.
Assemble the HD frame
Build each leaf square using the heavy-duty frame components, inner corner hardware and the fasteners specified for the kit.
Install the T&G panels
Fit the tongue-and-groove profiles so they interlock into the continuous no-gap horizontal surface. Keep both leaves aligned visually.
Set the hinges
Install and align the heavy-duty 5″ 2-way support hinges so both leaves swing freely without binding.
Set stops and closing hardware
Coordinate the listed gate stopper and cane bolt with the center meeting condition, latch or lock strategy and actual site grade.
Final alignment
Verify level, center reveal, closure, fastener tightness and swing clearances on both leaves before putting the gate into regular service.
See the ALU50-60 T&G gate system in action.
Watch gate construction, finished project details and the horizontal double-swing design in these Aluglobus product videos.
Plan the 12-foot opening as a complete gate system.
Measure finished opening
Confirm the clear width and height at multiple points. Do not build the gate from a rough opening assumption.
Confirm structural supports
Post or masonry conditions need to support the gate leaves, hinge loads and any automation equipment selected for the project.
Choose finish deliberately
Coordinate Ipe, Walnut, Yellow Oak, Teak, Black or another available custom finish with surrounding fence, cladding and exterior materials.
Plan both swing paths
Check vehicles, slopes, walls, landscaping and grade changes through the full arc of each gate leaf.
Choose access hardware
Plan latch, lock, cane bolt, center stop and any access-control hardware before the gate is finalized.
Coordinate automation early
If operators are planned, select them based on leaf geometry, weight, wind exposure and the mounting condition rather than adding them as an afterthought.
12′ × 6′ double swing. T&G privacy. No open slat gap.
Confirm your opening, post condition, woodgrain or color selection, swing direction and access hardware before ordering. Custom sizes and custom colors are available for projects outside the standard configuration.
Buy this gate ↗ Ask about sizingWhat to know before ordering the ALU50-60 T&G double gate.
Answers to common questions about the Contractor Line frame, NO-GAP T&G infill, materials, finishes and included hardware.
Is this a no-gap privacy gate?
Yes. This product is listed as a NO GAP ALU50-60 T&G gate. The tongue-and-groove profiles interlock to form the horizontal privacy surface, so the adjustable open gaps used on ALU20 and ALU40 slat systems do not apply to this SKU.Is this the Universal DIY gate or the heavy-duty Contractor Line?
This product is the heavy-duty Contractor Line 12′ × 6′ horizontal double-swing gate with interlocking T&G infill.What is the gate made from?
The gate uses 6063-T6 USA-made aluminum with architectural powder coating and AAMA-2604 Cardinal Paint / TIGER finish specifications, along with excellent corrosion resistance and non-combustible aluminum construction.Will the aluminum rust over time?
Aluminum does not form the red iron-oxide rust associated with steel and iron. Routine cleaning and hardware inspection are still recommended, especially in coastal environments.Can I customize the gate size or finish?
Yes. Custom colors and custom sizes are available. Confirm the finished opening and requested finish with Aluglobus before ordering a non-standard configuration.Does the kit include a locking mechanism?
The gate package includes a basic cane bolt. A separate latch, lock or access-control system can be planned based on the project requirements.Does the kit include the parts shown in the hardware section?
The gate package includes the heavy-duty frame, inner corner brackets, channel kit, ALU50 T&G panels, heavy-duty support hardware, cane bolt and multiple fastener sizes. Post and finish selections should be confirmed for the specific order before checkout.Send the opening dimensions and project photos before the frame is cut.
