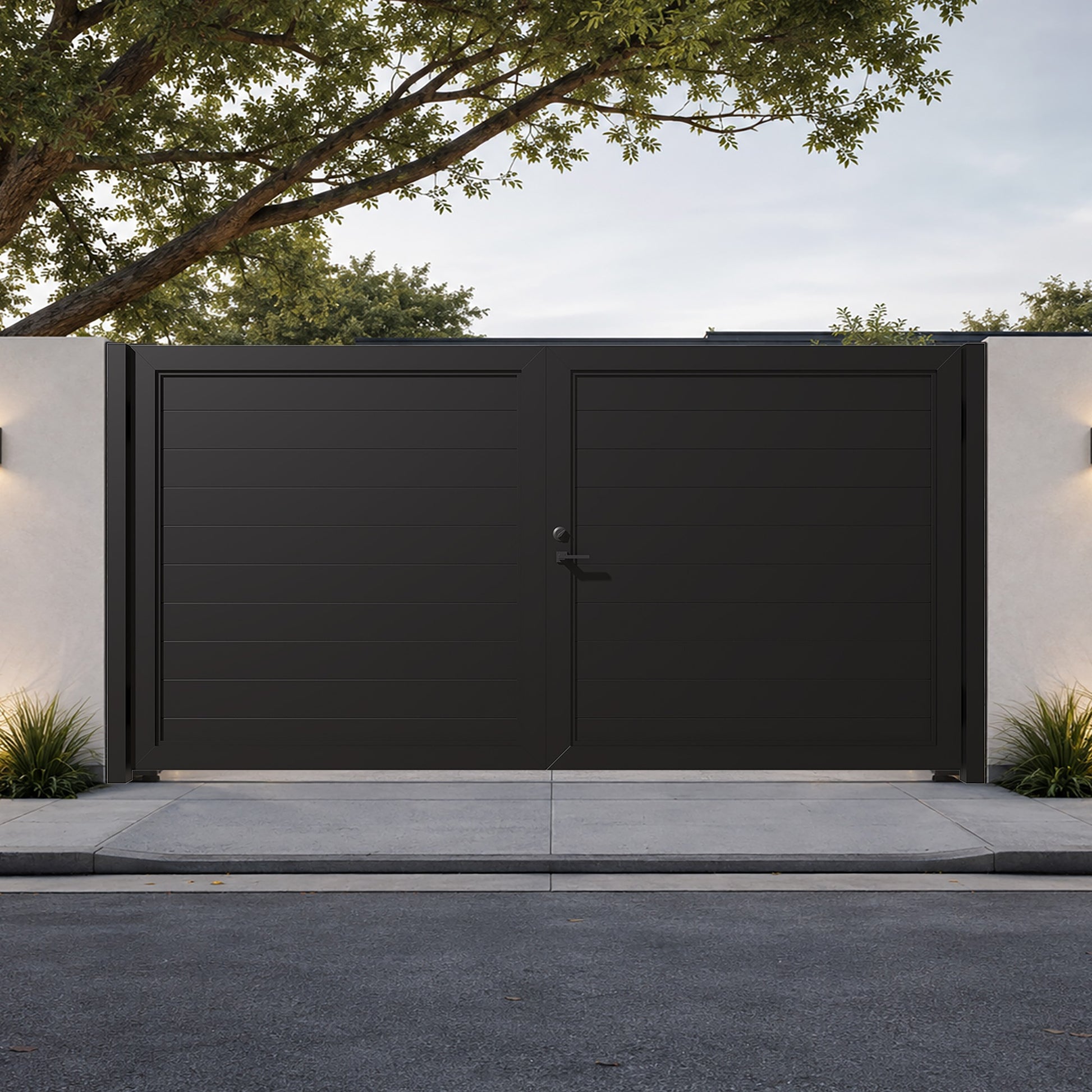

Heavy-duty framing. Full-privacy T&G. A 12′ × 6′ contractor-grade double gate.
The ALU60 T&G Contractor Line 12′ × 6′ HD Double Swing Gate Kit combines a reinforced aluminum frame with interlocking ALU60 tongue-and-groove slats for a clean, full-privacy entrance. Built for professional installers, builders and demanding residential projects, the system delivers a factory-direct architectural gate package with heavy-duty hardware and corrosion-resistant aluminum construction.
View product options ↗ View specifications ↓
Opening12 ft wide × 6 ft tall
ConfigurationHD double swing
Infill6″ ALU60 T&G
PrivacyInterlocking full-privacy surface
Material6063-T6 aluminum
Contractor Line strength for driveways, estates and commercial access.
The ALU60 T&G Contractor Line 12′ × 6′ HD Double Swing Gate Kit is designed for professional installers and homeowners who want a stronger aluminum gate platform with a refined modern appearance. Each leaf uses precision-fit ALU60 tongue-and-groove boards inside a reinforced heavy-duty frame engineered for stability, smooth operation and long-term exterior performance.
The interlocking T&G surface creates a seamless privacy face while the double-swing layout provides a broad 12-foot opening for vehicle access. The Contractor Line format reduces field fabrication, helps keep both leaves visually consistent and provides a factory-direct system that can be coordinated with posts, latches, stops and automation hardware.
- Product
- ALU60 T&G Contractor Line HD Double Swing Gate Kit
- Overall size
- 12′ wide × 6′ tall
- Configuration
- Two-leaf double swing gate
- Gate frame
- 4″ heavy-duty USA aluminum frame system
- Infill
- ALU60 T&G aluminum slats, 6″ profile
- Privacy
- Interlocking tongue-and-groove surface for full privacy
- Material
- Architectural 6063-T6 extruded aluminum
- Coating
- AAMA 2604 architectural exterior powder coating
- Corrosion resistance
- Excellent exterior corrosion resistance
- Combustibility
- Non-combustible aluminum substrate
- Zone 0 material use
- Non-combustible aluminum construction suitable for projects requiring non-combustible exterior materials
- Customization
- Multiple finishes, matching systems and project-specific options available
Frame strength, ALU60 T&G infill, coating and hinge support up close.
The heavy-duty Contractor Line combines reinforced aluminum framing, full-privacy T&G infill and professional swing-gate hardware into one coordinated system.
Full-Frame Strength
ALU60 T&G Infill
Long-Lasting Powdercoat
Reinforced Hinge Support
Premium Aluminum Construction
Contractor-Ready Installation
Pre-engineered for faster field installation and stronger gate leaves.
The HD Contractor Line is built to reduce jobsite fabrication while supporting the wider spans, hardware loads and daily use expected from a 12-foot double-swing entrance.
Pre-Fabricated for Faster Installation
Factory-prepared components and Contractor Line framing reduce field fabrication so installers can focus on alignment, mounting and final hardware setup.
Heavy-Duty 4″ Frame System
The 4-inch HD aluminum frame, internal reinforcement and bracing are designed to support wide double-swing leaves and maintain clean alignment.
Engineered for Strength & Durability
6063-T6 aluminum and AAMA 2604 exterior coating provide a corrosion-resistant, non-combustible and weather-ready gate platform.
The Contractor Line component package behind the double-swing system.
The product configuration combines the HD gate-frame system, ALU60 T&G infill, stops, fasteners and closing hardware needed to complete the two-leaf gate package.
Post options shown with the product configuration2″, 2.75″ and 2″ × 3″ profiles are listed as post options. Final hinge-post selection should be coordinated with the opening, gate loading, mounting condition and any automation requirements.
Frame24′ Gate Frame, 4″ HD USA Aluminum ReinforcementInner corner bracket ChannelChannel Kit StopsTwo 6′ L-shape gate stopper components Closing hardwareBasic cane bolt Fasteners#10 × 1″ screws Fasteners#12 × 2″ black screws InfillALU60 T&G Black, 6 ft Gate packageDual aluminum gate-frame leaves Swing hardwareHeavy-duty hinges and latch systemHeavy-duty aluminum gate details from multiple angles.
Additional views highlight the Contractor Line frame, ALU60 infill, hinge area and finished aluminum gate applications.
Heavy-duty gate project detail

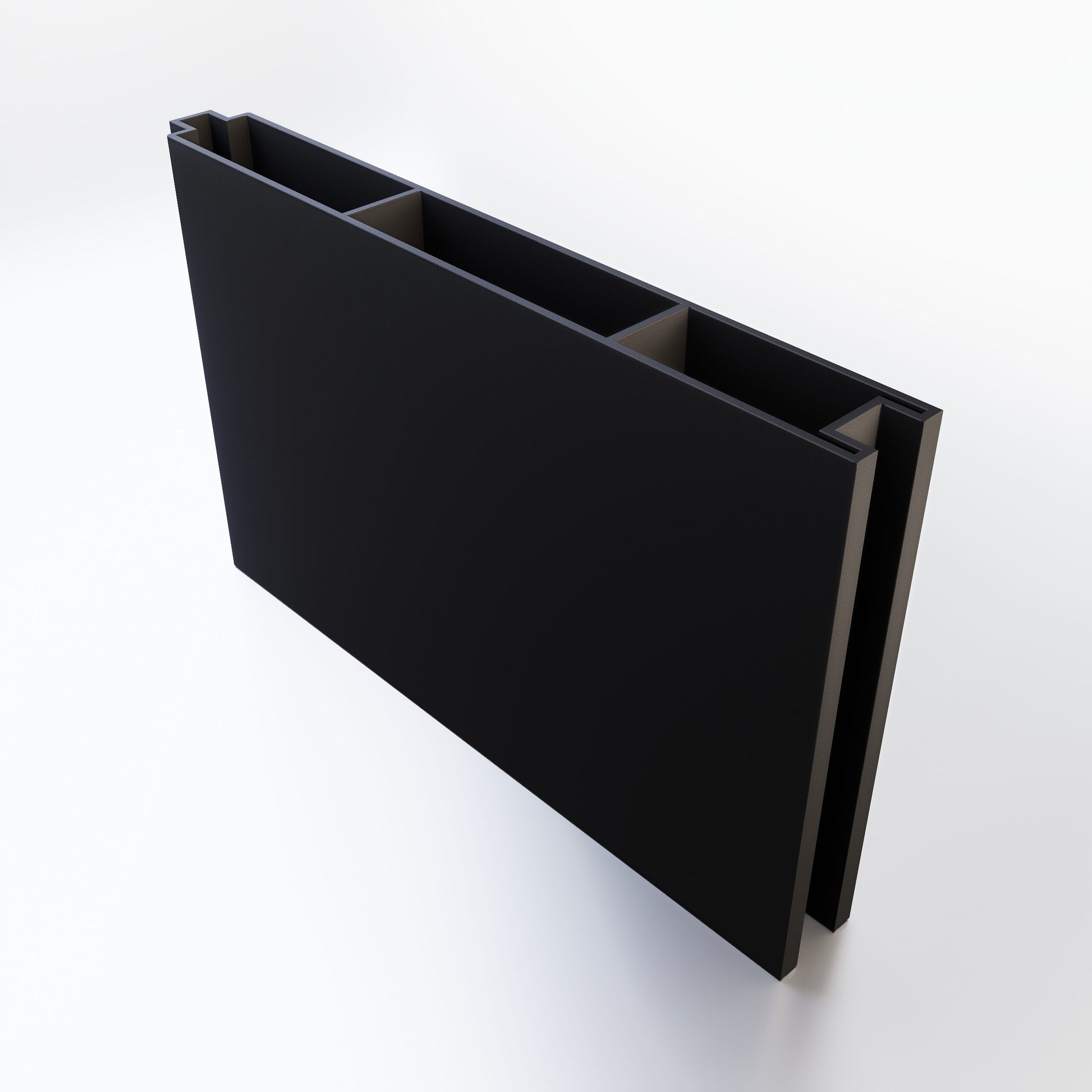

ALU60 T&G interlocking profile
Double-swing frame and hinge detail

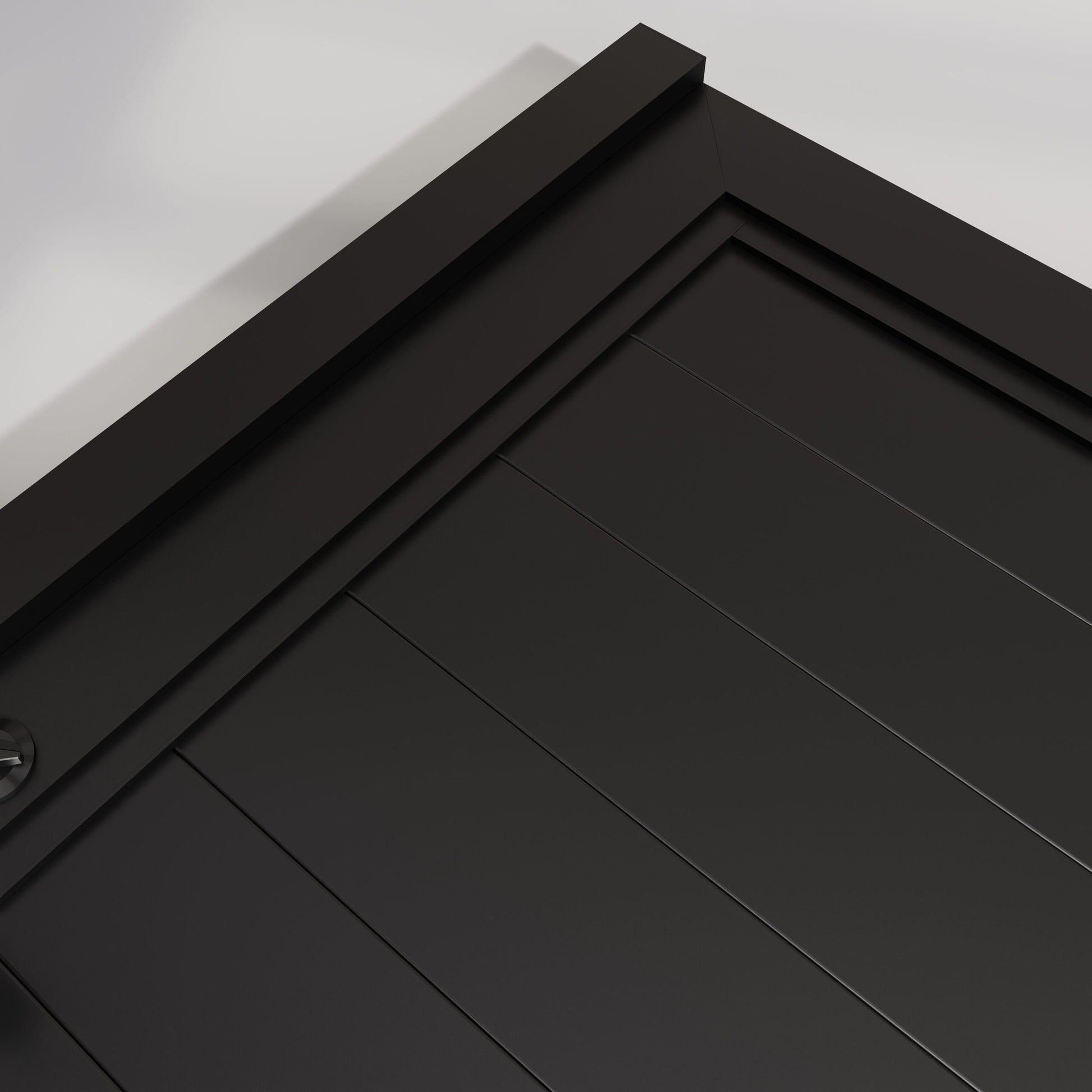

Contractor Line construction detail

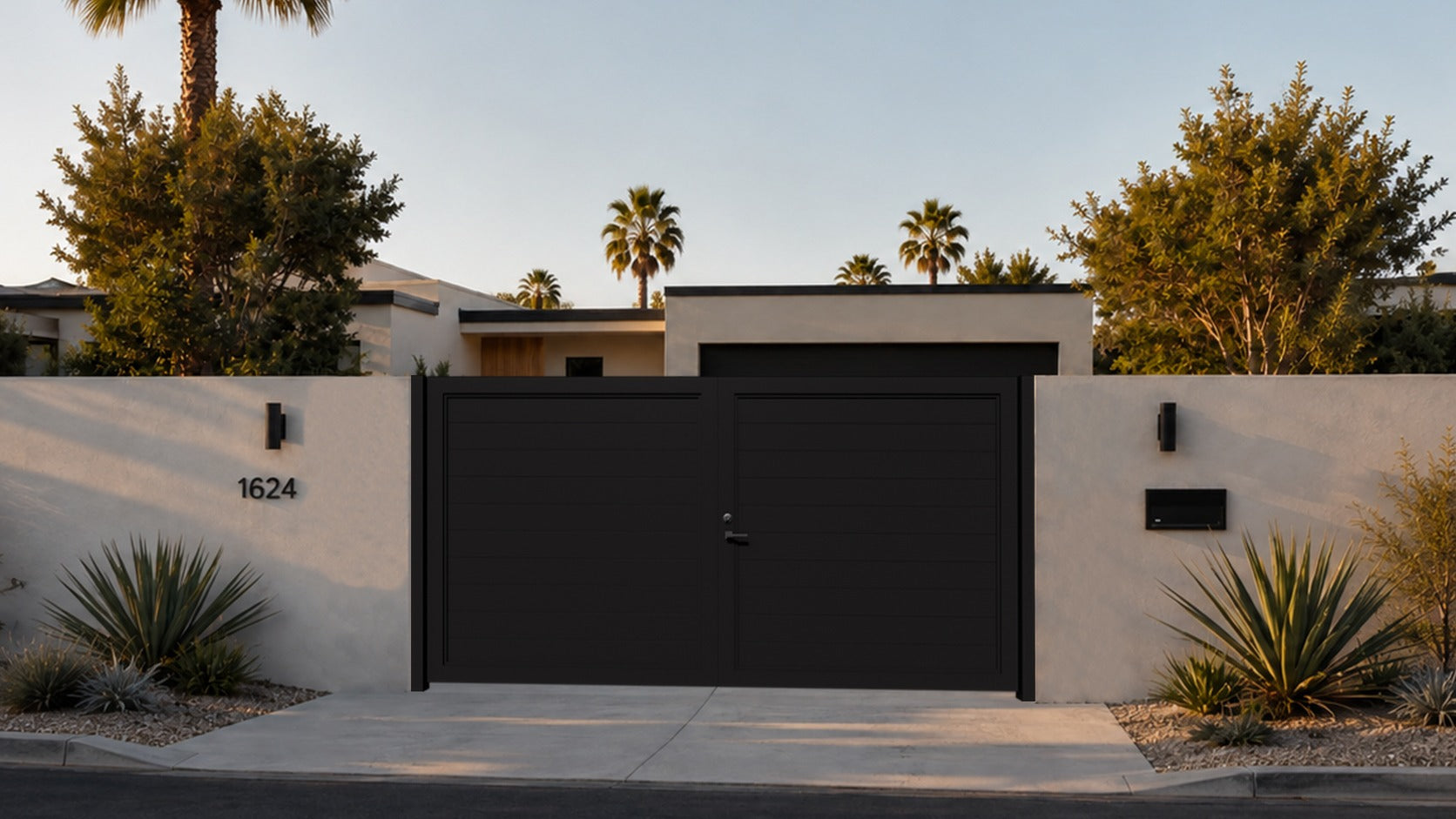

Finished aluminum gate application
Field installation detail
Why contractors, builders and homeowners choose the ALU60 HD gate system.
The Contractor Line is designed around structural consistency, low-maintenance aluminum and a clean architectural finish.
01Architectural-grade strength
6063-T6 aluminum provides a strong, dimensionally stable gate structure with a favorable strength-to-weight ratio for large swing-gate leaves.
02No iron-oxide rust and no wood rot
The aluminum structure avoids the red-rust mechanism of steel and the rot, swelling and termite concerns associated with structural wood.
03Heavy-duty framing
The HD frame uses reinforcement and bracing to help maintain alignment across wider openings and repeated daily operation.
04AAMA 2604 exterior coating
The architectural powder-coat system supports long-term color retention, UV resistance and exterior durability.
05Efficient installation
Pre-engineered Contractor Line components reduce jobsite fabrication and help installers create repeatable results across multiple projects.
The ALU60 T&G surface creates clean horizontal lines that coordinate with modern aluminum fencing, wall cladding, privacy screens, concrete walls and contemporary architecture.
A versatile HD double gate for residential, community and commercial access.
The 12-foot double-swing layout supports broad vehicle access while the interlocking ALU60 T&G face provides privacy and a consistent architectural appearance.
01Driveway gates
A wide two-leaf entrance for residential driveways, estates and modern homes.
02Courtyards & backyards
Use the double-swing format for larger yard, courtyard and service openings that need full-privacy aluminum infill.
03Gated communities
Coordinate multiple aluminum gates and matching fence systems for a consistent development-wide exterior design.
04Commercial access
Suitable for parking areas, private access roads, multi-unit properties and light-commercial entry points.
05Architectural projects
Integrate the gate with modern fencing lines, concrete walls, cladding systems and privacy-screen applications.
Interlocking ALU60 infill inside a reinforced HD aluminum frame.
The system is engineered to combine a clean privacy surface with the structural reinforcement expected from a Contractor Line gate.
6063-T6 aluminum frame and boardsThe aluminum alloy provides dimensional accuracy, strength and corrosion resistance for exterior gate construction. Interlocking T&G surfaceEach ALU60 board engages the next for clean alignment, structural continuity and a full-privacy gate face. HD reinforcement and bracingInternal reinforcement and 45-degree bracing help the gate leaves resist sagging, twisting and alignment loss. Architectural finish optionsMatte black texture, charcoal, bronze and custom colors can be coordinated to match the project aesthetic. Decorative and matching systemsProject designs can coordinate laser-cut details, glass, woodgrain aluminum, matching pedestrian gates and matching fence panels where appropriate. Automation planningThe HD swing-gate platform can be coordinated with powered entry systems. Verify the selected operator, hinge geometry, stops, posts and mounting requirements before installation.Material performance for projects where exterior fire behavior matters.
The product uses an aluminum metal substrate and is listed for non-combustible exterior-material applications, including Zone 0 defensible-space planning where non-combustible materials are required.
Material compositionArchitectural 6063-T6 extruded aluminum CombustibilityNon-combustible metal substrate Ignition behaviorDoes not ignite or sustain flame under normal fire exposure Flame contributionDoes not contribute to flame spread as a metal substrate Smoke developmentDoes not generate smoke as a metal substrate Melting pointApproximately 615 to 655 °C, or 1,139 to 1,211 °F Ember resistanceWill not produce burning embers Zone 0 suitabilityNon-combustible aluminum construction appropriate for applications requiring non-combustible exterior materialsPlan the 12-foot opening, posts, swing clearances and access hardware before mounting.
The Contractor Line is designed to minimize field fabrication. The installation sequence below preserves the original six-step structure while matching the actual ALU60 T&G heavy-duty double-swing system.
Before installation: verify the finished opening, post or wall condition, hinge locations, gate-leaf swing direction, center meeting condition, grade clearance, stop locations and any automation requirements.Preparation
Organize the gate leaves, ALU60 T&G components, heavy-duty hinges, stops, cane bolt, latch hardware and fasteners in a clean work area. Confirm the opening before mounting.
Frame and leaf planning
Confirm both heavy-duty gate leaves are square and identify the hinge side, center meeting edge and finished clearances for the 12-foot double-swing opening.
ALU60 T&G infill
Install or verify the interlocking ALU60 tongue-and-groove boards so the privacy surface remains aligned, fully engaged and visually continuous across each leaf.
Hinge installation
Attach and align the heavy-duty hinges to the structural posts and gate frames. Set both leaves at the required height and verify free movement through the full swing path.
Stops, latch and cane bolt
Install the gate stops, latch components and cane bolt as required by the closing condition. Coordinate automation brackets and hard stops before final adjustment when powered operators are planned.
Final alignment and hardware check
Test both leaves, verify the center relationship and ground clearance, tighten all hardware, lubricate hinge points where required and clean the finished aluminum surfaces.
For contractor projects, the pre-engineered package reduces welding and field modification. When ordering, confirm finish, in-swing or out-swing orientation, post configuration, latch or lock requirements and any automation accessories. Nationwide shipping is available from Aluglobus facilities.
Coordinate the T&G infill, 4″ HD frame and swing hardware as one system.
The gate should be planned as a complete assembly rather than treating the slats, frame and hinges as unrelated parts. The ALU60 T&G profile provides the privacy surface, while the reinforced Contractor Line frame carries the leaf and hardware loads.
ALU60 profile: 6-inch tongue-and-groove aluminum infill for a seamless privacy face. HD frame: 4-inch heavy-duty aluminum frame construction with reinforcement for wide swing-gate leaves. Hardware: Heavy-duty hinges, latch components, stops and cane bolt coordinate the two-leaf closing condition. Automation: Operator selection should be coordinated with post strength, hinge geometry, stops and gate-leaf movement.
See Aluglobus aluminum gate construction and finished systems in action.
Watch the gate-system videos for a closer look at aluminum construction, installation details and completed gate applications.
Build the 12′ × 6′ entrance around a heavy-duty aluminum frame and full-privacy ALU60 T&G.
Confirm the finished opening, swing direction, post condition, closing hardware and automation requirements before ordering the gate package.
Buy this gate ↗ Ask about project sizingWhat to know before ordering the ALU60 T&G Contractor Line HD double gate.
Review the included components, automation planning, aluminum strength, maintenance and matching-system options before finalizing the project.
What’s included in the HD Double Swing ALU60 T&G Contractor Line 12×6 Double Swing Gate Kit?
The gate package includes dual aluminum gate frames, ALU60 T&G aluminum slats, mounting hardware and brackets, heavy-duty hinges, latch components and assembly information. The product configuration also lists the 4-inch HD frame material, inner corner bracket, channel kit, L-shape gate stops, cane bolt and fastening hardware. Optional posts and automation components should be selected for the actual project requirements.Can I automate this gate?
Yes. The heavy-duty double-swing format can be coordinated with many swing-gate automation systems. Confirm the specific operator, gate weight and geometry, hinge positions, structural posts, opening direction and hard-stop requirements before purchasing or mounting an operator.Is aluminum strong enough for a driveway gate?
The gate uses 6063-T6 architectural aluminum with heavy-duty Contractor Line framing and reinforcement. This provides a strong strength-to-weight ratio while avoiding iron-oxide rust and supporting the large double-swing configuration.What maintenance is required?
Routine maintenance is limited. Rinse the powder-coated aluminum as needed, especially in coastal or high-deposit environments, inspect hinge and latch hardware periodically, keep fasteners tight and lubricate moving components according to the hardware manufacturer’s recommendations.Do you offer matching pedestrian or fence panels?
Yes. The ALU60 T&G system can be coordinated with matching pedestrian gates and aluminum fence panels for a consistent property line. Finish and project-specific customization can also be discussed with Aluglobus before ordering.Send the opening dimensions, site photos and hardware plan before the first gate leaf is mounted.
