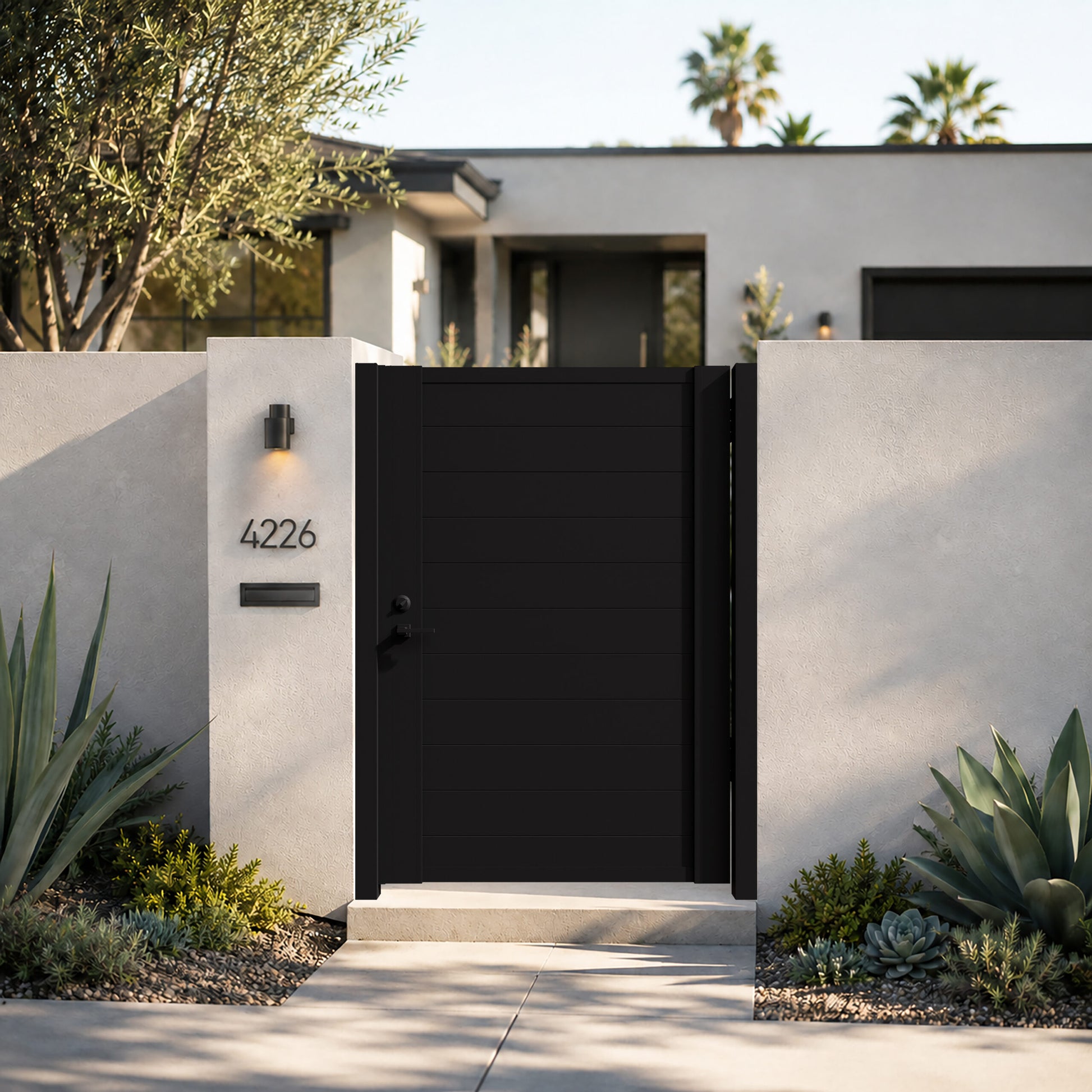

ALU 60 T&G Black 4×6 Heavy-Duty Pedestrian Gate Kit
A single-swing, no-gap aluminum privacy gate built around a 4-inch heavy-duty frame, ALU60 tongue-and-groove infill, 6063-T6 aluminum, and heavy-duty hinge support.
4×6 ft. Single swing No-gap T&G 6063-T6 aluminum AAMA 2604 finish 4×6 · ALU60 T&G · Heavy Duty Configuration4×6 single-swing pedestrian gate PrivacyInterlocking T&G, no intentional gap Frame4″ Heavy-Duty aluminum gate frame Hinge5″ heavy-duty 2-way support hinge FinishBlack architectural powder coating
Full-Frame Strength
Contractor-Line Gate Architecture
Exterior Powder-Coat Finish
Reinforced Hinge Support
6063-T6 Aluminum Construction
Field Assembly & Alignment
The frame, infill, hinge and support condition work as one gate system.
This is the Heavy-Duty Contractor Line version of the ALU60 T&G pedestrian gate, not the Universal DIY frame. The 4×6 format keeps the opening pedestrian-scale while the no-gap tongue-and-groove infill creates a solid privacy surface. Final performance depends on a square frame, a rigid hinge-side support, correct clearances and proper hardware alignment.
Before cutting or drilling: verify the finished opening, hinge side, swing direction, support condition, latch plan and actual packaged component lengths. Field conditions determine the final installation layout.- Nominal gate size
- 4′ wide × 6′ high
- Configuration
- Single swing pedestrian gate
- System
- ALU60 T&G Heavy-Duty Contractor Line
- Infill
- ALU60 tongue-and-groove black aluminum
- Privacy
- No-gap interlocking T&G layout
- Material
- 6063-T6 architectural aluminum
- Frame
- 4″ Heavy-Duty USA aluminum gate frame
- Hinge
- 5″ heavy-duty 2-way support hinge
- Finish
- AAMA 2604 architectural powder coating
- Post options
- 2″, 2.75″ and 2″×3″ aluminum post families
Keep the frame square
Accurate diagonal measurements and rigid corner connections matter before the infill and hardware are finalized.
Build around the hinge side
The wall, post or structural support receiving the hinges must be appropriate for the gate and the actual mounting condition.
Plan operating clearance
Confirm finished ground clearance, swing path, latch-side clearance and stopper position before final tightening.
Built around a real gate frame, not loose infill with hinges.
Field-assembled Contractor Line
Heavy-Duty framing and hardware are assembled around the actual opening and support condition.
No-gap ALU60 T&G privacy
Interlocking tongue-and-groove aluminum creates a clean, continuous black gate face without intentional slat spacing.
Architectural aluminum system
6063-T6 aluminum and AAMA 2604 powder coating are used for durable exterior performance and low maintenance.
What makes the 4×6 ALU60 T&G gate a Contractor Line system.

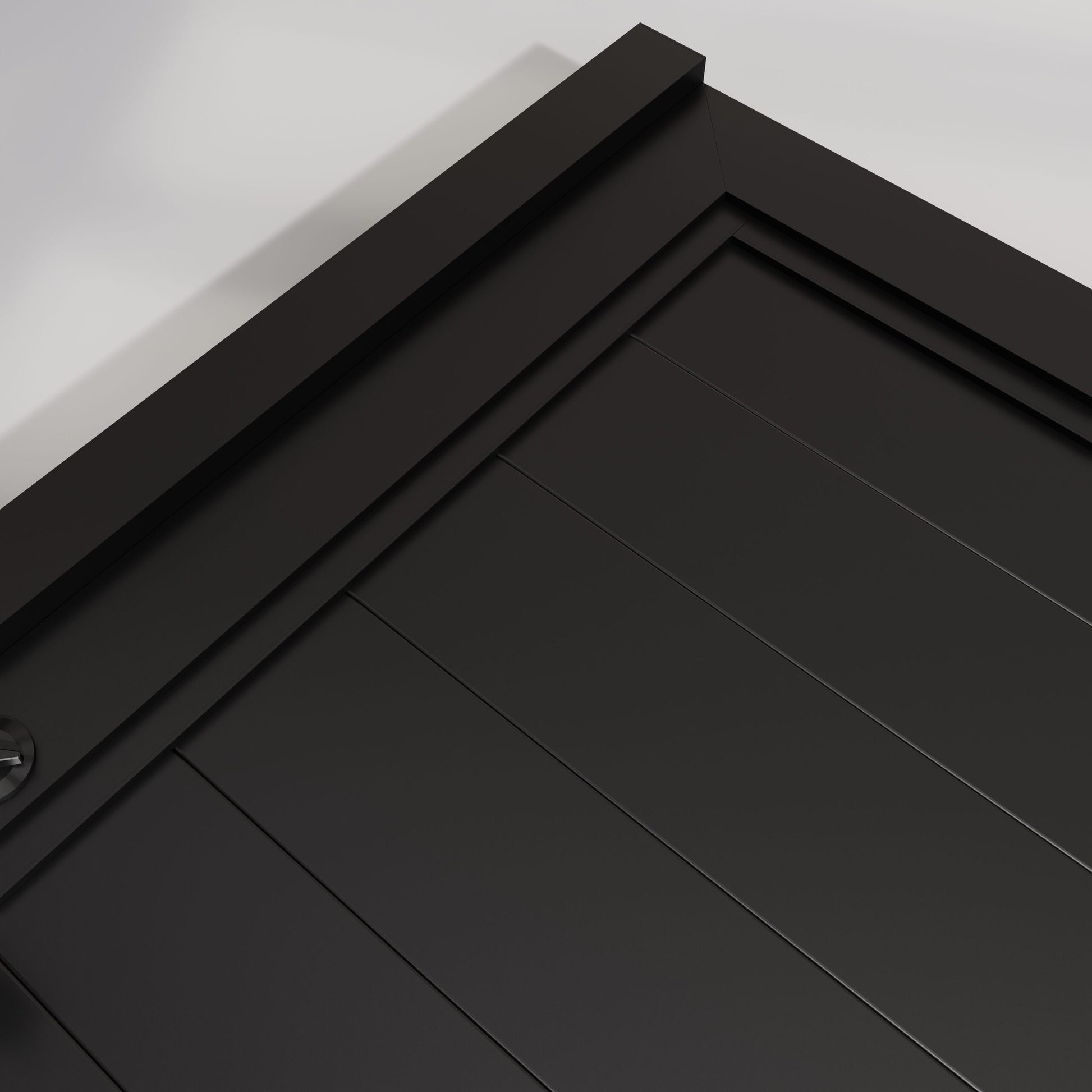

4″ Heavy-Duty gate frame
The frame carries the gate as a framed assembly and provides the structure for the T&G infill, hinges and latch-side geometry.

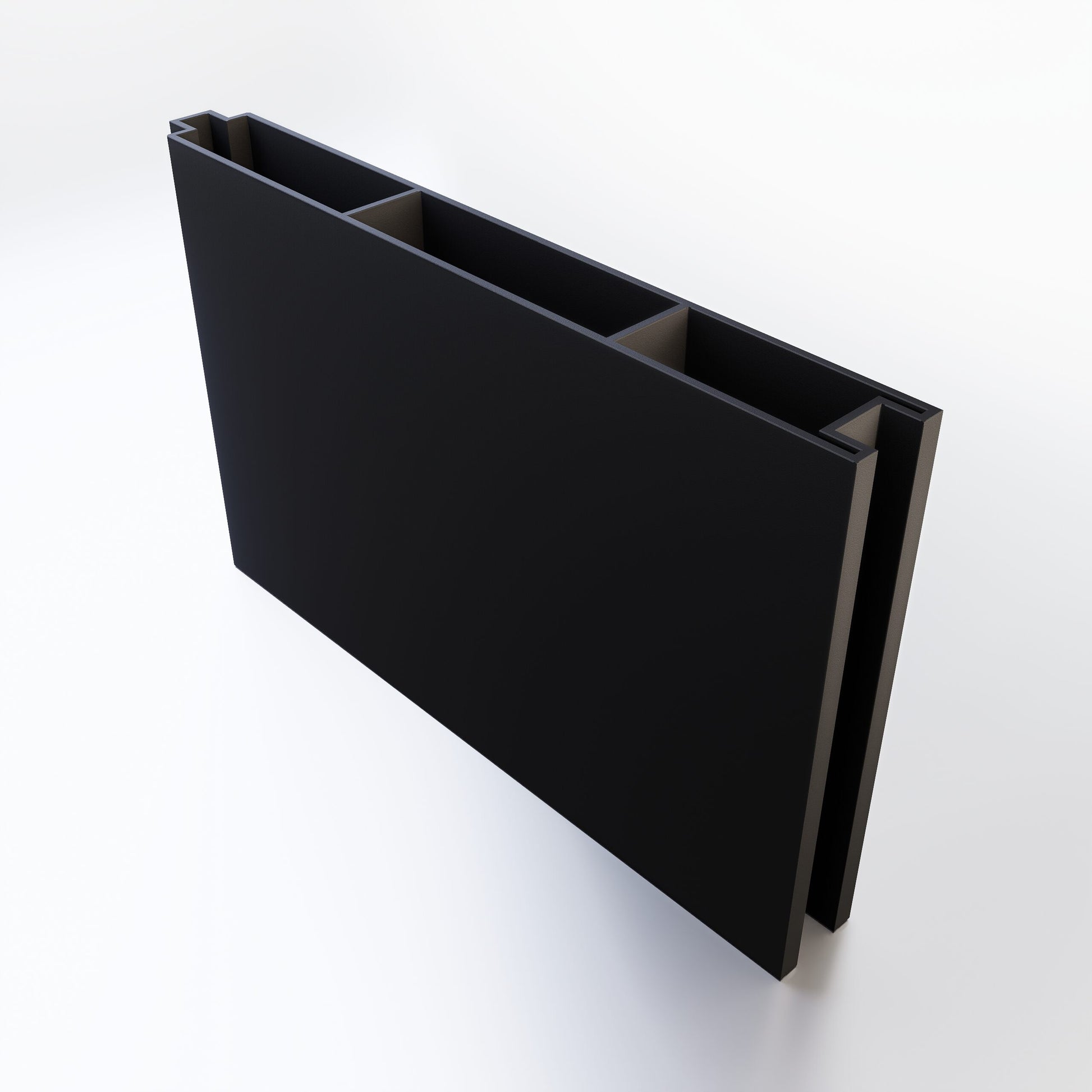

ALU60 T&G black aluminum
Interlocking tongue-and-groove boards form the privacy surface without the open spacing used by slat gate systems.
5″ heavy-duty 2-way support hinge
Hinge alignment and the support behind it are critical to smooth swing, consistent clearances and long-term adjustment.
Project-specific post or wall condition
Available post families include 2″, 2.75″ and 2″×3″ options. The correct support depends on the actual site and mounting plan.
Core components listed for this Contractor Line gate.
The gate package lists the following component families for the ALU60 T&G 4×6 Heavy-Duty gate. Exact cut lengths, quantities and site-specific support parts should be checked against the shipment and installation plan before fabrication begins.
Important: the 20′ frame extrusion is stock material used to build the gate frame. Do not treat every listed stock length as a finished installed dimension. 20′ Gate Frame 4″ HD USA AluminumHeavy-Duty frame extrusion stock for gate fabrication. Inner corner bracketInternal corner connection hardware for frame assembly. Channel kitChannel components used with the gate and infill system. 6′ Gate stopper, L-shapeL-shaped stopper component for final gate operation. Heavy-duty 5″ 2-way support hingeHeavy-Duty hinge hardware for the single-swing gate. #10×1″ screwsFasteners listed with the gate kit hardware. #12×2″ black screwsLonger black fasteners listed for Heavy-Duty connections. #10×3/4″ screwsShort fasteners listed for gate assembly details. ALU60 T&G Black 6FTBlack tongue-and-groove aluminum infill component. Top rail 6FT BlackBlack top-rail component listed with the gate package. Post options2″, 2.75″ and 2″×3″ aluminum post families. Project hardware checkConfirm latch, lock, mounting anchors and site-specific support hardware separately where required.Heavy-Duty framing, full privacy and a low-maintenance aluminum exterior.
Framed gate construction
The gate is built around a dedicated frame so hinges, infill and latch-side geometry work as one assembly.
No-gap privacy
ALU60 tongue-and-groove infill creates a solid visual barrier without the deliberate gaps used in slat systems.
Low maintenance
Aluminum avoids the rust behavior of ferrous steel and does not require the staining or sealing associated with real wood.
Exterior powder coating
AAMA 2604 architectural powder coating supports long-term exterior color and finish performance when properly maintained.
Contractor repeatability
A defined frame, T&G infill and hardware system helps crews build around repeatable components while still adapting to the actual opening.
See how Aluglobus approaches aluminum gate construction.
Use the video as a system reference, then confirm the exact 4×6 opening, hinge side, support condition and hardware plan for this ALU60 T&G Heavy-Duty gate before installation.

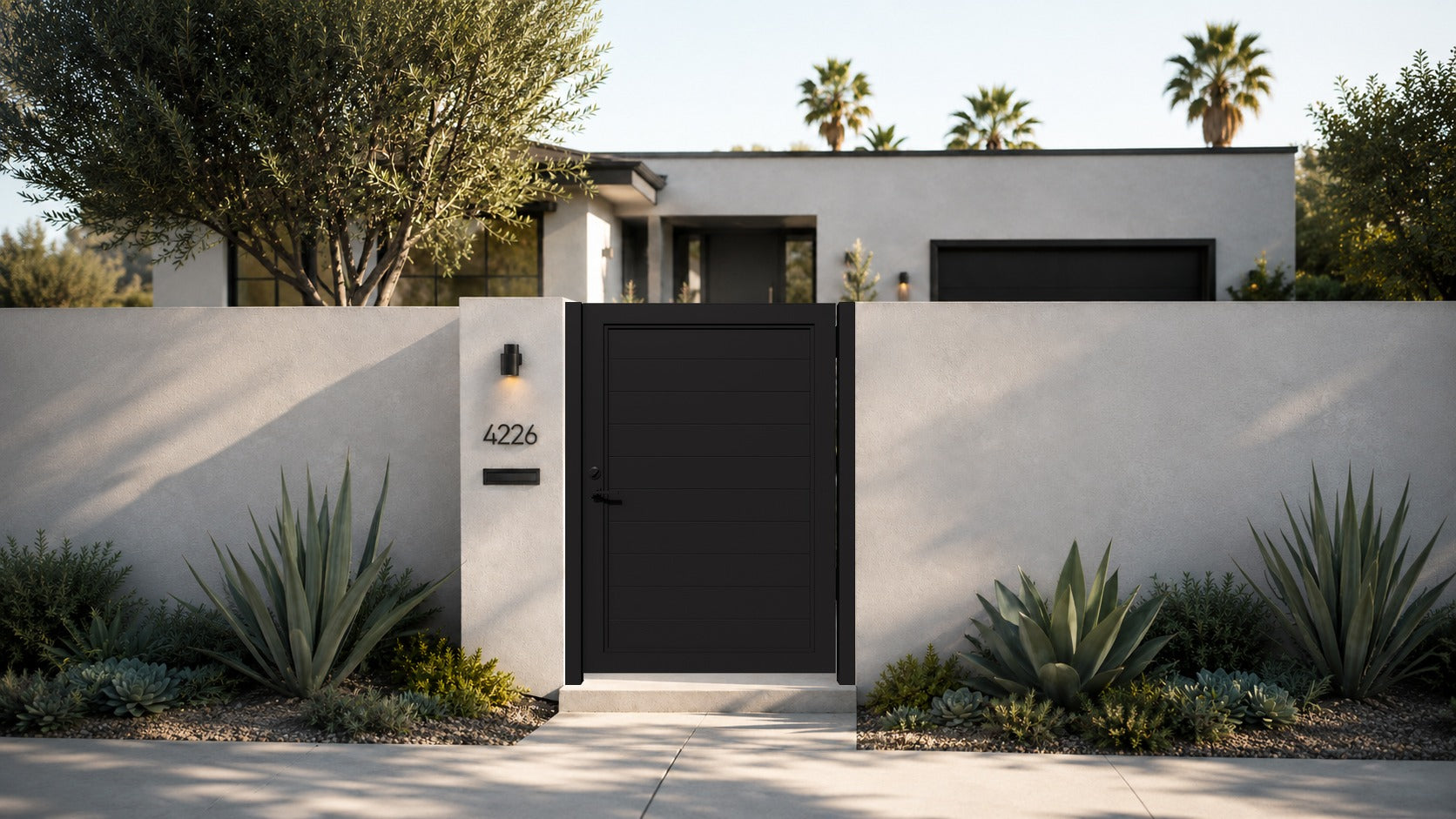

A black 4×6 aluminum privacy gate for pedestrian access points that need a framed, solid look.
Side-yard access
Use the 4×6 single-swing format for controlled pedestrian access between the front and rear of a property.
Private pedestrian entries
The no-gap ALU60 T&G face helps create a clean, private entry rather than an open slat appearance.
Contractor fence projects
Coordinate the gate with ALU60 T&G fence or related Aluglobus aluminum systems where a consistent architectural language is required.
Residential and light commercial
Suitable for projects that need durable aluminum construction, a modern black finish and daily pedestrian operation.
Architectural aluminum instead of wood or ferrous steel.
6063-T6 aluminum + AAMA 2604
The gate system uses 6063-T6 aluminum with an architectural powder-coated exterior finish. The black finish creates a clean contemporary appearance while aluminum provides corrosion resistance and low routine maintenance.
- No sanding or staining associated with real wood.
- Aluminum does not rust like iron-based gate materials.
- Architectural powder coating is intended for exterior exposure.
Non-combustible metal substrate
Aluminum is a non-combustible metal substrate. For defensible-space or Zone 0 projects, compliance must be evaluated for the complete installed assembly, nearby materials, clearances and local requirements. Final acceptance belongs to the applicable authority having jurisdiction.
- Non-combustible aluminum should not be interpreted as a fireproof complete assembly.
- Combustible adjacent materials can affect a complete project condition.
- Confirm local code requirements before relying on a material claim for approval.
Build the gate around the finished opening, not around a guessed 4×6 rectangle.
The listed size identifies the gate kit format. Final field layout still depends on hinge clearances, latch-side clearances, finished grade, support condition and the chosen hardware.
Measure the finished opening
Record clear width, finished height and ground conditions at the actual gate location.
Choose hinge side
Confirm which side receives the hinges and whether the support is a wall, post or other approved structure.
Assemble square
Lay out the Heavy-Duty frame, connect corners and compare diagonals before locking the assembly.
Install T&G infill
Fit the black ALU60 tongue-and-groove boards and top-rail components according to the gate layout.
Hang and align
Install the heavy-duty hinges, set the gate plumb and confirm smooth movement through the entire swing path.
Set closure hardware
Finalize latch, lock, stopper and clearances only after the gate hangs correctly and operates without binding.
Ready to order the black single-swing gate?
Use the direct product checkout only when the size, hinge side, support condition and installation plan are already confirmed. Otherwise send the opening information first.
Buy this 4×6 gate Review the opening firstALU60 Contractor Line assembly sequence.
Use the actual packaged parts, project drawings and site conditions as the controlling installation information for the ALU60 T&G Heavy-Duty gate.
Preparation
Inventory the ALU60 T&G infill, Heavy-Duty frame stock, corner hardware, hinges, stopper, top rail and fasteners before cutting.
Frame layout
Lay out the 4″ Heavy-Duty frame components on a flat surface and confirm final cut dimensions from the opening plan.
Frame assembly
Connect the frame using the specified internal corner hardware, then verify squareness using diagonal measurements.
T&G installation
Install the black ALU60 tongue-and-groove infill in sequence so the joints fully engage and the privacy face remains consistent.
Hinge installation
Mount the 5″ Heavy-Duty hinges to the gate and approved hinge-side support while maintaining the required operating clearances.
Final adjustment
Set the stopper, latch and lock hardware, then check plumb, level, swing, closing alignment and all fasteners.
ALU60 T&G Black 4×6 Heavy-Duty gate questions.
What makes this gate different from the Universal DIY ALU60 gate?
This product is the Heavy-Duty Contractor Line version. It uses Heavy-Duty gate framing and project-specific mounting/support planning rather than the Universal DIY wall-to-wall frame approach.Is the ALU60 T&G gate a no-gap privacy gate?
Yes. The ALU60 tongue-and-groove infill interlocks to create a continuous privacy face without the intentional spacing used in open slat gate systems.What material is the gate made from?
The gate system uses 6063-T6 architectural aluminum with black ALU60 T&G infill and an AAMA 2604 architectural powder-coated finish.Can the 4×6 gate be automated?
Automation should be reviewed separately. A Heavy-Duty frame does not by itself confirm motor compatibility. Hinge geometry, support structure, operator selection, safety devices, electrical work and local requirements all need to be evaluated.Which post size should I use?
Available post families include 2″, 2.75″ and 2″×3″ aluminum options. The correct support depends on the mounting condition, gate layout and project requirements, so confirm the support before ordering or drilling.What tools are typically needed for field assembly?
Typical gate assembly requires accurate measuring tools, a level, square, drill/driver, appropriate bits, wrenches and cutting equipment suitable for aluminum where field cutting is required. Follow the actual parts and installation plan for the project.Does the black aluminum gate require painting or staining?
No routine staining is required. The aluminum uses an architectural powder-coated finish. Clean with methods appropriate for powder-coated aluminum and avoid abrasive or chemically aggressive cleaners.Can Aluglobus help confirm the gate before I order?
Yes. Send the finished opening dimensions, photos, hinge-side support condition, swing direction, latch or lock requirement and project location so the configuration can be reviewed before purchase.Confirm the opening before cutting a Heavy-Duty gate frame.
For the cleanest installation, gather the site information that controls the gate before material is cut, drilled or mounted.
01Finished opening width + height 02Hinge side + support condition 03Swing direction + clearance 04Latch / lock requirement 05Photos from both sides 06Project city + state
