Aluglobus Aluminum Systems

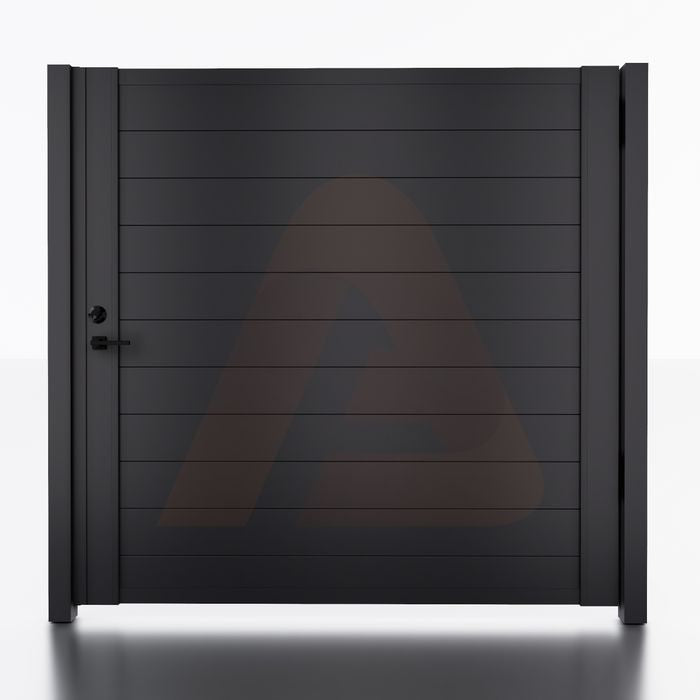

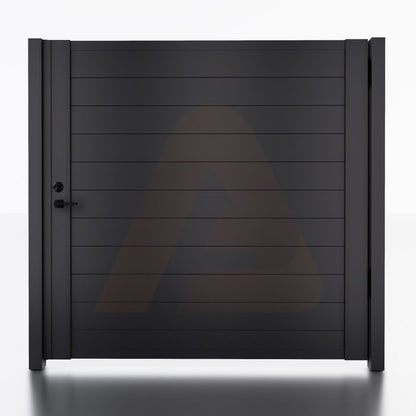

(Box) Alu 60 T&G 6x6 ft. DIY Pedestrian Gate Kit - Single swing - No Gap
(Box) Alu 60 T&G 6x6 ft. DIY Pedestrian Gate Kit - Single swing - No Gap
A boxed 6x6 aluminum privacy gate kit: the DIY 6' x 6' frame kit with 11 interlocking ALU 60 tongue-and-groove slats cut to 62in. and 7/8 plugs, for a single-swing gate with a solid face.
- Aluminum 6063-T6
- AAMA 2604 super-durable powder coating
- Black, Bronze, White (listed as coming soon)
Coming soon — please confirm availability with us before ordering.
Couldn't load pickup availability
A boxed 6x6 aluminum privacy gate kit: the DIY 6' x 6' frame kit with 11 interlocking ALU 60 tongue-and-groove slats cut to 62in. and 7/8 plugs, for a single-swing gate with a solid face.
Full-width privacy in a 6x6 aluminum privacy gate kit
A 6 ft opening leaves plenty of room to move equipment through, but it also leaves a large view into your yard when the gate is gapped. This 6×6 aluminum privacy gate kit closes that view with ALU 60 tongue-and-groove slats that interlock edge to edge. It comes boxed with the 6' x 6' DIY frame kit, 11 slats cut to 62in. and the 7/8 plugs, ready for a single-swing pedestrian gate.
All parts are 6063-T6 aluminum with AAMA 2604 super-durable powder coating, so the gate keeps its colour and shape without the sealing and repainting a wood privacy gate needs.
ALU 60 T&G black pedestrian gate project
Box contents
| Gate frame | (NEW) DIY Only Gate Frame Kit 6' x 6' |
|---|---|
| Slats | (Gate Slat Box for 6ft x 6ft) ALU 60 Slat 0.047 Wall – 11pcs (62in.) |
| Plugs | 7/8 Plug |
| Posts and latch | Ordered separately |
The 6' x 6' frame kit is listed with a vertical gate frame, vertical gate frame cap, top and bottom horizontal gate frame, 2 heavy duty hinges and a gate stopper, and is compatible with the Universal Slat Adapter.
Why choose tongue and groove for a wide gate
Each 6-inch ALU 60 T&G slat locks into the one below, so 11 slats fill the frame with no visible seams to see through. On a wide gate that makes a noticeable difference: the surface reads as one calm plane that matches T&G horizontal fencing. Typical uses include:
- Side-yard gates that hide bins, AC units or pool equipment
- Courtyard and patio entrances where privacy matters
- Replacing a worn wood privacy gate with a low-maintenance one
Because the slats arrive pre-cut to 62in. for the 6' x 6' frame, you skip measuring and cutting long profiles on site. The 0.047 wall slats and the 7/8 plugs come in the same finish as the frame, so the gate looks uniform once assembled. Compared with a wood privacy gate of the same size, there is no sealing schedule to keep, and the boards will not cup or split as seasons change.
Fencing the rest of the run? The aluminum fence range includes ALU 60 T&G fence kits in the same profile.
Choosing posts
Posts are sold separately. The five options listed for this kit are:
- Hinge Post + L-Side Post – wall-to-wall installation
- 3.15 Post – wall and concrete footing
- 2-way post – wall mount only
- 3in HD Post – concrete footing
- 4in HD Post – standalone post
A solid 6 ft gate is the most demanding case in this family, because a closed face takes more wind load than a gapped one. For wall-to-wall openings, use the 2x2in Hinge Post & L-Side Post Kit. For in-ground installs, compare the 3in HD post for concrete footing with the 4×4 in. HD square post for a standalone post, and confirm the right choice with our team if your site is exposed.
Colours and availability

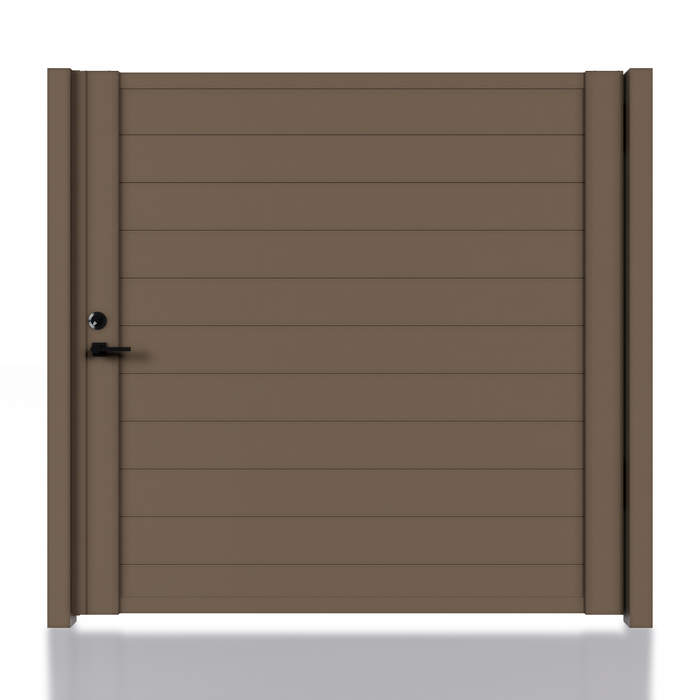

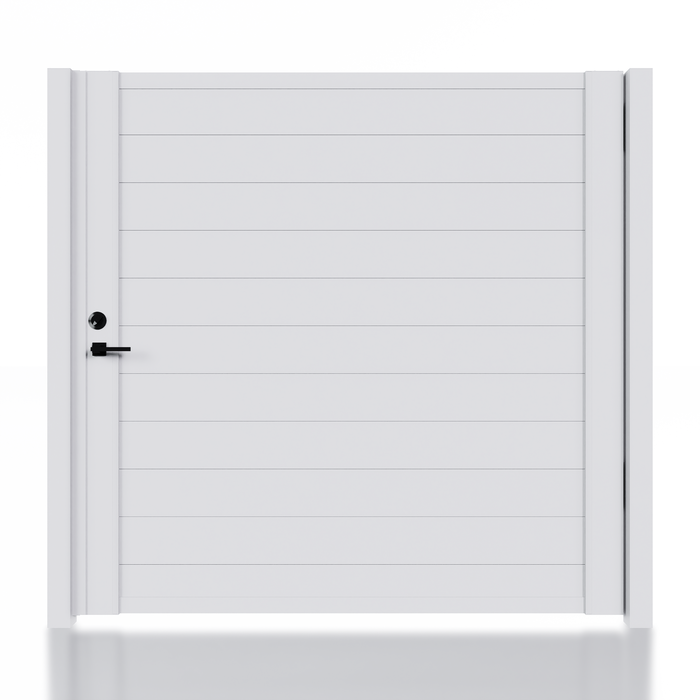

This kit is listed in Black, Bronze and White, and all three are currently marked coming soon. Please confirm availability with our team before ordering. For a warmer look, see the Alu 60 T&G wood-look 6×6 gate kit.
ALU 60 T&G black pedestrian gate project
Before installation
Measure the finished opening and allow for your posts, check local code for gate requirements, and follow the included instructions during assembly. Leave room for the gate to swing: a 6 ft leaf sweeps a wide arc, so clear any steps, planters or slopes from its path. Latch hardware is not in the box, so choose it at the same time as your posts.
If your opening does not match the 6 ft x 6 ft kit size, or you are weighing one wide gate against two smaller ones, send your measurements to our team.
Material & finish
What it is made of
(Box) Alu 60 T&G 6×6 ft. DIY Pedestrian Gate Kit – Single swing – No Gap is made from aluminum 6063-t6, finished with AAMA 2604 super-durable powder coating.
6063-T6 is an architectural aluminum alloy made for extruded profiles. It gives clean, consistent shapes and takes a powder coating evenly, which is why it is widely used for fences, gates and other exterior building products.
AAMA 2604 is the American Architectural Manufacturers Association specification for high-performance organic coatings, powder coatings included, on aluminum extrusions. It sets test requirements for outdoor color and gloss retention, chalking and corrosion resistance.
Where it is used
Where this part goes
Listed use: Pedestrian gates.
Ordering
Ordering tips
- Color options: Black, Bronze, White.
- Posts: not included – 5 post options.
- Marked coming soon: confirm availability before ordering.
