Factory Direct Motorized Aluminum Louver Roof System
Cantilever Aluminum Patio Cover Kit - Automatic Louver
A premium cantilever aluminum patio cover kit built with an automatic motorized louver roof for adjustable shade, airflow, sunlight control, and cleaner open-space patio design. Designed for homeowners, contractors, designers, restaurants, hospitality patios, and modern outdoor living projects that need a high-end adjustable roof with fewer front-post interruptions.
Request Final Quote View Package Options Automatic Louver Roof Motorized Shade Control Engineering Required Contractor PricingChoose Your Starting Package
These cantilever packages are for the automatic louver roof version only. Final pricing depends on size, projection, load, attachment, post placement, louver layout, motor package, electrical planning, engineering, freight, installation, permits, and project-specific requirements.
Starter Package
Starting at $7,580.00

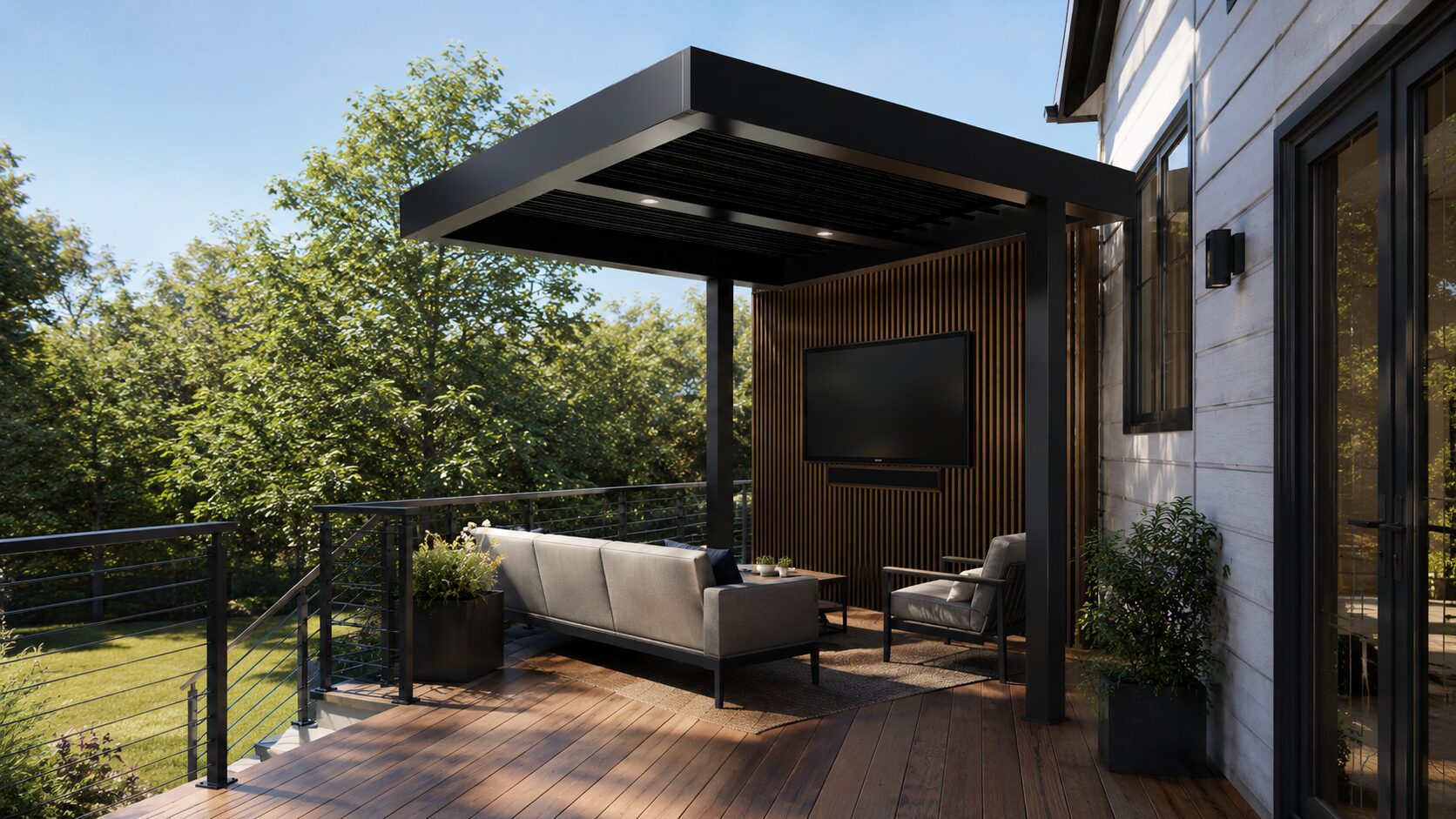

10 x 10 ft. Pergola
[ar-display id=58738]
Best for smaller patios, BBQ areas, compact seating zones, and entry-level motorized cantilever louver projects.
8x10 10x10 10x12- Automatic motorized louver roof package
- Cantilever aluminum support layout
- Reduced front-post interruption
- Engineering review required
Standard Package
Starting at $17,170.00

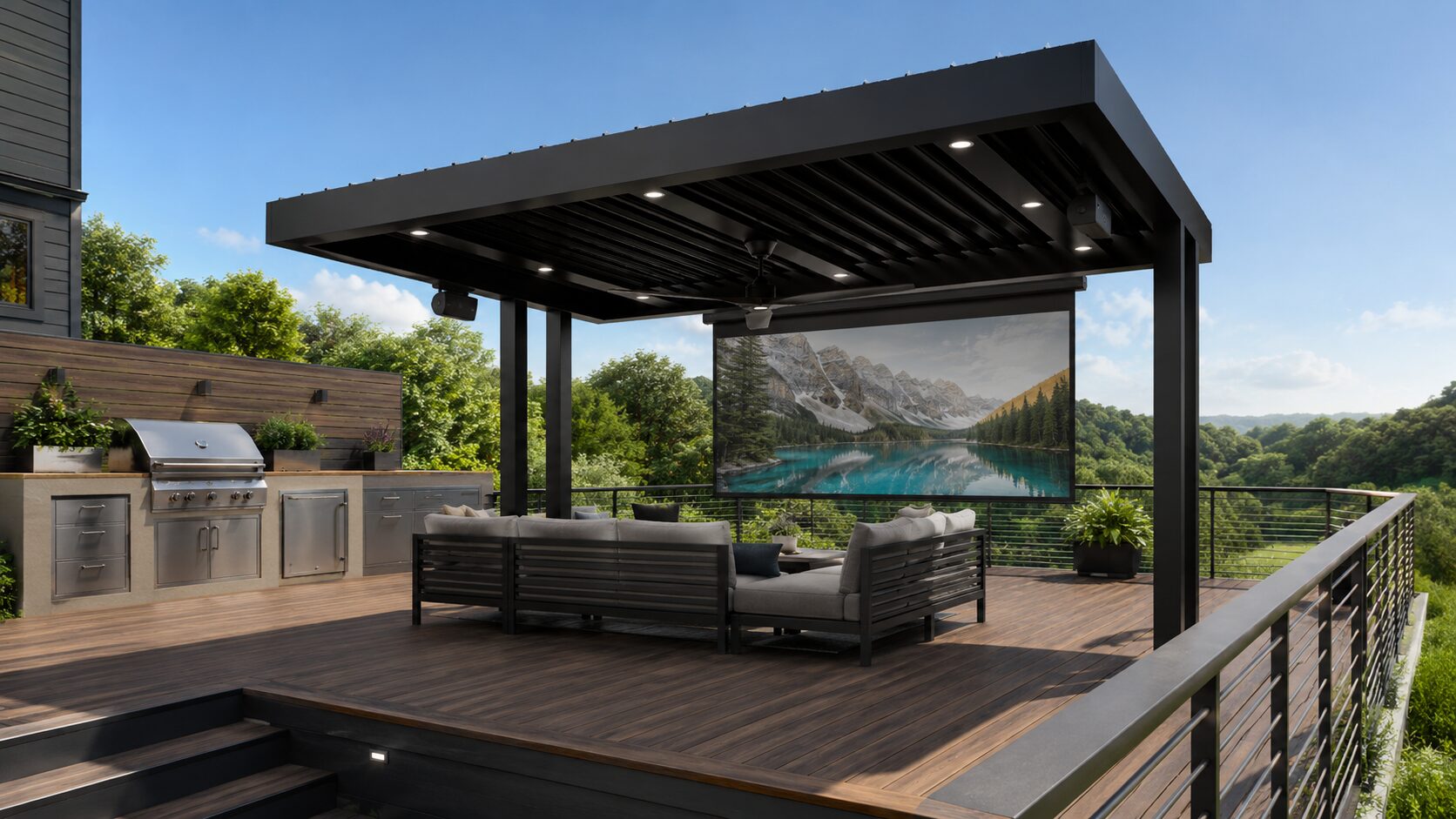

12 x 16 ft. Pergola
[ar-display id=58739]
Best for outdoor kitchens, poolside lounge zones, fire-pit seating, and larger residential patios that need adjustable shade control.
12x12 12x16 12x20- Expanded automatic louver roof layout
- Motor, transformer, and remote-control package
- Load, span, and attachment planning
- Contractor pricing available
Large Package
Starting at $22,370.00

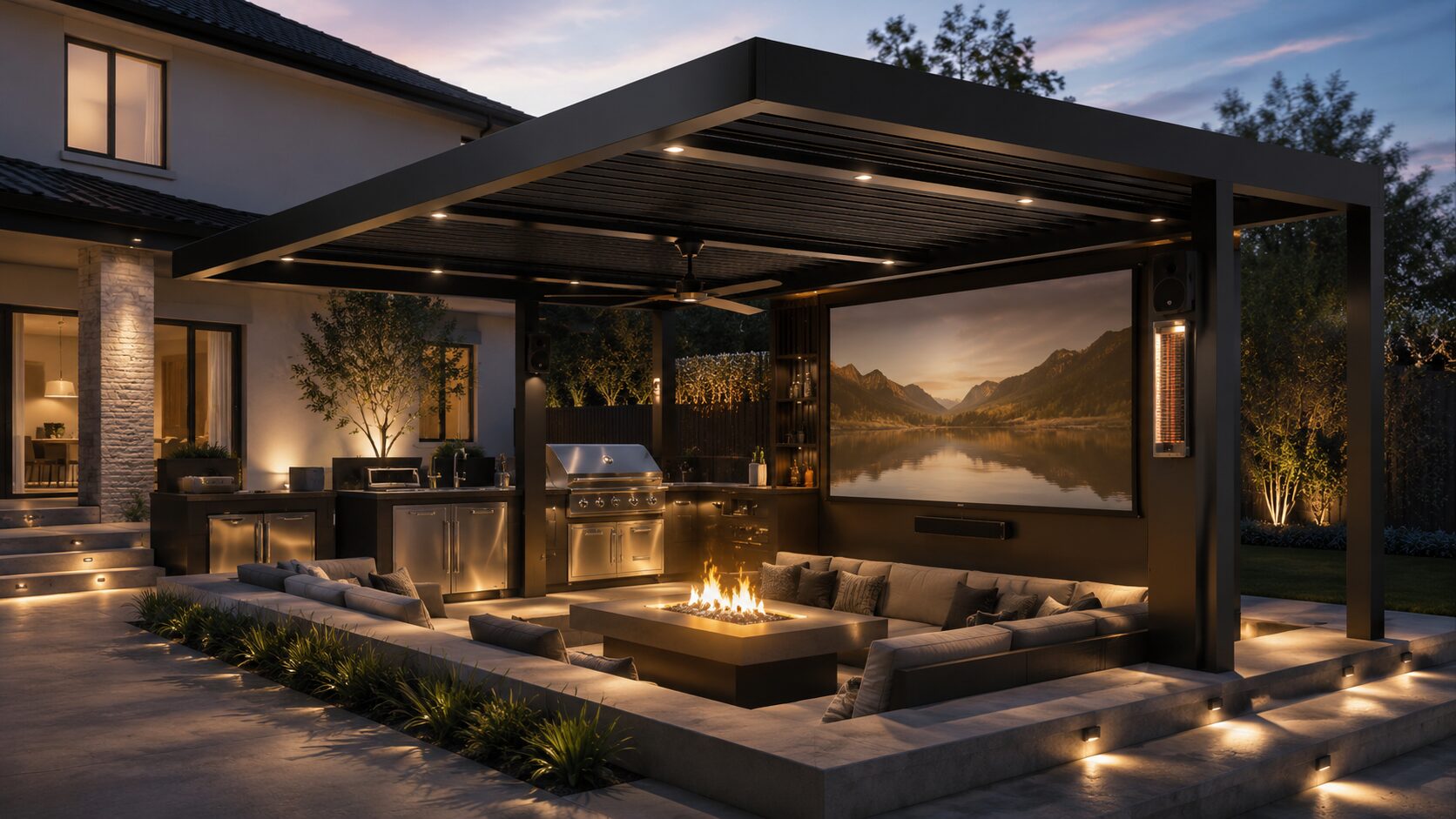

16 x 20 ft. Pergola
[ar-display id=58740]
Best for large outdoor living areas, restaurants, hospitality patios, rooftop decks, and premium backyard spaces.
16x16 16x20 20x20- Large-span cantilever automatic louver system
- Site-specific engineering required
- Project-specific post and beam layout
- Builder and commercial pricing available
Adjustable Shade Control With Fewer Front Posts.
This cantilever aluminum patio cover kit is designed around an automatic motorized louver roof. The goal is simple: give the customer control over sun, shade, airflow, and rain management while keeping the front side of the patio more open and usable.
It is ideal for outdoor kitchens, poolside lounge zones, fire-pit seating, restaurants, hospitality patios, and modern homes where the customer wants a premium adjustable roof system without placing posts directly at the front edge of the patio.
Automatic louver roof Remote-control operation No front posts Site-specific engineering Residential and commercial use Contractor-friendly supply support
Built for Sun Control, Airflow, and Premium Outdoor Living.
This page is focused only on the cantilever automatic louver roof kit. The motorized louver system lets the patio switch between open-sky airflow, filtered shade, and closed roof coverage depending on the weather and the project layout.
Motorized Louvers
Adjust the roof blades for shade, sunlight, airflow, or closed coverage.
Remote-Control Operation
Premium motorized control package for high-end patios and commercial outdoor spaces.
8 Inch Blade System
Large aluminum louver blades create a cleaner architectural look and better coverage.
Cantilever Layout
Designed to reduce front-post interruption and keep furniture layouts more open.
Drainage Planning
Project review can include gutter planning, roof direction, water management, and attachment conditions.
Lighting Ready
LED strips, recessed lights, beam lighting, and electrical pathways can be reviewed by project.
Cantilever Automatic Louver Gallery
Show customers motorized louver layouts, no-front-post coverage, adjustable roof control, and wide-span cantilever examples.
Main Parts, Louver Roof Package, and Accessories
Use this section to help contractors and serious buyers understand the motorized louver material package before requesting a quote.
Main Parts Sizes
| Name | Size |
|---|---|
| 6 in. x 6 in. Post | 6' x 6' x 10'/12'/14' |
| 6 in. Post Inner Base Plate | 5-3/4" x 5-3/4" |
| 7 in. x 7 in. Post | 7' x 7' x 10'/12'/14' |
| 8 in. x 8 in. Post | 8' x 8' x 10'/12'/14' |
| 7 in. Post Inner Base Plate | 6-1/2" x 6-1/2" |
| 3 in. U-Channel | 2.125" x 3.147" |
| 2 in. x 8 in. Beam | 2" x 8" x 16'/20'/24' |
| 2 in. x 10 in. Beam | 2" x 10" x 16'/20'/24' |
| Cantilever Engineering | Project-specific |
Automatic Louver Roof Package
8 Inch Aluminum Louver Blade Large architectural blade system for adjustable sun, shade, airflow, and closed roof coverage. Motorized Operation Motor, motor bracket, transformer, and multi-channel remote package for automatic roof control. Louver Hardware Pivot bars, link bars, pins, washers, starlocks, and roof hardware planned by project size. Weather and Drainage Planning 360 degree weather strip, gutter planning, water direction, and attachment review based on layout.Optional Accessories
- Rain sensor planning
- App-control planning
- LED Channel
- LED Strip Lights
- LED Recessed Lights
- Ceiling Fan Planning
- Beam for LED Recessed Lights
- Custom color powder coating
- Gutter and drainage planning
- Engineering and attachment review
Send the Project Details. We Help Build the Louver Package.
01Choose Package Level
Select Starter, Standard, or Large based on the closest project size.
02Confirm Louver Layout
Review louver direction, motor location, roof drainage, control package, and electrical planning.
03Review Engineering Needs
Cantilever layouts must be reviewed for projection, span, load, attachment, wind, post placement, and site conditions.
04Get Final Package Pricing
Receive a quote based on material, louver package, engineering, freight, installation needs, and project requirements.
Cantilever Automatic Louver Patio Cover Video
Use this video section to show customers how a cantilever automatic louver patio cover creates adjustable shade while keeping the front of the patio more open and usable.
Get Factory-Direct PricingCantilever Automatic Louver Patio Cover Kit FAQs
The automatic louver roof can open and close, giving the user control over sunlight, shade, airflow, and roof coverage. A solid roof is fixed, while the louver system is adjustable and motorized.
Yes. Cantilever layouts should be reviewed for span, projection, load, attachment, wind conditions, post placement, louver direction, drainage, motor location, and site-specific requirements.
A cantilever layout helps keep the front edge more open, while the automatic louver roof adds premium shade control. This is useful for outdoor kitchens, lounge areas, restaurants, poolside seating, and spaces where furniture layout or views matter.
Yes. LED strips, recessed lights, rain sensor planning, app-control planning, ceiling fan planning, and custom powder coating can be reviewed based on the project layout and electrical requirements.
Yes. Contractors, builders, designers, and project teams can request factory-direct package pricing based on project scope, louver layout, engineering needs, and material volume.
Ready to Price a Cantilever Automatic Louver Patio Cover Kit?
Send your size, city, project photos, desired projection, attachment style, louver direction, motor location, electrical needs, and whether you need installation. We will help prepare the right factory-direct cantilever automatic louver package.
