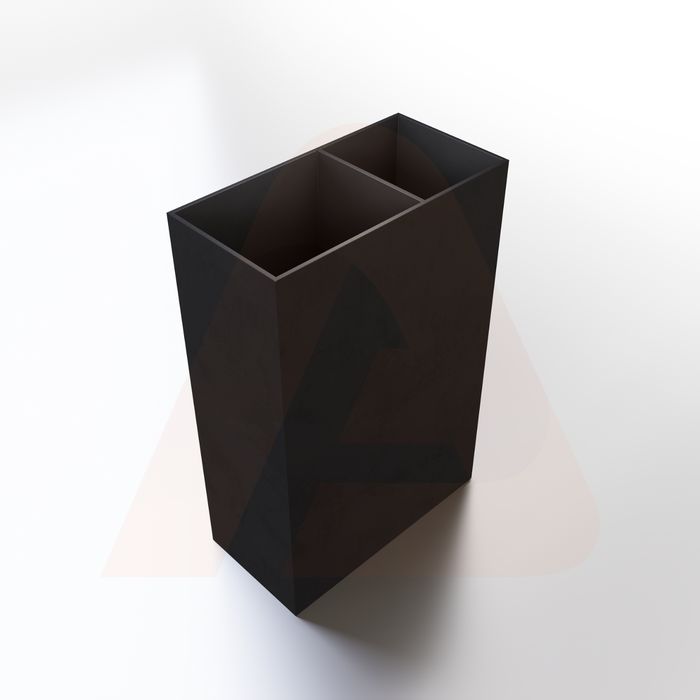

2x4 in. x 12 ft. HD Aluminum Gate Frame (.090 walls) - Black
2x4 in. x 12 ft. HD Aluminum Gate Frame (.090 walls) - Black
A 12 ft length of 2x4 in. dual wall HD aluminum gate frame with .090 walls, powder coated black. Use it to build or repair heavy duty pedestrian and sliding gates.
- Aluminum 6063-T6
- AAMA 2604 Super-Durable Powder Coating
- Black
Couldn't load pickup availability
A 12 ft length of 2x4 in. dual wall HD aluminum gate frame with .090 walls, powder coated black. Use it to build or repair heavy duty pedestrian and sliding gates.
12 ft 2x4 aluminum gate frame, .090 dual wall
This is a 12 ft length of the 2×4 in. dual wall HD aluminum gate frame used in heavy duty gates from Aluglobus Aluminum Systems. This 12 ft 2×4 aluminum gate frame has .090 walls, is extruded from 6063-T6 aluminum and is finished in black AAMA 2604 super-durable powder coating.
Order it as a stand-alone profile when you are fabricating a custom heavy duty gate, adding a frame member to an existing HD gate, or replacing a damaged section.
Where this profile fits in the HD gate system
The same 2×4 in. HD frame is the backbone of our heavy duty gates. In the price list, each heavy duty sliding gate package pairs 20 ft lengths of 2in x 4in HD frame with one 2in x 4in x 12ft HD frame, joined with big and small corner brackets and fitted with channel kits and slats. The HD pedestrian gate frame kits are built on the same 2×4 in. frame.
Choosing a length and wall
- 12 ft, .090 walls – this listing; the shorter member for sliding gate frames and smaller builds.
- 2×4 in. x 20 ft HD aluminum gate frame (.090 walls) – the main frame length in HD sliding gate packages and HD pedestrian frame kits.
- 2×4 in. x 24 ft HD aluminum gate frame (.125 walls) – longest length with thicker walls.
Work out your cut list from the actual opening before ordering, and confirm with our team if you are designing a gate size we do not list.
Hardware to go with it
Corners on HD frames are joined with the HD L big bracket and HD L small bracket. The #14×2 in. black stainless steel screws are listed as the fastener for HD aluminum gate frames. If you would rather start from a complete frame, see the HD 4 ft x 6 ft aluminum gate frame kit.
Material & finish
What it is made of
2×4 in. x 12 ft. HD Aluminum Gate Frame (.090 walls) – Black is made from aluminum 6063-t6, finished with AAMA 2604 Super-Durable Powder Coating in black.
6063-T6 is an architectural aluminum alloy made for extruded profiles. It gives clean, consistent shapes and takes a powder coating evenly, which is why it is widely used for fences, gates and other exterior building products.
AAMA 2604 is the American Architectural Manufacturers Association specification for high-performance organic coatings, powder coatings included, on aluminum extrusions. It sets test requirements for outdoor color and gloss retention, chalking and corrosion resistance.
