(Box) 2x2in Hinge Post 8 ft (Wall Installation Only)
(Box) 2x2in Hinge Post 8 ft (Wall Installation Only)
The longer 2x2in hinge post: 8 ft, boxed for wall installation only, with post cap and screws, baseplate with 3/8" x 3" anchor bolt or hex head wood screw, baseplate screws and striker plates.
- Aluminum 6063-T6
- AAMA 2604 super-durable powder coating – Black
- 2x2in, 8 ft
Couldn't load pickup availability
The longer 2x2in hinge post: 8 ft, boxed for wall installation only, with post cap and screws, baseplate with 3/8" x 3" anchor bolt or hex head wood screw, baseplate screws and striker plates.
8 ft aluminum gate hinge post, wall installation only
When a 6 ft post is too short for your gate or the wall it mounts to, this 8 ft aluminum gate hinge post adds the extra length on the hinge side. It is a 2x2in post listed for wall installation only and for use as a pedestrian gate post, made from 6063-T6 aluminum with AAMA 2604 super-durable powder coating in black.

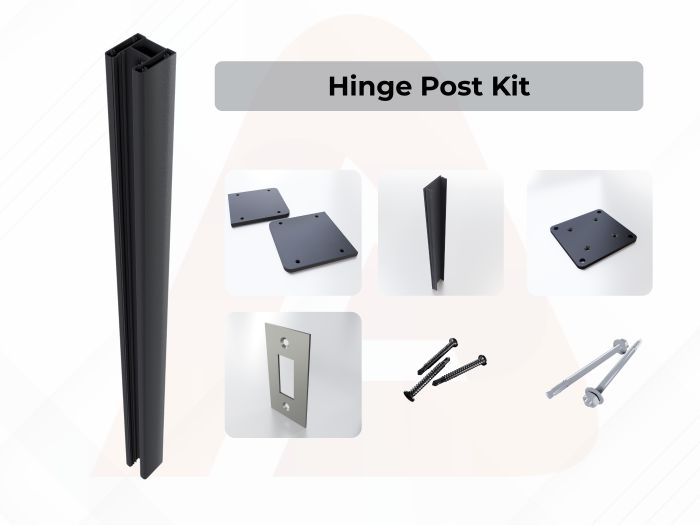

What's included
| Post cap | Post Cap with screws |
|---|---|
| Baseplate | Baseplate with 3/8" x 3" Anchor Bolt or 3/8 x 3" Hex Head Wood screw |
| Baseplate fixings | Baseplate Screws to Post |
| Strike hardware | Striker Plates with screws & Brackets |
Choosing between 6 ft and 8 ft
The only listed difference between this post and the 6 ft hinge post is length. Pick the length that suits your gate height and how the post will sit against the wall. The listed L-Side Post is 6 ft, so if you want both sides of the opening to match at 8 ft, confirm options with our team before ordering.
When the longer post makes sense
An 8 ft hinge post suits situations where the wall rises above the gate and you want the post to run further along it, or where the gate itself calls for a longer hinge side. The extra length gives more of the post to fix against the wall. It carries the same kit contents as the shorter version, including the cap, baseplate and striker hardware, so no extra fixings are needed to install it.
The aluminum construction resists rot and rust, which is useful against masonry walls that stay damp after rain. The black powder coating matches our black gate frames and hardware.
Installation notes
- Fix only to a wall; this post is not listed for concrete footing.
- Use the anchor bolt or wood screw option that suits the surface.
- Follow the included instructions and local code.
Not sure whether your project needs the 6 ft or the 8 ft post? Send the gate size and a photo of the wall to our team and we will help you choose. Browse all aluminum gates to find a gate kit that pairs with this post.
Material & finish
What it is made of
(Box) 2x2in Hinge Post 8 ft (Wall Installation Only) is made from aluminum 6063-t6, finished with AAMA 2604 super-durable powder coating – Black.
6063-T6 is an architectural aluminum alloy made for extruded profiles. It gives clean, consistent shapes and takes a powder coating evenly, which is why it is widely used for fences, gates and other exterior building products.
AAMA 2604 is the American Architectural Manufacturers Association specification for high-performance organic coatings, powder coatings included, on aluminum extrusions. It sets test requirements for outdoor color and gloss retention, chalking and corrosion resistance.
Where it is used
Where this part goes
Listed use: Pedestrian gates post.
